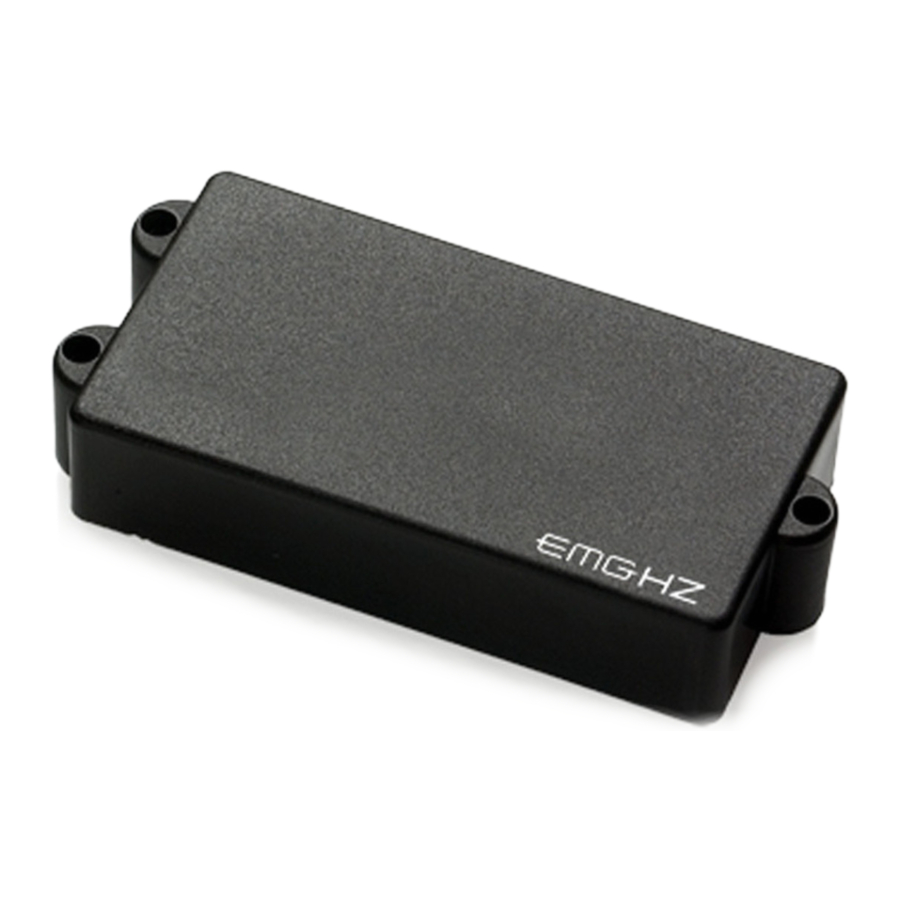

EMG HZ Series, MMHZ Manual

Specifications

Logo color: Silver
Inductance (Henries):2.65
DC Resistance (K ohms):8
Resonant Frequency HZ (1) 2850
Resonant Frequency HZ (2) 4900 Impedance @ Resonance 47.5K

Notes:

  1. Loaded with 250K/500K Volume and Tone with 20' cable (800pf)
  2. Loaded with 1 Meg ohm/47pf

Each pickup includes:
5 pin cable pre-wired in Humbucking Series format
Adjustment screws
Recommended String Width: 2.75 inches. The MMHZ is for 4 string basses only.
MMHZ bass pickups feature bar style construction.


Insert EMG 5-pin Quik Connect as shown.
Pinout (with Arrow as pin 1):
Green (pin 1)
White (pin 2)
Bare (pin 3)
Red (pin 4)
Black (pin 5)

EMG-MMHZ Diagram 1
Volume, 1 Tone
Diagram 1 - Volume, 1 Tone

EMG-MMHZ Diagram 2
2 Volume, 1 Tone
(each Volume is independent)
Diagram 2 - 2 Volume, 1 Tone
