EMG ALX SET Installation Information

INSTALLATION INFORMATION
EMG MODELS: ALX SET, F-ALX SET
(ALEXI LAIHO SIGNATURE GUITAR INSTALLATION)
SPECIFICATIONS:
Logo Color
Magnet Type *
Inductance (Henries) (1)
DC Resistance (kOhm)
Resonant Frequency (KHz)
*C/S (Ceramic/Steel)
(1) Wired in Series
Installation notes:
(Signature Model)

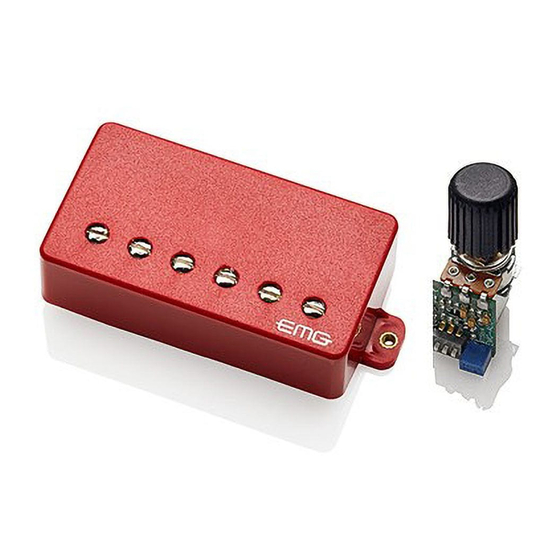

The EMG-ALX set includes either an ALX Pickup or the F-ALX (Floyd Rose Spacing) and the ABQ Preamp. The ALX/F-ALX Pickups are slightly overwound
humbucking pickups that feature a ceramic magnet for clarity. The ABQ Pre-amp has a Push-Pull Pot with an adjustable boost in the down position.
As an additonal feature the input of the ABQ Pre-amp has a 3-position dip switch that allows the resonance of the pickup to be altered to a variety
of fixed frequencies. There are two different instruction sets for the ALX Set. This set of instructions is for the Alexi Laiho Signature Model.
The alternate set of instructions is for guitars that are wired differently than the Signature Model or, that may have more than one pickup.
For further information go to http://www.emgpickups.com.
SPECIAL NOTE: The Red Wire of the HZ Pickup Cable is NOT for battery power, it is a coil wire.
EMG-ABQ PRE-AMP (Frequency Selection)
The 3-position dip switch allows you to change the resonant frequency at the input to the pre-amp.
The frequencies will be different if you use a passive pickup other than the ALX.
If you use an Active EMG Pickup the switches will not make any change.
1.29KHz
1.22KHz
OFF/ON/ON
ON/ON/ON
1.77KHz 2.00KHz
ON/ON/OFF OFF/ON/OFF
2.44KHz
3.33KHz
ON/OFF/OFF
OFF/OFF/OFF
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
warranty covers only those pickups and accessories sold by authorized EMG Dealers. This warranty is not transferable.
© 2010 Copyright EMG INC. All Rights Reserved.
MODEL:
ALX / F-ALX
Silver
C/S
4.53
8.40
See Below
Alexi's setting
1.38KHz
ON/OFF/ON
2.40KHz
OFF/OFF/ON
Resonant Frequency
Selection dip-switch
1.50
3/48 MOUNTING HOLES
ABQ Pre-Amp
Input Impedance (Kohm)
Input Noise
Maximum Gain
Output Impedance (Kohm)
Current @9V (Microamps)
Battery Life (Hours)
Maximum Supply (Volts DC)
Volume Control, Push-Pull Pot
Boost "on" in down Position
Boost "off" in up Position
Gain Trimmer
for Boost
2.75
.39 TYP (ALX)
.42 TYP (F-ALX)
3.08
.90
500
-148
20dB
2.00
195
1500
27
8MM P.75
.400
1.070
.700
1.070
