SMxxTAT4Xx Family
SM48TAT4XA-RP and SM24TAT4XB
Quick Start Guide

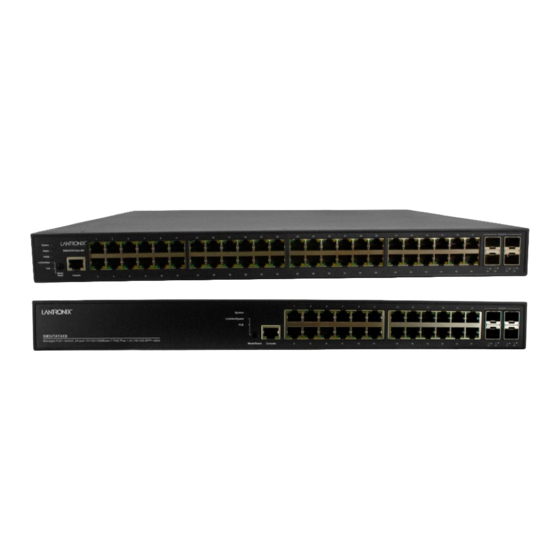

The Lantronix
SM48TAT4XA-RP
Redundant Power Supplies and 740 Watt PoE budget. The
with (4) 1G/10G SFP+ ports and 370 Watt PoE budget. Note: See the full Install Guide for important Safety
Warnings and Cautions, Ordering Information, Specifications, AC Power Connector, Electrical Safety Warnings,
Installation, Rack Mount Safety Instructions, Mounting, Troubleshooting, Compliance, Regulatory, and Warranty
information.

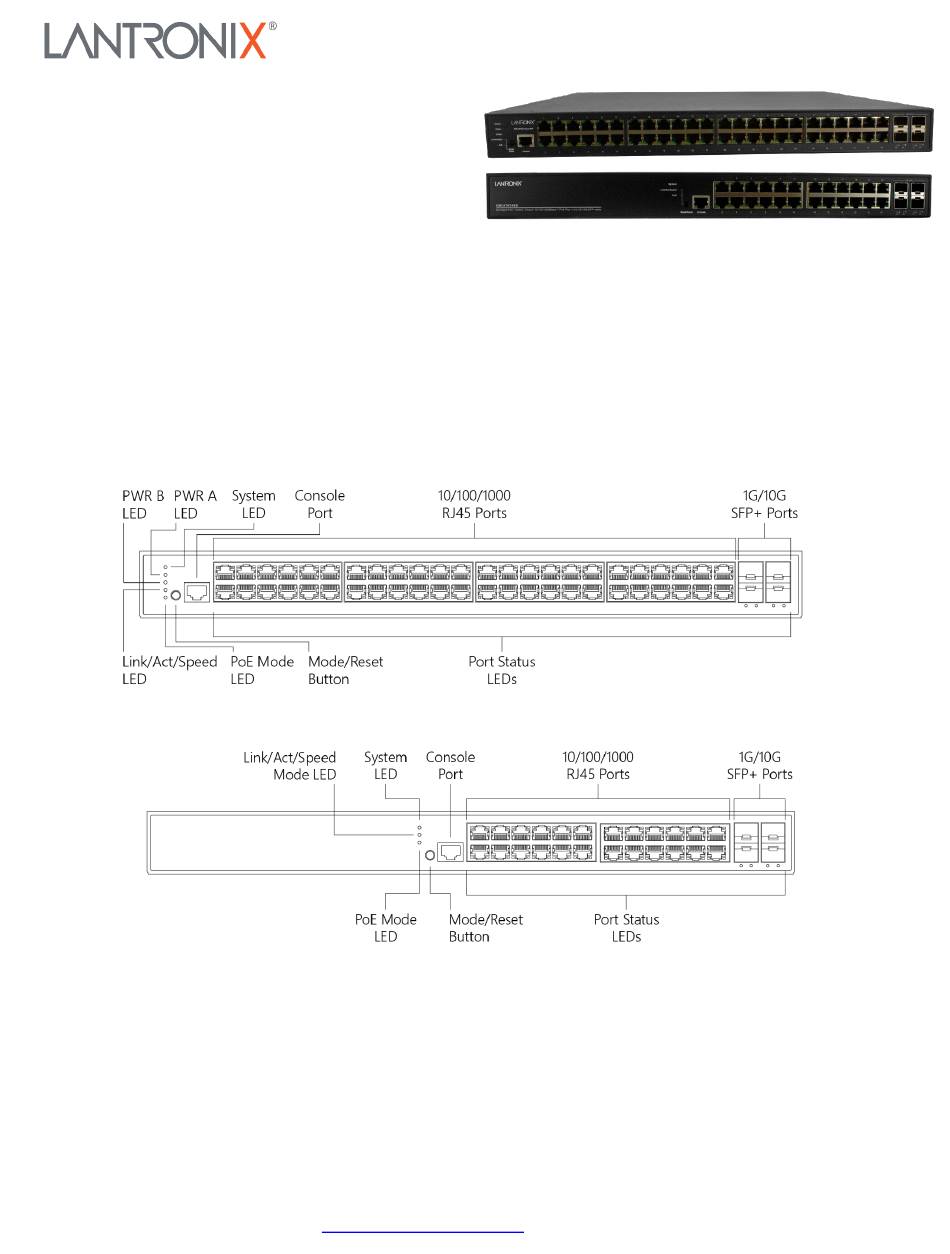

Front Panels
: The SM24TAT4XB and the SM48TAT4XA-RP front panel contain the Ports, LEDs, Console Port, and
Mode/Reset button as shown and described below.
SM48TAT4XA-RP front panel:
SM24TAT4XB front panel:
Console Port: The front panel Console port provides an RJ-45 Console port to connect to a PC or terminal for
Command Line Interface (CLI) command entry (e.g., a PC running Hyper Terminal, Tera Term, etc.).
10/100/1000 RJ45 Ports: The SM48TAT4XA-RP provides 48 10M/100M/1G (RJ45) front panel ports.
The SM24TAT4XB provides 24 10M/100M/1G (RJ45) front panel ports.
1G/10G SFP+ Ports: The SM48TAT4XA-RP and the SM24TAT4XB both provide four SFP+ uplink ports.
LED Descriptions
: The front panel LEDs allow switch status checking and monitoring. The four types of LEDs:
System LED: Indicates if the switch is powered up correctly or if there is a system alarm triggered for
troubleshooting.
33784 Rev. C
is an L2 Plus 48-port Gigabit PoE+ Switch and (4) 1G/10G SFP+ ports, with
https://www.lantronix.com/
SMxxTAT4Xx Quick Start Guide
SM24TAT4XB
is an L2 Plus 24-port Gigabit PoE+ Switch
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lantronix SM TAT4 Series
Summary of Contents for Lantronix SM TAT4 Series
- Page 1 SMxxTAT4Xx Quick Start Guide SMxxTAT4Xx Family SM48TAT4XA-RP and SM24TAT4XB Quick Start Guide The Lantronix SM48TAT4XA-RP is an L2 Plus 48-port Gigabit PoE+ Switch and (4) 1G/10G SFP+ ports, with Redundant Power Supplies and 740 Watt PoE budget. The SM24TAT4XB is an L2 Plus 24-port Gigabit PoE+ Switch with (4) 1G/10G SFP+ ports and 370 Watt PoE budget.
- Page 2 • SYS: Green Single Color Green • Use Mode / Reset Button to change Mode => Light off: Changed Port LED to Other Mode => Green Light on: Change Port LED to Link/Act/Speed Mode 33784 Rev. C https://www.lantronix.com/ Page 2 of 4...
- Page 3 3. Press firmly so that the SFP device is firmly seated. 4. Attach an appropriate cable into the SFP module port. 5. Attach the other end of the cable to the other device. 33784 Rev. C https://www.lantronix.com/ Page 3 of 4...
- Page 4 Sales Offices. © 2021 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. Patented: patents.lantronix.com; additional patents pending.
