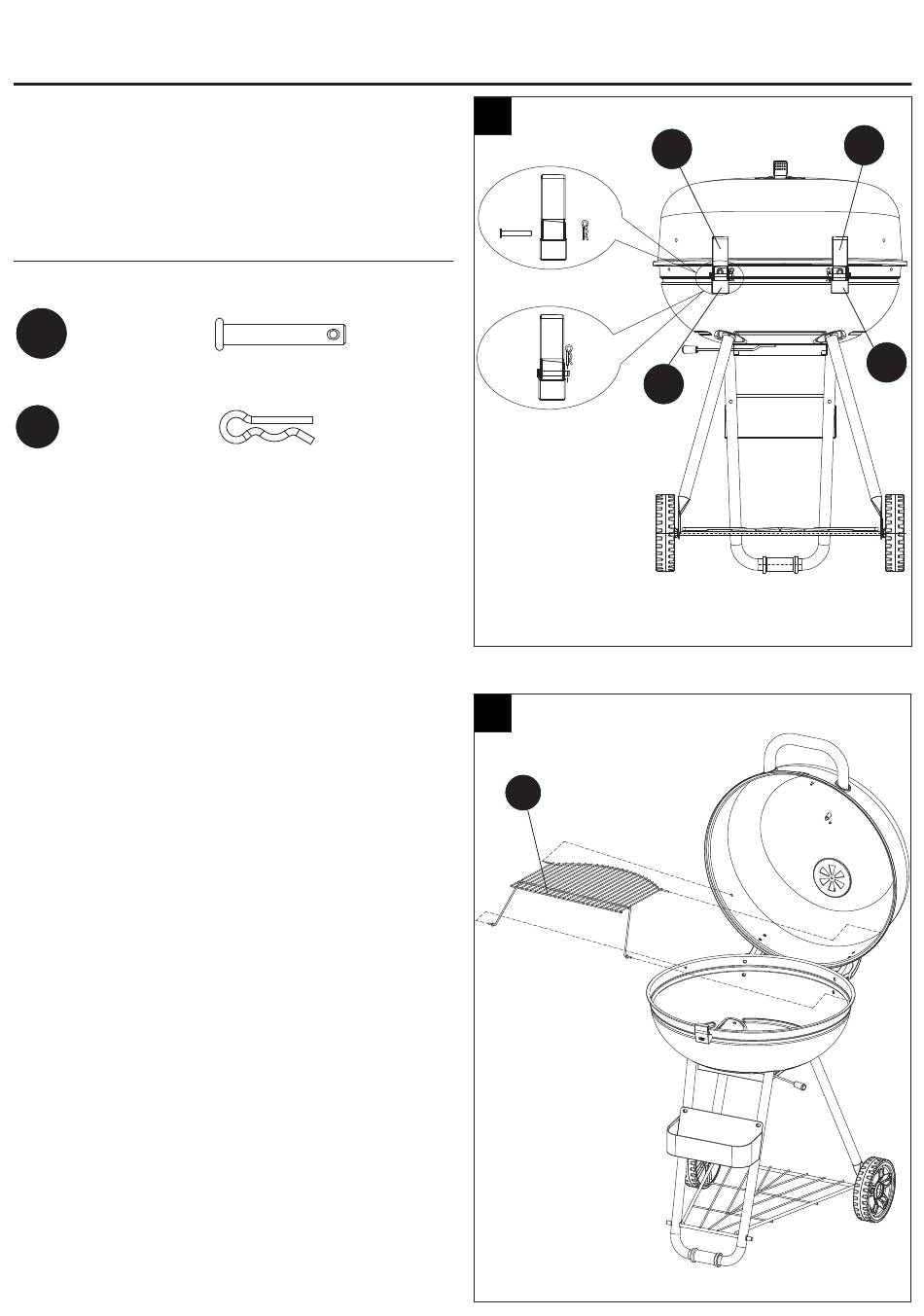

ASSEMBLY INSTRUCTIONS
Step 11: Place Lid onto Bottom Bowl
Align the holes in the left top hinge (C), right top
hinge (D), left bottom hinge (H) and right bottom
hinge (I). Then insert the Ø5x45 pins (MM) and
Ø1.4x38 cotter pins (NN).
Hardware Used
Ø5x45
MM
Pin
Ø1.4x38
NN
Cotter Pin
Step 12: Attach Warming Rack
Put the warming rack (J) into place.
11
x 2
x 2
12
J
11
D
I
C
H
