Master Forge RT2417S Manual

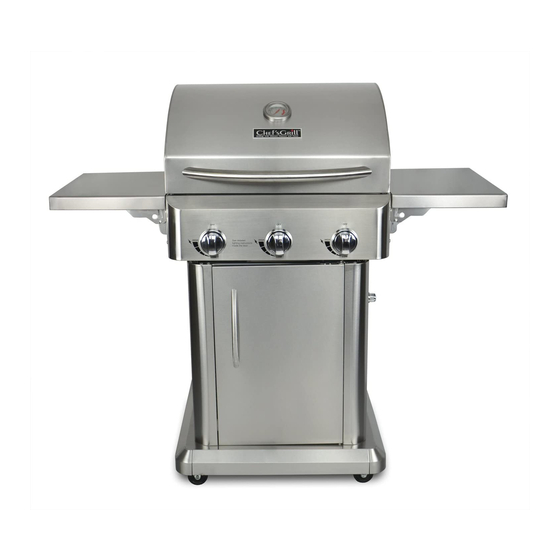

3-burner stainless steel grill
Hide thumbs Also See for RT2417S:

Advertisement

Quick Links

Master Forge & M Design
®
trademark of LF, LLC. All rights reserved.
WARNING
Improper installation,
adjustment, alteration, service
or maintenance can cause
injury or property damage.
Read this instruction manual
thoroughly before installing or
servicing this equipment.
WARNING
1. Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.
2. An LP tank not connected for
use should not be stored in the
vicinity of this or any other
appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flames.
3. Open the lid.
4. If the odor continues, keep
away from the appliance and
immediately call your gas
supplier or fire department.
WARNING
For Outdoor Use Only
ATTACH YOUR RECEIPT HERE
Serial Number _________________________
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-963-0211, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
AB13577
is a registered
3-BURNER STAINlESS STEEl gRIll
Purchase Date _________________________
1
ITEM #0503231
MODEL #RT2417S
Español p. 39
gAS-FIRED
C
MH 10297
Lowes.com/masterforge
US

Advertisement

loading
Need help?

Need help?

Do you have a question about the RT2417S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Master Forge RT2417S

Summary of Contents for Master Forge RT2417S

  • Page 1 ITEM #0503231 3-BURNER STAINlESS STEEl gRIll MODEL #RT2417S Master Forge & M Design is a registered ® trademark of LF, LLC. All rights reserved. Español p. 39 WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage.

  • Page 2: Table Of Contents

    TABlE OF CONTENTS Safety Information ......... . 3 Safety Tips .

  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-800-963-0211, 8:00 am to 6:00 pm, EST, Monday- Thursday, 8:00 a.m.
  • Page 4 SAFETY INFORMATION 15. The pressure regulator for LP-gas grill is set for 11-in. water column (WC). Natural gas grill provides a hose assembly which includes a quick-disconnect device, but no pressure regulator. The LP pressure regulator or the natural gas hose assembly must be used. Replacement pressure regulators and hose assemblies must be those specified in the parts list.

  • Page 5: Safety Tips

    SAFETY TIPS ● Never pull your grill. Always push it. ● Never move your grill while it is in operation or still hot. ● Always use a protected hand when cleaning the grid surface after the post-heating period an when closing the propane tank valve. ●...

  • Page 6: Package Contents

    PACkAgE CONTENTS Lowes.com/masterforge...
  • Page 7 PACkAgE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Burner Box Rear Panel Heat Tent Igniter Main Grid Right Panel Warming Rack Drip Tray Right Side Shelf Bottom Panel Bracket Right Side Shelf Locking Caster Left Side Shelf Caster Left Side Shelf Door Bracket Drip Tray Support...

  • Page 8: Hardware Contents

    HARDWARE CONTENTS 1/4-20 x 5/8 in. AA Battery 3/16-24 x 1/2 in. Screw qty. 1 Screw qty. 2 qty. 49 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

  • Page 9: Assembly Instructions

    ASSEMBlY INSTRUCTIONS WARNING: The grill should be assembled and placed on a flat, level suface. Compare the parts and hardware with the list and diagrams. Do not attempt assembly if any part is missing or damaged. 1. Attach the locking casters (Q) and the casters (R) to the bottom panel (P) using 12 screws (AA).
  • Page 10 ASSEMBlY INSTRUCTIONS 3. Attach the left panel (T) and right panel (N) to the bottom panel (P). For both the left and right panels, there are three screws for the rear panel (L) and four for the bottom panel. Insert the four bottom panel screws first. Hardware Used 3/16-24 x 1/2 in.
  • Page 11 ASSEMBlY INSTRUCTIONS 5. Slide the tank ring bracket (K) onto the end of the safety tank ring (J) as shown. Attach the tank ring bracket to the rear panel (L) with 2 screws (BB) as shown. Hardware Used 1/4 - 20x 5/8 in. Screw 6.
  • Page 12 ASSEMBlY INSTRUCTIONS 8. For the door (S), insert bottom hinge pin into hole on bottom panel (P). Push top hinge pin in the corner of the door to insert into hole in top corner of the right panel (N). Then, put the drip tray (O) onto the drip tray support (I).
  • Page 13 ASSEMBlY INSTRUCTIONS 10. Attach the left side shelf bracket (H) to the left of the burner box (A) and the right side shelf bracket (E) to the right of the burner box with 2 screws (AA) on each bracket. Hardware Used 3/16-24 x 1/2 in.
  • Page 14 ASSEMBlY INSTRUCTIONS 12. Hang the side shelves on the brackets and slowly rotate the side shelves. 13. Adjust the side shelves until they are aligned with the control box. Control box 14. Plug the main burner igniter wires into the sockets in the igniter. Igniter wires Lowes.com/masterforge...
  • Page 15 ASSEMBlY INSTRUCTIONS 15. Place the heat tents (B), main grids (C) and warming rack (D) into the burner box (A). Remove the battery cap on the igniter (M) and insert a AA battery (CC) with the positive end facing outward. Replace the cap. Insert AA battery Lowes.com/masterforge...
  • Page 16 Minimum clearance from sides and back of unit to combustible construction, NC, 28659 USA 36 inches from sides and 36 inches from back. Model No.: RT2417S Do not use this appliance under overhead combustible surfaces. Type of Gas:Propane(Convertable to This outdoor cooking gas appliance is not intended to be installed in or on Natural Gas) recreational vehicles and / or boats.

  • Page 17: Natural Gas Conversion Instructions

    NG Conversion Kit Item #0050772. The #0050772 kit contains orifices for various grill models. Please select the orifices as listed and discard the rest. Follow the conversion instruction RT2417S 0503231 provided with the kit. Main Burner Conversion 16. Pull off the R-pins and take the main...
  • Page 18 NATURAl gAS CONVERSION INSTRUCTIONS 18. Remove the LP orifices first with the orifice removal tool, then install the NG orifice. Make sure you are using the correct orifice, marked “1.37”. When this step completed, install the main 1.37 burners back to the firebox and secure to the bracket with the R-pins.

  • Page 19: Cooking With Gas

    COOkINg WITH gAS For Portable lP-gas Connection The cabinet has an opening in the bottom panel that allows a 20 lb. gas tank bottom flange to drop into place (tank sold separately). This will help to lock the tank in place. Before installing your gas tank, lift up the safety tank ring (as shown in Fig.
  • Page 20 COOkINg WITH gAS a. Hand Assembly: 1. Make certain the tank valve and all the appliance valves are in the “OFF” position. 2. When connecting the regulator/burner valve assembly to the tank valve, turn the large plastic nut clockwise until it stops. 3.
