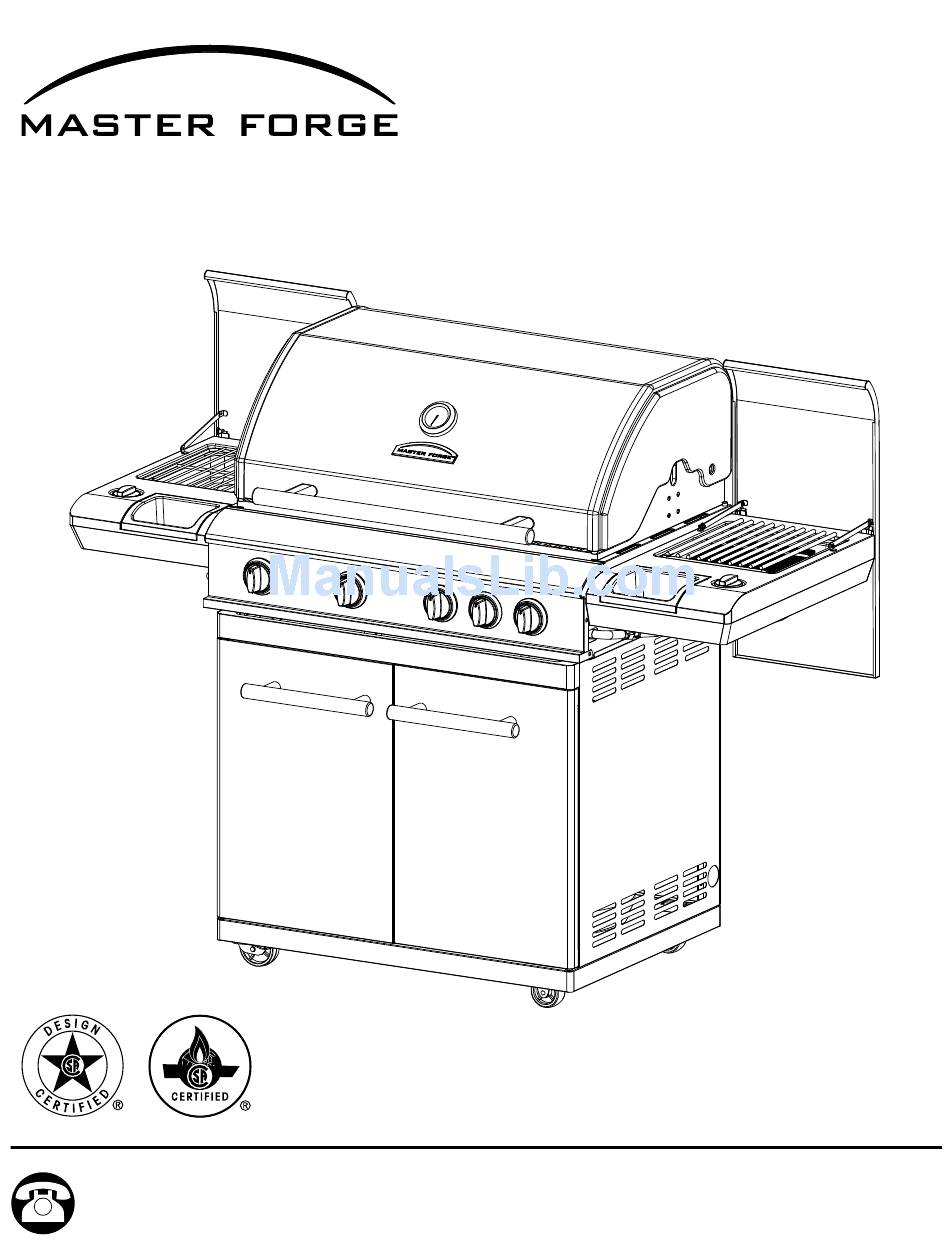

- Page 1 ITEM # 296451 4-Burner LP Gas Grill with Rotisserie Burner MODEL # GGP-2601 version 2.0 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-869-5300, 8 a.m.-6 p.m., EST, Monday-Friday.
- Page 2 DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open Lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department. WARNING 1.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information ........................Package Contents ........................Illustrated Parts List ........................Hardware Contents ........................Preparation ..........................Assembly Instructions ........................ Operation Instructions ....................... Care and Maintenance ......................Troubleshooting ......................... Warranty ............................ Replacement Parts List ...................... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-866-869-5300, 8 a.m.-6 p.m., EST, Monday-Friday. 1. DO NOT store or use gasoline or any other flammable vapors and liquids within 25 feet (8 m) of this or any other appliance. - Page 5 20. This grill is for outside use only, and should not be used in a building, garage, under overhangs or any other enclosed area. 21. The use of alcohol, prescription or non-prescription drugs may impair the operator's ability to properly assemble or safely operate the grill. 22.
-
Page 6: Package Contents
PACKAGE CONTENTS Description Quantity Description Quantity Part Part right side cabinet panel side knob left side cabinet panel drip pan bottom cabinet panel condiment box back cabinet panel grease collection pan heat shield front top beam cooking grate steel wire warming rack left door door handle... -
Page 7: Illustrated Parts List
ILLUSTRATED PARTS LIST Right side cabinet panel Left side cabinet panel Bottom cabinet panel Assembly Back cabinet panel Front top beam Steel wire Left door Door handle Right door Grill housing assembly Left side table assembly Right side table assembly Side knob Drip pan Condiment box... - Page 8 ILLUSTRATED PARTS LIST Grease collection pan Heat shield Cooking grate Tank Retainer Wire Warming rack Tool hook...
-
Page 9: Hardware Contents
HARDWARE CONTENTS Description Part Description Quantity Part Quantity Picture Picture M6x12 Flat Screw Washer Spring M5x8 Washer Screw Flat M4x10 Washer Screw M4x8 Spring Screw Axis PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and diagram above. -
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS Step 1: 1) Attach the tank retainer wire (U) to the bottom cabinet panel assembly (C) using one spring axis (HH). 2) Attach right side cabinet panel (A) and left side cabinet panel (B) to bottom cabinet panel assembly , using six screws ( Hardware Used... - Page 11 ASSEMBLY INSTRUCTIONS Step 3: Install the front top beam (E) to the front of the cabinet assembly, using four screws ( Hardware Used M6x12 Screw Step 4: Insert the steel wire (F) into the hole on the back cabinet panel (D) and place the wire on the bottom cabinet panel (C) using one screw (BB).
- Page 12 ASSEMBLY INSTRUCTIONS Step 5: Insert the door handle (H) to the door assembly (G) (I) using four screws ( Hardware Used M6x12 Screw Step 6: 1) Insert the pin on the bottom of the left door assembly into the hole on the left bottom side of the cabinet assembly.
- Page 13 ASSEMBLY INSTRUCTIONS Step 7: 1) Install the drip pan assembly (N) to the bottom body assembly, using four screws (CC) and four flat washers (GG). 2) Install the grease collection pan (P) under the drip pan (N) as shown. Hardware Used M4x10 Screw Flat...
- Page 14 ASSEMBLY INSTRUCTIONS Step 9: 1) Loosen the five side panel screws on the left side of the body assembly and allow 1/4 of the screws length to extend from the grill housing assembly. DO NOT COMPLETELY REMOVE SCREWS. 2) Align the large holes of the left side table assembly with the screws extended from the grill housing assembly.
- Page 15 ASSEMBLY INSTRUCTIONS Step 10: 1) Install the left side valve assembly into the le ft side table assembly (K) using two screws (CC). 2) Repeat the same procedure for the right side valve assembly (L). Hardware Used M4x10 Screw Step 11: 1) Install the ignition wire to the le ft side valve by plugging the end of the wire into the socket.
- Page 16 ASSEMBLY INSTRUCTIONS Step 13: Install the condiment boxes (O) into the side burner assemblies using two screws (DD) at each side. Hardware Used M4x8 Screw Step 14: Install the side knobs (M) into the side valves on both sides.
- Page 17 ASSEMBLY INSTRUCTIONS Step 15: 1) Open the hood assembly and put four heat shields (Q) into the grill housing. 2) Place three cooking grates (R) in the grill housing. 3) Install the warming rack (S) on the top of grill housing. Step 16: 1) Place a gas cylinder (not included) into the cabinet assembly.
-
Page 18: Operation Instructions
OPERATION INSTRUCTIONS CAUTION: Only use the regulator provided! If a replacement is necessary, please call our customer service center. Do not use replacement parts that are not intended for this grill. Connecting gas cylinder: The propane gas supply cylinder to be used must be constructed and marked in accordance with the Specifications for Propane Gas Cylinders of the U.S. - Page 19 OPERATION INSTRUCTIONS Connection the Gas Cylinder Always place the propane cylinder on the tank brackets located on the right side of the cart. Always confirm that all burner control knobs are in the OFF position before activating the gas supply. Before connection, be sure that there is no debris caught in the head of the gas cylinder, head of the regulator valve, or in the head of the burner and burner ports.
- Page 20 OPERATION INSTRUCTIONS Lighting Your Grill DANGER: Failure to open lid while igniting the grill or not waiting 5 minutes to allow the gas to clear if the grill does not light may result in an explosive flare-up which can cause serious bodily injury or death.
-
Page 21: Care And Maintenance
OPERATION INSTRUCTIONS Shutting Off Burners: Always turn the valve knob(s) clockwise to the High position, and then push in and turn to OFF. Never force the knob without depressing it as this can damage the valve. 2. Promptly turn the gas supply OFF at the propane cylinder. 3. - Page 22 CARE AND MAINTANCE If the inside surface of the grill lid has the appearance of peeling paint, baked on grease buildup has turned to carbon and is flaking off. Clean thoroughly with strong solution of detergent and hot water. Rinse with water and allow to completely dry. Interior of grill bottom - Remove residue using brush, scraper and/or cleaning pad, and then wash with dishwashing detergent and hot water solution.
-
Page 23: Troubleshooting
TROUBLESHOOTING Please refer to the following Troubleshooting Guide if you have any problems lighting or operating your grill Many solutions given here can make your grilling experience safer and more enjoyable... - Page 24 TROUBLESHOOTING Problem Possible Solutions The propane regulator assembly incorporates an excess flow device designed to supply the grill with sufficient gas flow under normal conditions, yet control excess gas flow. Rapid changes in pressure can trigger the excess flow device, providing a low flame and low temperature.If the tank valve is turned open to allow gas flow while a burner valve is open, the surge of pressure will cause the device to activate.
- Page 25 TROUBLESHOOTING Problem Possible Solutions 1. Push and turn the knob and check for sparks. 2. If there is a spark, check to make sure gas is supplied to the burner. a. Purge the line of any trapped air. Grill will not light b.
-
Page 26: Warranty
WARRANTY Proof of purchase is required to access this warranty program, which is in effect from date of purchase. If customer is unable to provide proof of purchase, or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty For 30 days from the date of purchase, any missing and damaged parts will be replaced at no charge, with a valid proof of purchase. -
Page 27: Replacement Parts List
REPLACEMENT PARTS LIST Part# Description CG2601-01A Hood CG2601-02A Hood handle Thermometer CG2601-03A CG2601-04A Drip pan Grease collection pan CG2601-05A CG2601-06A Back burner assembly CG2601-07A Heat shield CG2601-08A Left side table assembly CG2601-09A Side table cover CG2601-10A Side table cover pitman CG2601-11A Left side burner bowl Condiment box...
