TRASSIR TR-D2253WDZCL7 Manual

Specification
Model TR-D2253WDZCL7
Image sensor 1/2.7" CMOS 5МP
Resolution 5MP(2880x1632)
Frame rate 50Hz: 5MP@25fps
60Hz: 5MP@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode
Sensitivity 0.0015Lux (F1.0) / 0Lux (LED on)
LED range up to 70 m
(warm white)
Stroboscope
Lens (mm) 2.7 - 13.5 (motorzoom)
Field of view (horiz./vert.) 103˚- 33˚/ 56˚- 19˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-90˚
Tilt: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 7.4 W
PoE: 8 W
Case material
Dimensions (mm) 234.3 x 77.5 x 73.4
Weight Net/Gross (g) 635 / 830
Protection IP67, IK08
Power surge TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
FTC
Yes
3D DNR
1 / 1
Yes
Yes
0
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

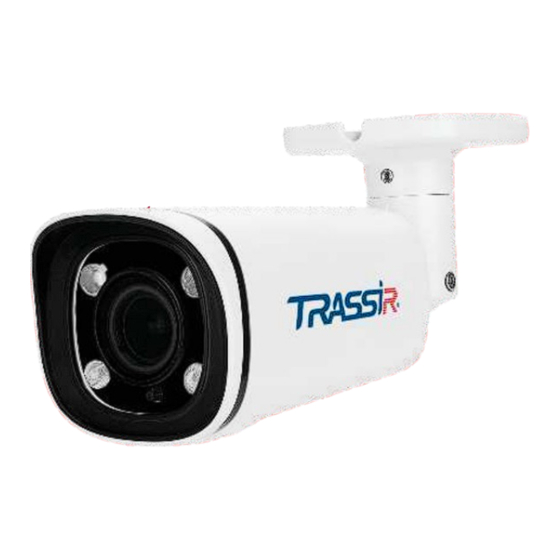

TR-D2253WDZCL7
Outdoor Full Time Color Camera
Full Time
IK08
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Color
