TRASSIR TR-D2281WDIR4 User Manual

Specification
Model TR-D2281WDIR4
Image sensor 1/2.8" CMOS 8МP
Resolution 8MP(3840x2160)
Frame rate 8MP@20fps (WDR off)
8MP@15fps (WDR on)
Electronic shutter speed 1/3 ~ 1/10 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range up to 40 m
Lens (mm)
Field of view (horiz./vert.) 106˚ / 58˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264+ / H.264
Bitrate up to 13Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 6.5W
PoE: 6.8W
Case material
Dimensions (mm) 176.2 x 68 x 68
Weight Net/Gross (g) 364 / 435
Protection
Power surge TVS 6000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8
3D DNR
1 / 1
Yes
Yes
0
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

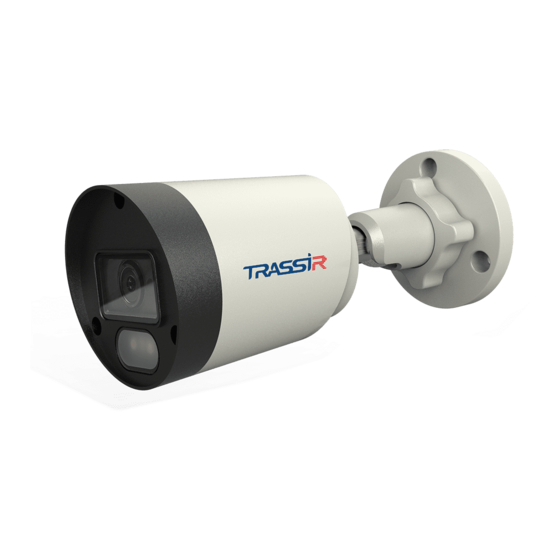

TR-D2281WDIR4
Outdoor IR Network Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
