Specification
Model
TR-D2283WDZIR7
Image sensor
1/2.8" CMOS STARVIS 8МP
Resolution
8MP(3840x2160)
Frame rate
8MP@20fps (WDR off)
8MP@15fps (WDR on)
Electronic shutter speed
1/3 ~ 1/10 000 s
Day/Night mode
Mechanical ICR
Sensitivity
0.003Lux (F1.3)
IR range
up to 70 m
Stroboscope
Lens (mm)
2.7 - 13.5 (motorzoom)
104˚ - 35˚ / 56˚ - 20˚
Field of view (horiz./vert.)
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 13Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 8.9W
Case material
Dimensions (mm)
215.8 x 74.5 x 74.5
Weight Net/Gross (g)
726 / 861
Protection
Power surge
TVS 6000V
suppressor
-40°C ... +60°C
Working temperature
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
Yes
3D DNR
1 / 1
Yes
Yes
0
PoE: 9W
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

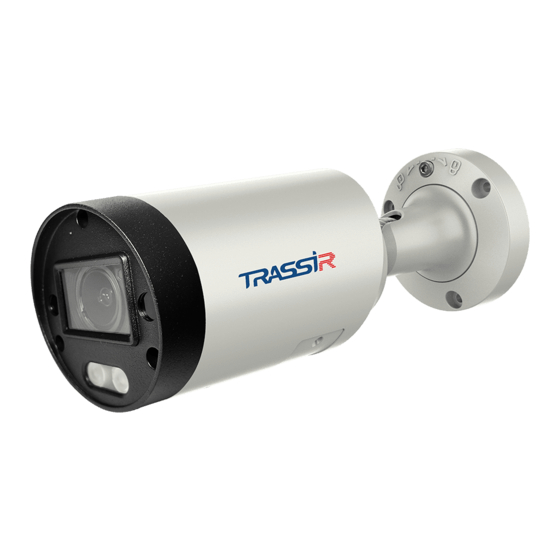

TR-D2283WDZIR7
Outdoor IR Network Camera
VARIO
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
