Specification
Model
TR-D2253WDZIR7
Image sensor
1/2.8" CMOS STARVIS 5MP
Resolution
5MP(2592x1944)
4MP(2592x1520)
Frame rate
5MP@20fps
4MP@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night mode
Mechanical ICR
Sensitivity
0.002Lux (F1.3)
IR range
up to 70 m
Lens (mm)
2.7 - 13.5 (motor-zoom)
Field of view (horiz./vert.)
93.8˚-30.5˚ / 68.4˚-24.5˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264
Bitrate
up to 8Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
1 in / 1 out
Alarm In / Out
Corridor mode
IVS
Human detection
Line crossing
Intrusion detection
People Counting
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 10.5W
PoE: 11W
Case material
Dimensions (mm)
234.2 x 77.3 x 73.2
Weight Net/Gross (g)
640 / 830
Ingress protection
IP67, IK08
Lightning protection
TVS 4000V
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
Loitering
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D2253WDZIR7

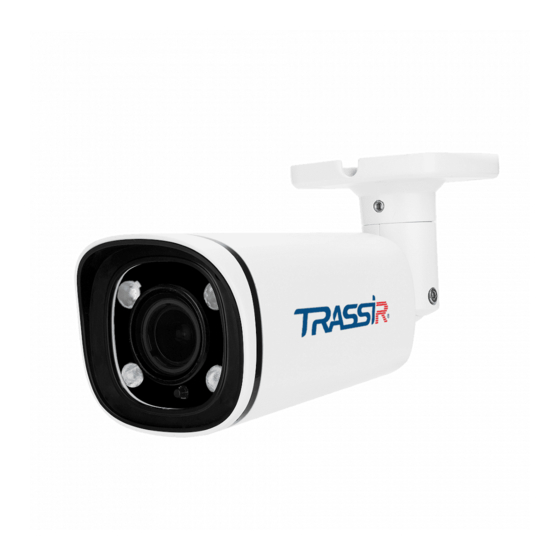

Outdoor IR Mini Bullet Network Camera
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
