Specification
Model
TR-D2283WDZIR7
Image sensor
1/2.8" CMOS 8МP
Resolution
8MP(3840x2160)
Frame rate
8MP@20fps (WDR off)
8MP@15fps (WDR on)
Electronic shutter speed
1/3 ~ 1/10 000 s
Day/Night mode
Mechanical ICR
Sensitivity
0.003Lux (F1.3)
IR range
up to 70 m
Lens (mm)
2.7 - 13.5 (motorzoom)
Field of view (horiz./vert.)
104˚ - 35˚ / 56˚ - 20˚
Axes setting
Pan: 0˚-360˚
Tilt: 0˚-90˚
Rotation: 0˚-360˚
WDR
Real WDR (120dB)
Digital noise reduction
Video compression
Н.265+ / Н.265 / H.264+ / H.264
Bitrate
up to 13Mbps
Local storage
MicroSD up to 128GB
Audio
Built-in microphone
AudioIn / AudioOut
Alarm In/Out
Corridor mode
IVS
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 8.9W
Case material
Dimensions (mm)
215.8 x 74.5 x 74.5
Weight Net/Gross (g)
726 / 861
Protection
Power surge
TVS 6000V
suppressor
Working temperature
-40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
1 / 1
Yes
Yes
0
PoE: 9W
Metal
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance

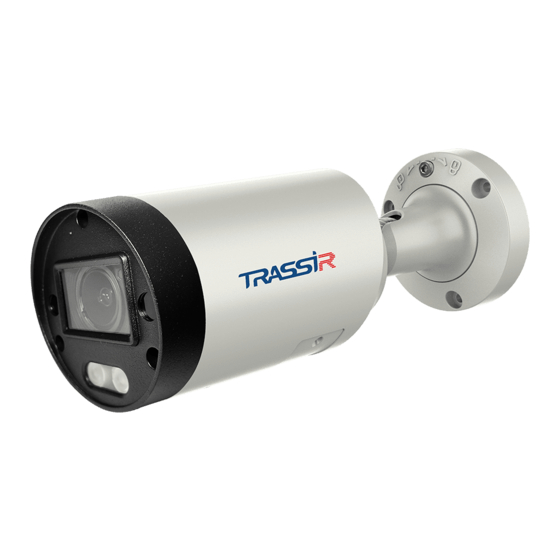

TR-D2283WDZIR7
Outdoor IR Network Camera
VARIO
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRASSIR TR-D2283WDZIR7
Summary of Contents for TRASSIR TR-D2283WDZIR7
- Page 1 Weight Net/Gross (g) 726 / 861 Protection IP67 Power surge TVS 6000V Data ___________________________ Stamp ___________________________ suppressor Working temperature -40°C … +60°C Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 * MicroSD Card is not included into camera package ** With option of object type filtering (person, vehicle) 3. Change IP camera settings using TRASSIR professional software. Camera package You can find detailed camera settings instructions in User Manual that can be downloaded from trassir.com.
