TRASSIR TR-D2221WDIR4W Manual

Specification
Model TR-D2221WDIR4W
Image sensor 1/2.8" CMOS 2МP
Resolution FullHD(1920x1080)
Frame rate 50Hz: FullHD@25fps
60Hz: FullHD@30fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/Night mode Mechanical ICR
Sensitivity 0.005Lux (F1.8)
IR range up to 40 m
Lens (mm)
Field of view (horiz./vert.) 2.8mm: 101˚ / 55˚
3.6mm: 85˚ / 46˚
Axes setting Pan: 0˚-360˚
Tilt: 0˚-105˚
Rotation: 0˚-360˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265+ / Н.265 / H.264
Bitrate up to 8Mbps
Local storage MicroSD up to 128GB
Audio Built-in microphone
1 in / 1 out
Alarm
IVS
Wi-Fi
Corridor mode
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 5.3W
PoE: 6.3W
Case material
Dimensions (mm) 184.3 x 67.3 x 63.9
Weight Net/Gross (g) 460 / 585
Protection
Power surge TVS 4000V
suppressor
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
1 / 1
Yes
2.4 Ghz
Yes
0
Metal
Data ___________________________ Stamp ___________________________
IP67
Here is the confirmation form for warranty assurance

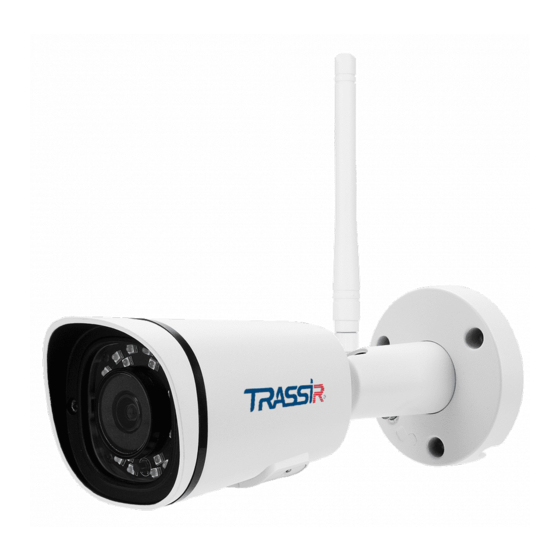

TR-D2221WDIR4W
Outdoor IR Mini Bullet Wireless Network
Camera
Note: read user manual before using
