SERVICE MANUAL
2016
IP20 drive & IP66

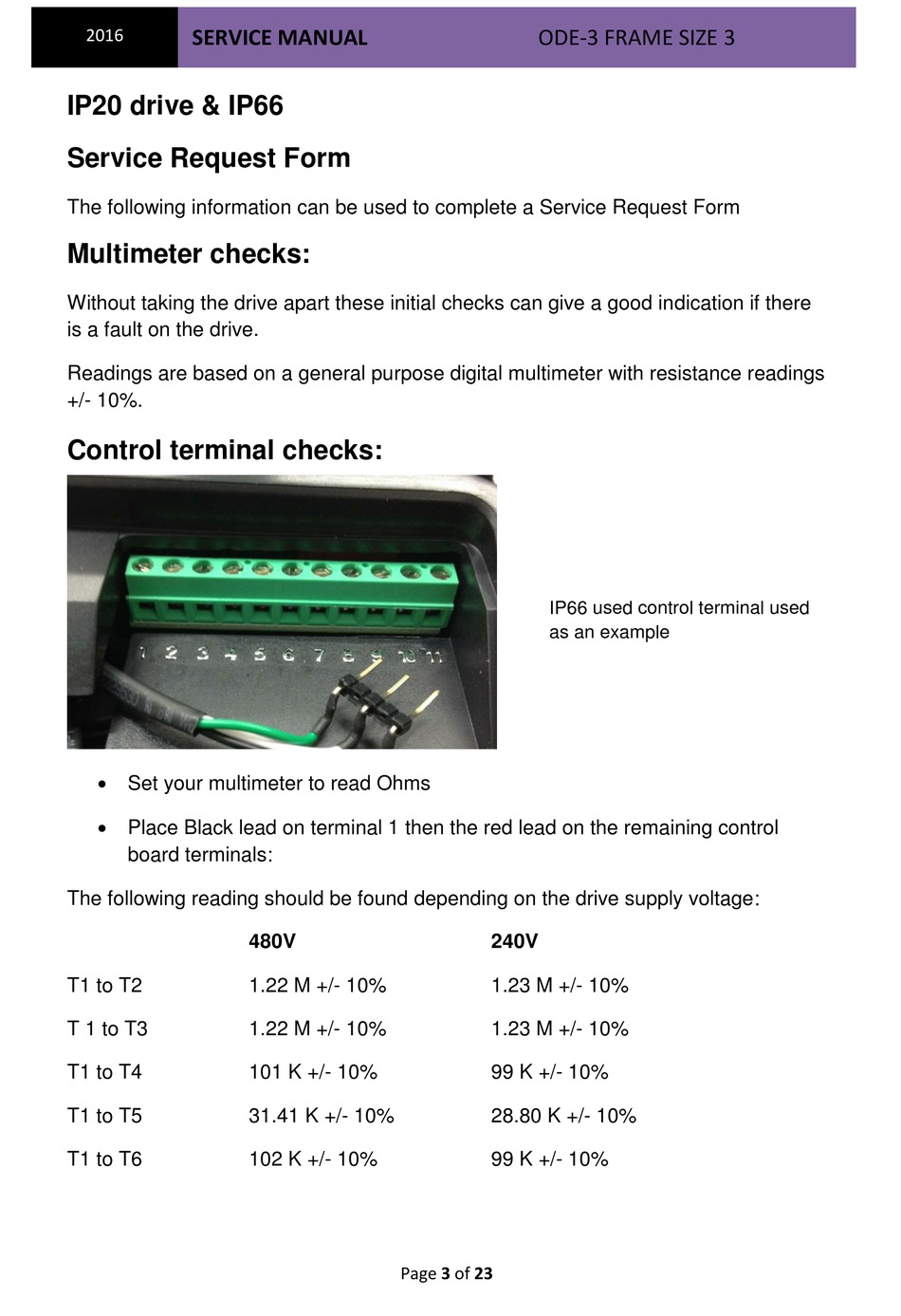

Service Request Form

The following information can be used to complete a Service Request Form

Multimeter checks:

Without taking the drive apart these initial checks can give a good indication if there
is a fault on the drive.
Readings are based on a general purpose digital multimeter with resistance readings
+/- 10%.

Control terminal checks:

 Set your multimeter to read Ohms
 Place Black lead on terminal 1 then the red lead on the remaining control
board terminals:
The following reading should be found depending on the drive supply voltage:
T1 to T2
T 1 to T3
T1 to T4
T1 to T5
T1 to T6
480V
1.22 M +/- 10%
1.22 M +/- 10%
101 K +/- 10%
31.41 K +/- 10%
102 K +/- 10%
Page 3 of 23
ODE-3 FRAME SIZE 3
IP66 used control terminal used
as an example
240V
1.23 M +/- 10%
1.23 M +/- 10%
99 K +/- 10%
28.80 K +/- 10%
99 K +/- 10%
