Inrush Circuit Test (480V & 240V) - Invertek Drives OPTIDRIVE E3 Service Manual

Electrical test
Hide thumbs Also See for OPTIDRIVE E3:
Table of Contents

Advertisement

SERVICE MANUAL
2016
Inrush circuit test (480V & 240V)

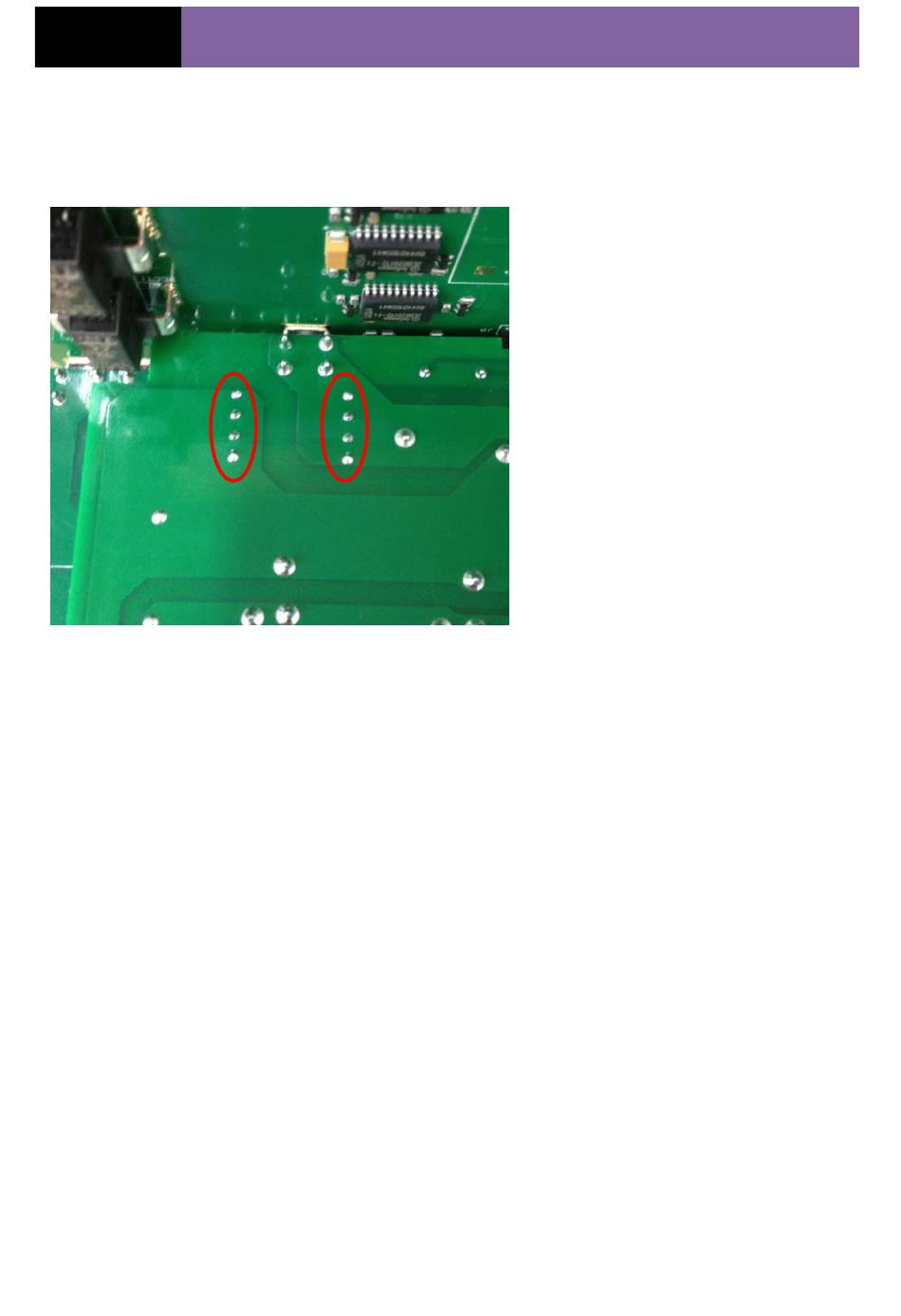

Set your multimeter to read Ohms and measure across the Inrush Resistors highlighted
above. Note that each resistor is 100 Ohms and are connected in parallel hence a
reading of 33R +/- 15% should be measured.
ODE-3 FRAME SIZE 3
Page 12 of 23
