Mizuho Seat Extension Instructions For Use

MES-CK08-075-36EN-0
PREPARED: (2023-07-26) (Version 4)
Warning
When using operating table accessories, always pay close
attention to the patient. Patients left in the same posture for an
extended period of time are at risk for developing nerve
paralysis and/or bedsores
Contraindication/Prohibition
1. This product is only validated for use with Mizuho operating
tables.
2. Use only on the models listed in Instructions for use, 3.
Applicable operating tables.
Symbol mark for labeling
MD : Medical Device
Specifications

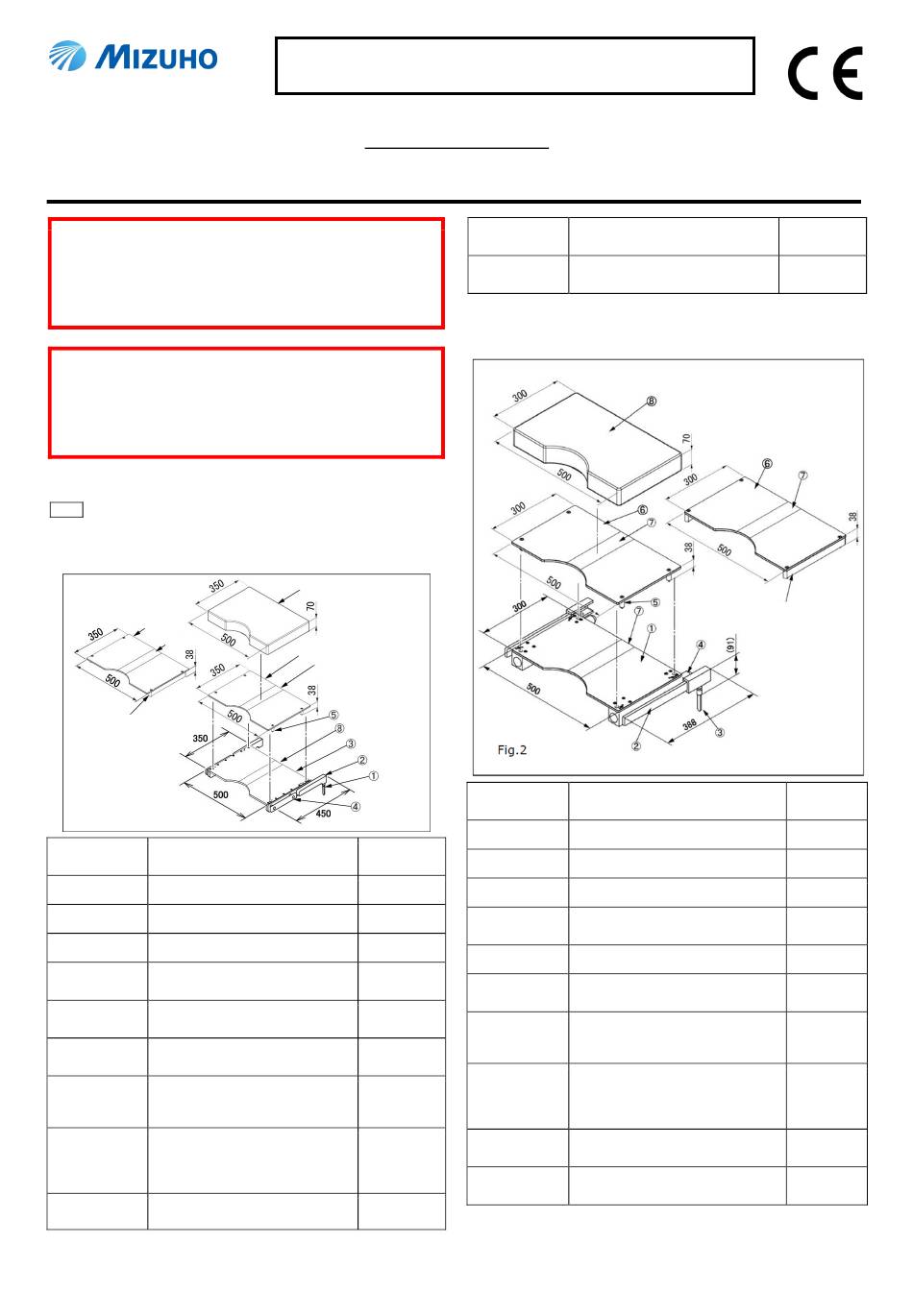

1. Shape
⑥
⑦
⑨
Fig.1
Code No. Product Description
08-075-36 Seat Extension (350mm) *1
08-075-36-R1 Seat Extension (350mm) (R1) *2
08-075-36-R2 Seat Extension (350mm) (R2) *3
Pad for Seat Extension
08-075-37
(350mm) *4
Radiographic Top for Seat
08-075-38
Extension(350mm)
Radiographic Table Tops Fixed
08-083-01
Type for Seat Extension (350mm)
Digital Radiographic Table Tops
08-083-21 Fixed Type for Seat Extension
(350mm)
Phenolic Board for Radiographic
and Digital Radiographic Table
08-083-41
Tops Fixed Type for Seat Extension
(350mm)
Mizuho Original Pad for Seat
08-083-61
Extension (350mm)
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use
Trade Name: Seat Extension
Unit: mm
⑧
⑥
⑦
Compo
nents
①②③④⑦
①②③④⑦
①②③④⑦
⑧
⑤⑥⑦
⑤⑥⑦
⑥⑦⑨
③⑦
⑧
1/3
Code No. Product Description
SUSANO pad for Seat Extension
18-042-83
(350mm)
Note: The number corresponds to those used in 1. Shape.
*1,*2 and *3: The size of mountable side rail is different.
*4: Pad thickness 50 mm.
Code No. Product Description
08-075-42 Seat Extension for 5701 *5
08-075-42-R1 Seat Extension for 5701 (R1) *6
08-075-42-R2 Seat Extension for 5701 (R2) *7
Radiographic Top for Seat Extension
08-075-43
for 5701
08-075-44 Pad for Seat Extension for 5701
Radiographic Table Tops Fixed Type
08-083-00
for Seat Extension (300mm)
Digital Radiographic Table Tops
08-083-20 Fixed Type for Seat Extension
(300mm)
Phenolic Board for Radiographic and
Digital Radiographic Table Tops
08-083-40
Fixed Type for Seat Extension
(300mm)
Mizuho Original Pad for Seat
08-083-60
Extension (300mm)
SUSANO Pad for Seat Extension
18-042-82
(300mm)
Note: The number corresponds to those used in Fig 2.
*5, *6 and *7: The size of mountable side rail is different.
Compo
nents
⑧
⑨
Compo
nents
①②③④⑦
①②③④⑦
①②③④⑦
⑤⑥⑦
⑧
⑤⑥⑦
⑥⑦⑨
①⑦
⑧
⑧
