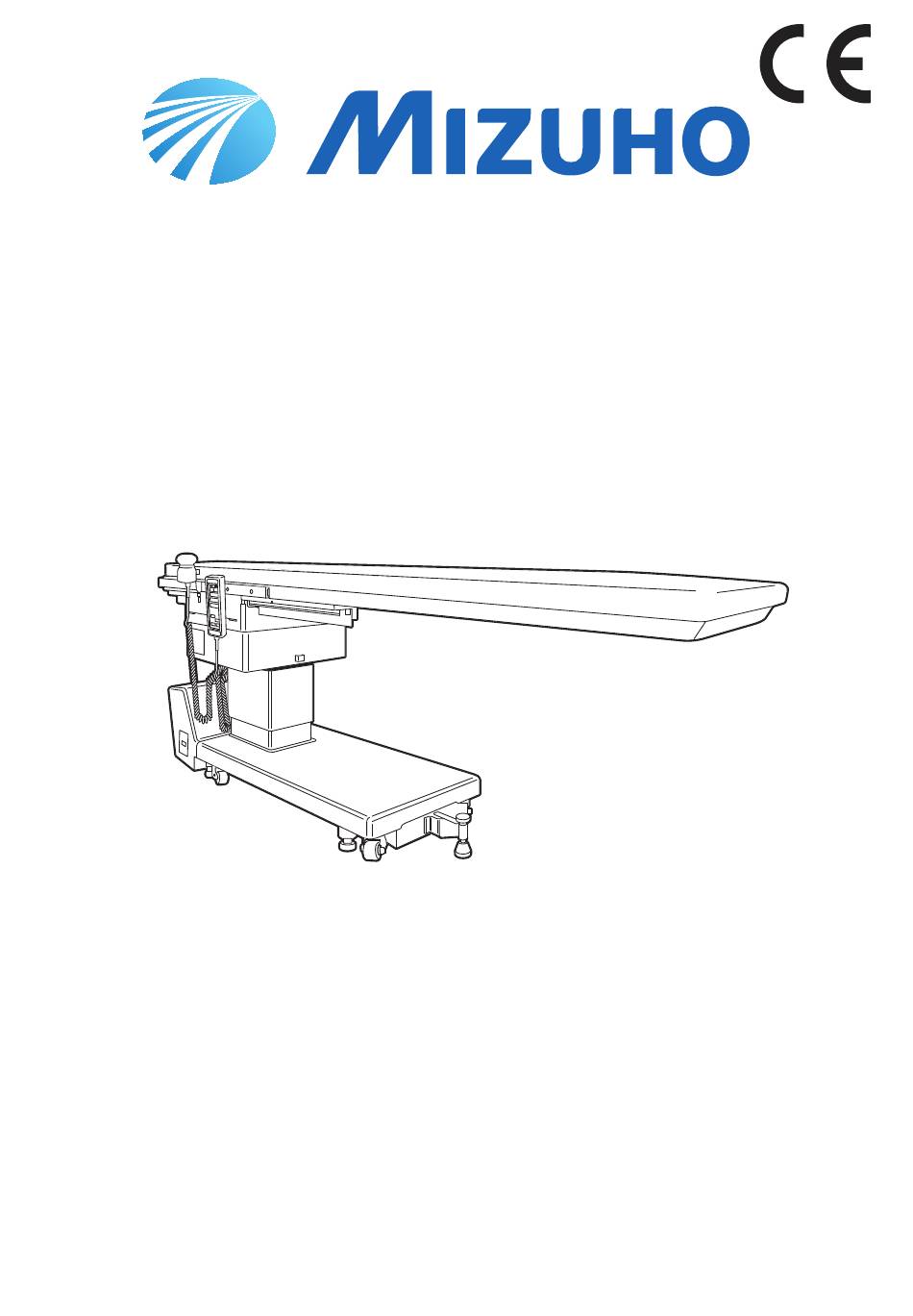

Operating Table Operator's Manual
VACB-3006B
The operating table is designed to support a patient during surgical procedures.
Using it for other purpose may result in damage or injury.
The operator and the person in charge of the maintenance of this operating table
MUST read this Operating Table Instruction Manual carefully and understand the
contents before operating, inspecting, adjusting, or servicing the table.
Keep this Manual where it is readily accessible for reference by those concerned
in case of need.
MES-CK18-480-10EN Ver.3 2019.05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VACB-3006B and is the answer not in the manual?

Questions and answers

Related Manuals for Mizuho VACB-3006B

Summary of Contents for Mizuho VACB-3006B

  • Page 1 Operating Table Operator’s Manual VACB-3006B The operating table is designed to support a patient during surgical procedures. Using it for other purpose may result in damage or injury. The operator and the person in charge of the maintenance of this operating table MUST read this Operating Table Instruction Manual carefully and understand the contents before operating, inspecting, adjusting, or servicing the table.

  • Page 3: Table Of Contents

    Contents Introduction Before use 1 Introduction ...........1 Component 2 Before use ..........5 Identification Operation 3 Component Identification ....13 Maintenance and inspection 4 Operation ..........17 Specifications Installation and battery charging ........18 When the control unit Switch On/Off power ............24 can not be used Operating the emergency stop switch ......26 Before...

  • Page 5: Introduction

    Introduction 1 Introduction...
  • Page 6 Introduction...
  • Page 7 Introduction Introduction This Manual is intended to support safe and effective operation of the operating table. Read this Manual carefully and familiarize yourself thoroughly with its contents (operation, inspection, adjustment, servicing) before operating the table. Using the table without following the instructions contained in this Manual may cause a serious accident.
  • Page 8 Introduction...

  • Page 9: Before Use

    Before use 2 Before use...
  • Page 10 Please read carefully before use Misuse of the operating table could cause damage, electric shock or fire. Before use Table plate CAUTION WARNING - Before lowering or tilting the table, check if - Do not sit or lean on the parts of the table described in the following figures.
  • Page 11 Patient's body position Before use WARNING - When using accessories to secure a patient's body position, make sure to monitor the condition of the patient. Improper body position can lead to paralysis or pressure injuries. - Make sure to attach the provided mattress securely. Improper attachment may cause a patient to get injured.
  • Page 12 Others Before use WARNING Prohibition of disassembling and modification - Do not attempt to disassemble or modify the table. It may cause a malfunction. When used together with other medical electrical equipment - Before using together with other equipment, make sure to check that it is not affected by electromagnetic interference.
  • Page 13 Others Before use CAUTION When used together with other medical equipment or accessories - Before using other devices or accessories, read carefully the instruction manual of the device and make sure that the operating table will not be affected adversely. Before fitting an accessory of third party company, make sure to contact your distributor or us.
  • Page 14 Warning label: details and position Before use Warning labels are attached on the following area of the operating table. Before using it, make sure to check the contents of the warning label. ⑲ ■ WARNING, CAUTION labels ① C653044 ② C653045 ③...
  • Page 15 ⑩ C653614 ⑬ C653035 Before use ⑪ C610171 ⑫ C653620 ⑭ C653050 ⑮ C653034 ⑯ C653048 ⑰ C653513 ⑱ 303A6M2 PIN 303A6M2 ⑲ C630006 ⑳ C657306 VACB-3006B 100-240 50-60 18-480-70 MUC-YYYY★-XXXX 3min on,7min off ㉑ C657318 ㉒ C655711 ㉓ C653036...
  • Page 16 Symbol Referent Label No. ① ② ③ ④ WARNING Possibility of injury or even death if operates the Before use ⑤ ⑥ ⑧ ⑨ table without following the warning. CAUTION ⑲ Indicates AC power supply. ⑲ Enclosure Class (Splash-proof) ⑲ Serial Number ⑲...

  • Page 17: Identification

    Component Identification 3 Component Identification...
  • Page 18 Main unit Component Identification Side rail Emergency stop switch Auxiliary switch Tabletop Emergency brake release handle Brake Auxiliary brake Caster Power switch ■ Emergency stop switch Auxiliary switch Equipotential terminal Control unit connector Hand console connector Battery indicator Power switch Power connector...
  • Page 19 Control unit Control handle ■ ■ Component Identification ⑮ ② ① ④ ③ ⑤ ⑥ ⑦ ⑧ ⑯ ⑩ ⑨ ① Pilot lamp ② Power lamp/Battery lamp ③ NORMAL ④ REVERSE ⑤ Reverse Trendelenburg: Head up ⑥ Trendelenburg: Head down ⑦...
  • Page 20 Side Rail Adaptor for Carbon Fiber Board ■ (Option) long Component Identification short Product code Product name 08-113-10 Side Rail Adaptor II, Long for Carbon Fiber Board 08-113-10-R1 Side Rail Adaptor II, Long for Carbon Fiber Board (R1) 08-113-10-R2 Side Rail Adaptor II, Long for Carbon Fiber Board (R2) 08-113-11 Side Rail Adaptor II, Short for Carbon Fiber Board 08-113-11-R1...

  • Page 21: Operation

    Operation 4 Operation RELEASE Installation Lock/unlock and battery Switch On/Off Emergency the operating Brake charging power Shutdown table Release Change height of Return to level Auxiliary Lateral tilt Trendelenburg the tabletop P33 brake Slide the Accessory tabletop installation P37...

  • Page 22: Installation And Battery Charging

    Installation and battery charging ■ Installation CAUTION Operation 1. Move to a flat area. Equipotential grounding Ground the equipotential 2. Check the battery lamp. terminal and earth ground If the battery lamp (orange) on the control unit terminal on the wall by means flashes, battery charging is required.

  • Page 23: Control Unit

    - Make sure to use the power switch dedicated power cord with "MIZUHO" logo. - Make sure that the connector of the power source is not wet and is not dusty before plugging the power cord into...
  • Page 24 Installation and battery charging NOTE Operation - Useful life for the battery used for the operating table is about 2 years. Once it reaches the useful life, ask your distributor or us for service. - Battery life will vary greatly depending on the operating conditions.
  • Page 25 Installation and battery charging ■ Attach the control unit NOTE Operation If the switch of the control unit 1. Insert the connector into the receptacle by aligning is pressed continuously for 3 it properly with the guide. minutes or more, the operation of the switch will be stopped.
  • Page 26 Installation and battery charging ■ Attach the hand console Operation 1. Insert the connector into the receptacle by aligning it properly with the guide. 1. Insert ■ Detach the hand console 1. Turn the ring of the connector in the direction of the arrow until it stops.
  • Page 27 Installation and battery charging ■ Self-diagnosis function Operation The operating table has a built-in self-diagnosis function to check if the operating table and control unit work properly. 1. Connect the power cord. 2. Turn on the power switch on the base. 3.

  • Page 28: Switch On/Off Power

    Switch On/Off power ■ When using power of NOTE medical grade wall outlet Operation - If an emergency occurs or the power is turned off Power on completely, unplug the power cord from the medical-grade 1. Turn on the power switch on the base. wall outlet.
  • Page 29 Switch On/Off power NOTE ■ When using battery power Operation - If an emergency occurs or the power is turned off Power on completely, unplug the power cord from the medical-grade 1. Press on the control unit. wall outlet. Power lamp (green), battery lamp (orange) and - When turning off the power the battery indicator will come on.

  • Page 30: Operating The Emergency Stop Switch

    Operating the emergency stop switch ■ Operating in an emergency WARNING Operation In an emergency, you can stop the operating table The emergency stop switch must from moving by pressing the emergency stop switch. be used only in an emergency. 1.

  • Page 31: Lock And Unlock The Operating Table

    Lock and unlock the operating table ■ Lock operating table WARNING Operation 1. Press simultaneously. - Make sure the table is locked The brake will actuate and the operating table will after the brake is applied. be locked. The operating table will not move up - Do not unlock the brake with the patient on the table.

  • Page 32: Brake Release

    Brake Release ■ Emergency brake release handle WARNING Operation In case of electrical trouble, the operating table can - Do not unlock the brake while be moved by using the emergency brake release a patient is on the table. The handle.

  • Page 33: Auxiliary Brake

    Auxiliary brake ■ Fix the operating table position with the auxiliary Operation brake When Radiolucent Head Extension for VACB with Pad is used, use the auxiliary brake. 1. Pull the auxiliary brake in the direction of the arrow. 2. Turn the brake handle clockwise until it stops. The table is now fixed.

  • Page 34: Lateral Tilt

    Lateral tilt Normal mode WARNING ■ Left down Operation Make sure the patient on the table is secured when tilting 1. Press of the control unit. the table. Otherwise the patient 2. Press simultaneously. may fall off the table. The tabletop will move to the left down position as viewed from the auxiliary switch end.
  • Page 35 Lateral tilt Reverse mode WARNING ■ Left down Operation Make sure the patient on the table is secured when tilting 1. Press of the control unit. the table. Otherwise the patient 2. Press simultaneously. may fall off the table. The tabletop will move to the left down position as viewed from the auxiliary switch end.

  • Page 36: Trendelenburg

    Trendelenburg ■ Reverse Trendelenburg WARNING (Head up) Operation Make sure the patient on the table is secured when tilting the 1. Press simultaneously. table. Otherwise the patient may The tabletop will move to the head up position. fall off the table. Head up CAUTION - Do not allow the end of the...

  • Page 37: Move Up/Move Down Of The Table

    Move up/move down of the table ■ Move up the tabletop NOTE Operation The tabletop's maximum height 1. Press simultaneously. is 1060 mm, and its minimum The tabletop will move up. height is 704 mm. Move up 1060 mm CAUTION ATTENTION K E E P C O R D C L E A R O F M O V I N G P A R T S .

  • Page 38: Return To Level

    Return to level ■ Return the tabletop to the CAUTION level position Operation If you push the tabletop when it is in the level position, it may 1. Press simultaneously. move in the sliding direction. The tabletop in a position of Trendelenburg and lateral tilt will return to the level position.

  • Page 39: Slide The Tabletop

    Slide the tabletop ■ Control handle WARNING Operation 1. Make sure the tabletop is parallel to the floor. - Keep your hands away from the gap of the frame during 2. Press the switch on the control handle. the operation of the table. Otherwise you may get Switch injured.
  • Page 40 Slide the tabletop ■ Move laterally NOTE Operation If the table won’t slide, it The tabletop slides laterally as described below. is possible that the reset signal isn't input in the lock 100 mm 100 mm mechanism. Follow the instructions below. 1.

  • Page 41: Accessory Installation

    Accessory installation You can install the optional accessories on the WARNING operating table. Operation For details, refer to the instruction manual(s) for the Be sure to tighten the fixing accessories. handles securely. ■ Side Rail Adaptor for Carbon Fiber Board 1.
  • Page 42 Accessory installation 2. Attach the Pad for radiolucent head extension „ and Pad for VACB … to the radiolucent head Operation extension  and table top of VACB . ⑤ ④ ① ③...

  • Page 43: Maintenance And Inspection

    Maintenance and inspection 5 Maintenance and inspection...
  • Page 44 Inspection before and after use Perform inspection for the following items. If there is any problem, ask your distributor or us for repair. Be sure to check the inspection items before and after using WARNING the operating table. If there is any problem, ask your distributor or us for repair.
  • Page 45 Periodic replacement parts Mizuho specifies that the following parts need to be periodically replaced for safety use.The replacement time is a rough standard. Earlier replacement may be required depending on the usage condition and/or usage frequency.Request your distributor or Mizuho for replacements.
  • Page 46 Maintenance and inspection...

  • Page 47: Specifications

    Specifications 6 Specifications...
  • Page 48 Specifications Description Operating Table VACB-3006B Highest 1060 mm Elevation range Lowest 704 mm Head down 20° Trendelenburg angle Head up 20° Right down 20° Lateral tilt angle Left up 20° Return to level Trendelenburg / Lateral tilt Specifications Brake Lock / Unlock...
  • Page 49 Drawing 2095 mm 1651 mm 444 mm 985 mm 666 mm Specifications * The penetration dimensions of the X-ray beam 554 mm 1034 mm 211 mm 486 mm 1244 mm...
  • Page 50 Specifications...

  • Page 51: When The Control Unit Can Not Be Used

    When the control unit can not be used 7 When the control unit can not be used...
  • Page 52 Operate the table ■ Functions of the auxiliary switch CAUTION 1. Open the lid of the auxiliary switch. - Use the auxiliary switch only in an emergency. Unlike the control unit, the operation restriction function will not function. When the - Keep an eye on the movement control unit can not be...

  • Page 53: Before Contacting Your Distributor For Repair

    Before contacting your distributor for repair 8 Before contacting your distributor for repair...

  • Page 54: Trouble Shooting

    Trouble shooting The following situations can occur even if the operating table is not out of order. Check the following points before contacting your distributor for repair. Problem Possible cause Measures The table cannot 1. The connector of the control unit is not 1.

  • Page 55: In Case Of Malfunction

    Warranty for repair MIZUHO Corporation will repair defective parts of this product without charge for one year from the date of delivery/installment except for cases of damage caused by a third party’s repair, act of nature, improper use or intentional damage. All other warranty terms and conditions are subject to...
  • Page 56 Before contacting your distributor for repair...

  • Page 57: Appendix

    Appendix...
  • Page 58 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS Operating Table VACB-3006B is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table VACB-3006B should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 59 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE OPERATING TABLE VACB-3006B Operating Table VACB-3006B is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of Operating Table VACB-...
  • Page 60 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY Operating Table VACB-3006B is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table VACB-3006B should assure that it is used in such an environment. Electromagnetic...
  • Page 61 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY Operating Table VACB-3006B is intended for use in the electromagnetic environment specified below. The customer or the user of Operating Table VACB-3006B should assure that it is used in such an environment. Electromagnetic environment –...
  • Page 62 Autorized Representative Europe: Sale Agent Manufacturer: Emergo Europe B.V. Prinsessegracht 20, 2514 AP The Hague, The Netherlands 3-30-13 Hongo, Bunkyo-ku Tokyo 113-0033, Japan http://www.mizuho.co.jp...
