Mizuho Standard Armboard Instructions For Use

MES-CK08-117-16EN-0
PREPARED: (2022-08-19) (Version 5)
Warning
1.When using operating table accessories, always pay close
attention to the patient. Patients left in the same posture for
an extended period of time are at risk for developing
bedsores.
2.When using this product for a patient in the lateral recumbent
position, secure the arm on the lower side onto the Armboard.
Failure to secure the arm to the Armboard may lead to a
patient injury.
Contraindication/Prohibition
1.This product is only validated for use with Mizuho operating
tables.
2.Avoid putting a patient's arm in any of the positions shown
below, in order to prevent nerve paralysis in the arm.
Do not allow the arm to be positioned at an angle of more
than 90 degrees with respect to the longitudinal direction
of the operating table.
Do not turn up the inside of the arm (except for patients in
the lateral recumbent position).
Be sure to read this instruction manual before using this product.
Keep this manual available for reference when needed.
Instruction for Use

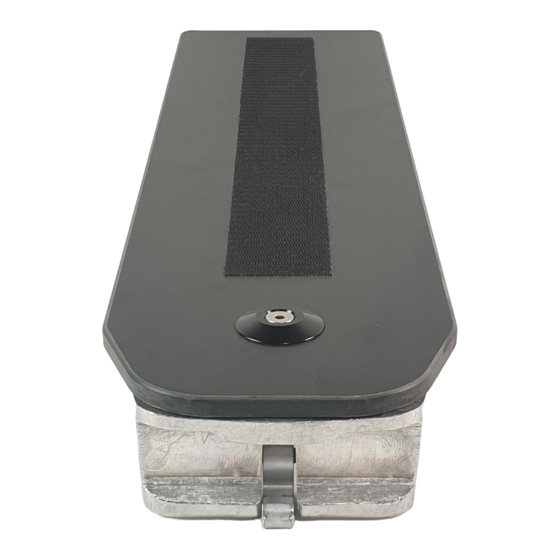

Trade Name: Standard Armboard
1/3
Do not use this product if its upper surface is lower than
the surface of the operating table.
Symbol mark for labeling
MD
:Medical Device
Specifications
Pad for armboard
Clamping lever
Accessory： Pad for armboard
Code No. Product Description
08-117-16 Standard Armboard (C2)
<Accessories>
Code No.
08-117-07 60 mm Pad for Armboard (C1/C2)
08-117-08
100 mm Pad for Armboard (C1/C2)
Material: Stainless steel, Aluminium alloy, Plastic
Intended purpose
This is an accessory to an operating table and is used for
supporting an upper arm of a patient.
Board
Rotation lever
Product Description
