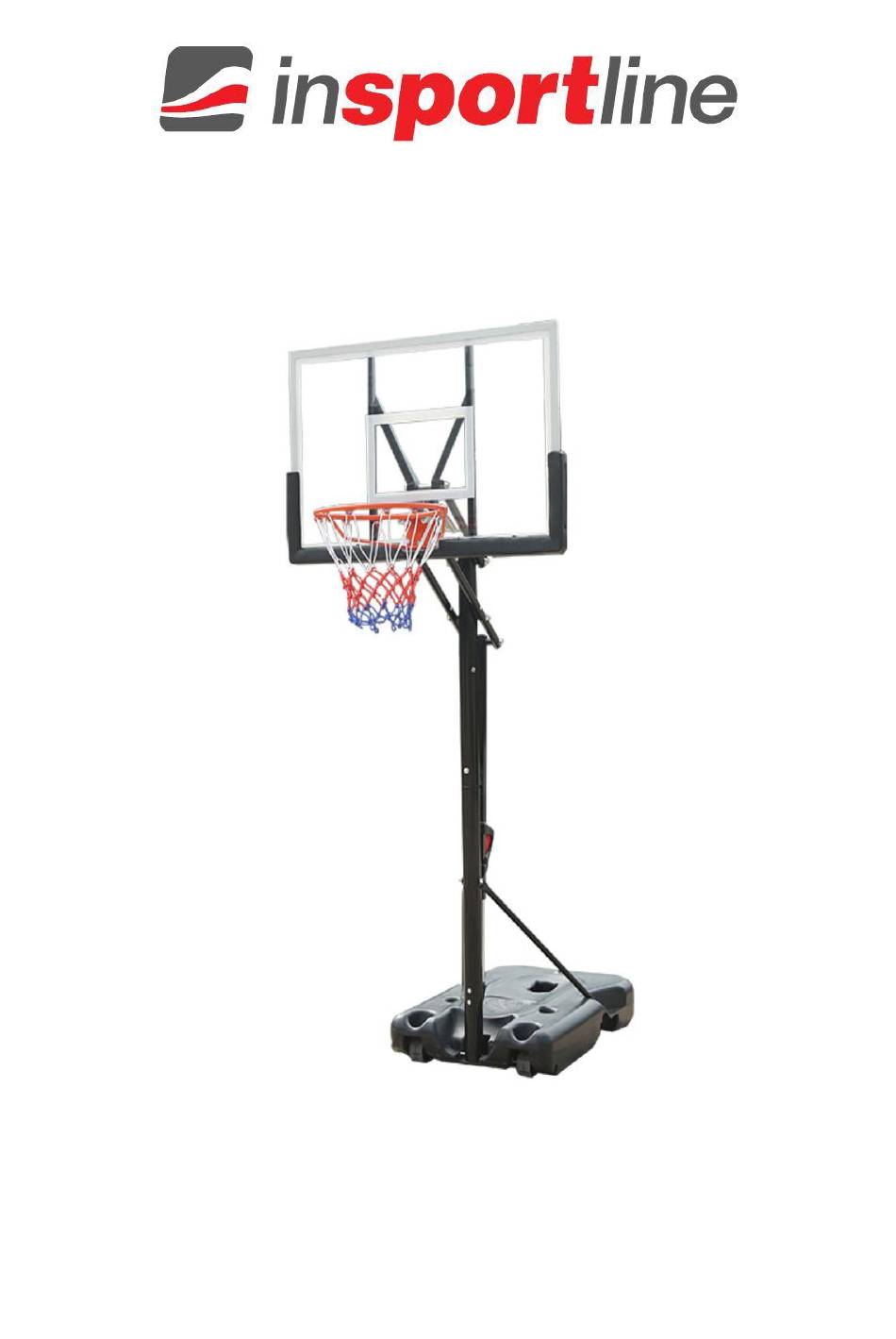

- Page 1 USER MANUAL – EN IN 22637 Basketball basket inSPORTline Oakland...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................4 ASSEMBLY ............................. 6 MOVING ..............................12 HEIGHT ADJUSTMENT ........................12 ENVIRONMENT PROTECTION ......................12 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........12... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Please read the instruction carefully. Remove all parts and hardware from the carton and place them on soft and clean surface. Check that nothing is missing. Please recycle all packaging materials. • Follow the instructions carefully. Failure to follow these instructions may result in serious injury or damage. -
Page 4: Parts List
PARTS LIST Specifications / Name Picture Qty. A1,A2,A3,A4 M12x180 mm B1,B2,B3,B4,B5 M12x180 mm C1,C2,C3,C4 M12x180 mm D1,D2,D3 M10x100 mm E1,E2,E3 M10x90 mm F1,F2,F3 M8x120 mm G1,G2,G3 M8x90 mm H1,H2,H3 M8x45 mm I1,I2,I3 M8x45 mm J1,J2,J3 M8x20 mm K1,K2 M8x16 mm Small spring Wheels... - Page 5 Top pole cover Mesh Bracket Big spring Board rod holder (short) Board rod holder (long) U1,U2 Pole support rods Axle Top pole Middle pole Bottom pole Base Board bracket...
-
Page 6: Assembly
Board EE,FF M12x180 mm Inner height adjustment rod Outer height adjustment rod ASSEMBLY WARNING! Assembly can only be performed by an adult. 4 adults are recommended for installation. Step 1 Create a post with parts W, X, Y. Attach bracket Q to the post X with bolts, washers and nuts G1, G2,... - Page 7 Step 2 Tighten the pole with a few strikes against a piece of wood. Step 3 Connect the posts W, X and Y with bolts, washers, and nuts E1, E2, E3. Attach the wheels M to the base BB with the axis V. Then attach the bottom post Y to the base BB. The bracket Q on the post X must face backwards.
- Page 8 Step 4 Secure the post W, X, Y with supports U1, U2. Supports U1, U2 secure to the base BB bolts, washers, and nuts J1, J2, J3 and to the post Y with bolts, washers, and nuts D1, D2, D3. Step 5 Attach rim AA and board bracket CC to the board DD with bolts, washers, and nuts F1, F2, F3 and I1, I2, I3.
- Page 9 Step 7 Rods S, T attach to the post W with bolts, washers, and nuts C1, C2, C3, C4.
- Page 10 Step 8 Attach outer height adjustment rod HH to the rod T with bolts, washers, and nuts A1, A2, A3, A4 as shown. Bushing A2 must be between T and HH. Inner height adjustment rod GG attach to the bracket Q with bolts, washers, and nuts H1, H2, H3. Step 9 Attach bolt EE to the rods S for big springs R.
- Page 11 Step 11 On top pole W attach pole cover N. Attach mesh P on the rim AA. Step 12 Fill the base with sand or water.
-
Page 12: Moving
MOVING • Lower the basket to the lowest position. • Grasp the post and tilt the base onto the wheels. • Move the basket on the wheels. • Place the basket in the desired location. • Check the stability of the basket. HEIGHT ADJUSTMENT Height can be adjusted by handle HH. - Page 13 Warranty Period The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal warranty period provided to the Consumer is not affected. By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its regular or contracted features.
