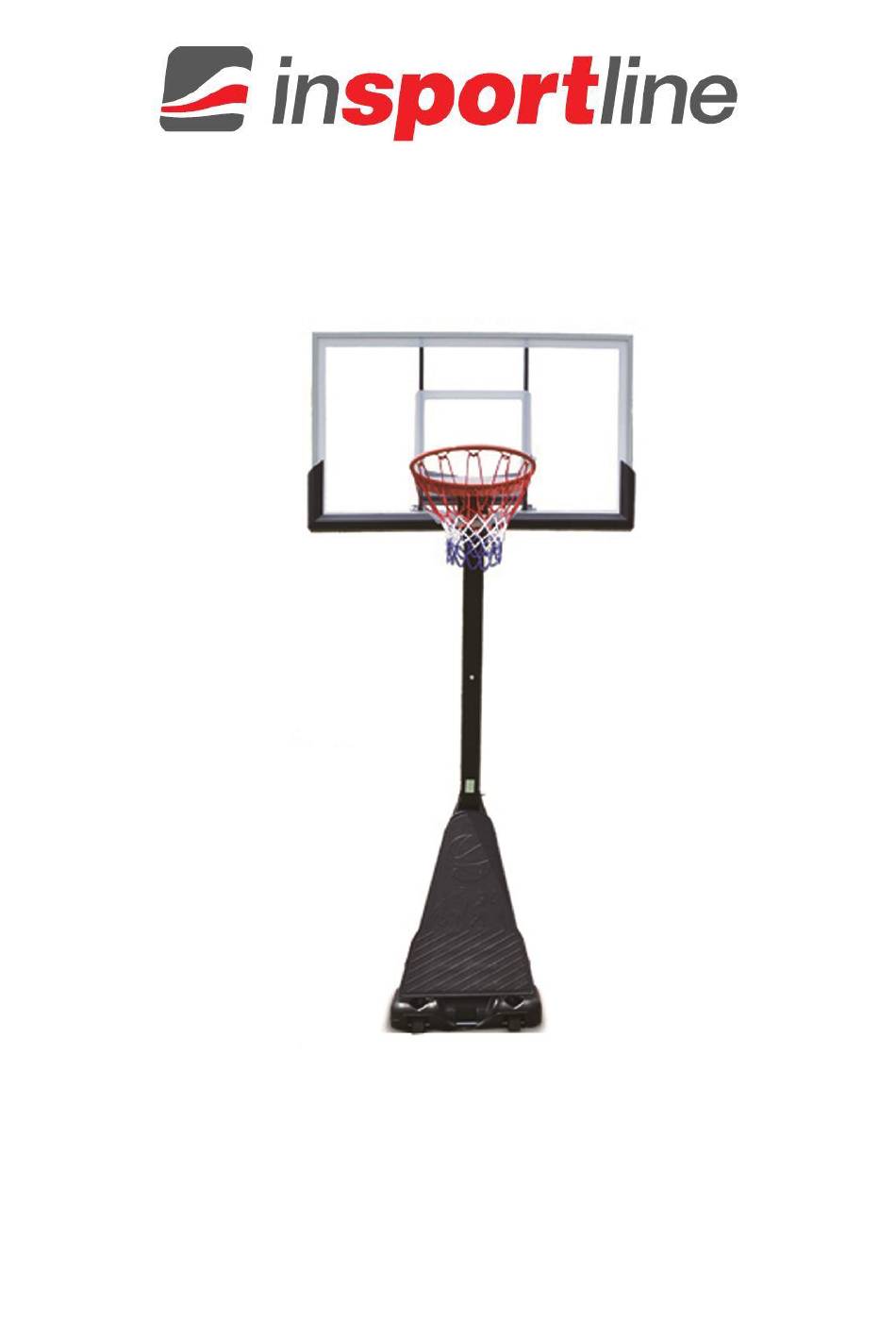

USER MANUAL – EN

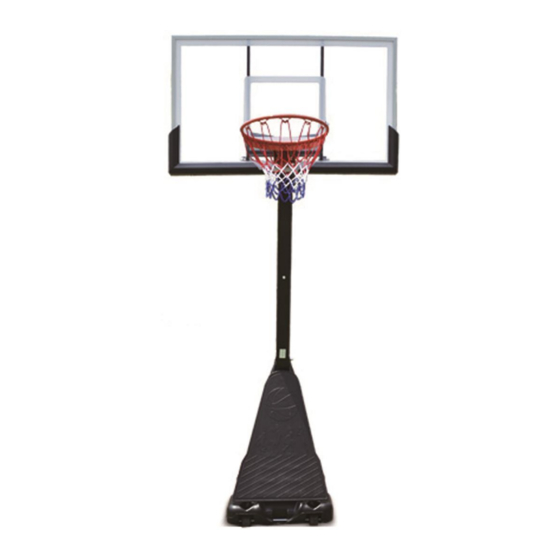

IN 22634 Basketball basket inSPORTline Dunkster

Advertisement

loading
Need help?

Need help?

Do you have a question about the IN 22634 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insportline IN 22634

  • Page 1 USER MANUAL – EN IN 22634 Basketball basket inSPORTline Dunkster...
  • Page 2: Table Of Contents

    CONTENTS SAFETY INSTRUCTIONS ........................3 PARTS LIST ............................4 ASSEMBLY ............................. 7 MOVING ..............................13 HEIGHT ADJUSTMENT ........................13 ENVIRONMENT PROTECTION ......................13 TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ..........13...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Please read the instruction carefully. Remove all parts and hardware from the carton and place them on soft and clean surface. Check that nothing is missing. Please recycle all packaging materials. • Follow the instructions carefully. Failure to follow these instructions may result in serious injury or damage.
  • Page 4: Parts List

    PARTS LIST Specifications / Name Picture Qty. M12x160 mm M12x160 mm M12x60 mm M10x40 mm M8x70 mm M10x140 mm M10x110 mm M8x130 mm M8x25 mm M8x30 mm Wheel bracket Wheels Top pole cover Mesh...
  • Page 5 Plate Plate Holder Crank Board holder Board holder Support rods Support rods Support rods Support rods Pole Pole Pole Height adjustable mechanisms Base...
  • Page 6 Board Cover...
  • Page 7: Assembly

    ASSEMBLY WARNING! Assembly can only be performed by an adult. 4 adults are recommended for installation. Step 1 Assemble the pole with parts W, X, Y. Attach holder Q to the pole X with plates L1 and L2 and bolt set H1, H2 and H3.
  • Page 8 Step 3 Secure the poles with set of bolts G1, G2, G3. Then attach the pole to the base BB with set of bolts J1. Make sure the holder Q is facing back. Step 4 Attach 4x support rods U1, U2, U3, U4 on middle post X with set of bolts F1, F2, F3, F4. Rods U1 and U2 must be attach to the pole X and rods U3 and U4 on rods U1 and U2.
  • Page 9 Step 5 Attach the rods U1 and U2 on sides of base BB and rods U3 and U4 at the end of base BB with bolts I1, I2, I3, I4. Rods U3 and U4 must be attach to the wheel bracket K. Step 6 Attach rim AA to the board CC with set of bolts D1, D2, D3.
  • Page 10 Step 7 Attach board CC to the holders S and T with set of bolts C1, C2, C3 according to the picture. Step 8 Attach holders S, T to the pole W with set of bolts B1, B2, B3.
  • Page 11 Step 9 Attach height adjustable mechanisms Z according to the picture. Step 10 Attach cover DD to the rods U1 and U2.
  • Page 12 Step 11 Attach net P to the rim AA. Step 12 Remove the cap O and fill the base with sand or 160l water.
  • Page 13: Moving

    MOVING • Lower the basket to the lowest position. • Grasp the post and tilt the base onto the wheels. • Move the basket on the wheels. • Place the basket in the desired location. • Check the stability of the basket. HEIGHT ADJUSTMENT You can adjust the height of the basket by turning the crank (R).
  • Page 14 “The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the purpose of using the Goods or services for his own business activities. The Buyer conforms to the General Purchase Agreement and business conditions. These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement made between the Seller and the Buyer.
  • Page 15 26847264 VAT ID: CZ26847264 Phone: +420 556 300 970 E-mail: eshop@insportline.cz reklamace@insportline.cz servis@insportline.cz Web: www.inSPORTline.cz inSPORTline s.r.o. Headquaters, warranty & service center: Električná 6471, Trenčín 911 01, SK CRN: 36311723 VAT ID: SK2020177082 Phone: +421(0)326 526 701 E-mail: objednavky@insportline.sk reklamacie@insportline.sk servis@insportline.sk...
