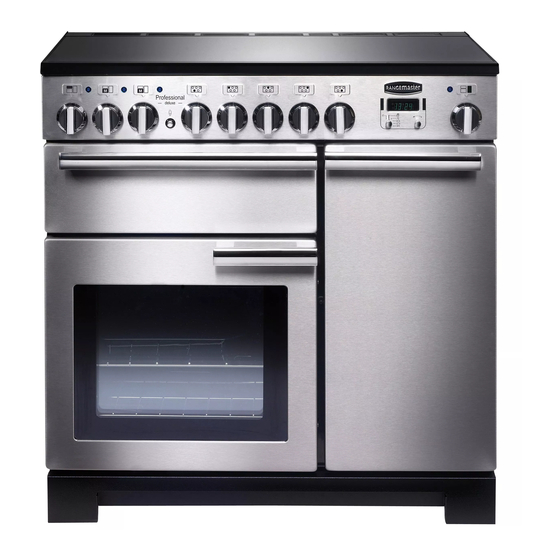

Rangemaster Longstock 90 Induction User's Manual & Installation Instructions
  1. Manuals
  2. Brands
  3. Rangemaster Manuals
  4. Cookers
  5. Longstock 90 Induction
  6. User's manual & installation instructions

Rangemaster Longstock 90 Induction User's Manual & Installation Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE &
INSTALLATION INSTRUCTIONS
Longstock 90 Induction
U110999 - 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Longstock 90 Induction and is the answer not in the manual?

Questions and answers

Related Manuals for Rangemaster Longstock 90 Induction

Summary of Contents for Rangemaster Longstock 90 Induction

  • Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS Longstock 90 Induction U110999 - 01...
  • Page 2 Terms & Conditions 1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page using the advertised hashtag &...

  • Page 3: Table Of Contents

    Contents Before you start... 3 Button clock Personal safety Cooking tips Electrical connection safety Cooking Table Peculiar smells Ventilation Cleaning your cooker Maintenance Troubleshooting Induction care Oven care Installation Hob care Dear Installer Grill/glide-out grill™ care Safety Requirements and Regulations Cooling fan Provision of Ventilation Cooker care...

  • Page 5: Before You Start

    Before you start... CAUTION: Your cooker should give you many years of A long term cooking process • trouble-free cooking if installed and operated has to be supervised from time to time. correctly. It is important that you read this A short term cooking process has to be section before you start.
  • Page 6 The cooker MUST NOT be connected to Fig. 1.1 an ordinary domestic power point. Access to the mains terminal is gained by removing the electrical terminal cover box on the back panel. Connect the mains cable to the correct terminals for your electrical supply type (Fig.

  • Page 7: Peculiar Smells

    Before electrical reconnection, check that DO NOT use cooking vessels on the • • the appliance is electrically safe. hotplate that overlap the edges. ALWAYS allow the cooker to cool and then • Peculiar smells switch it off at the mains before cleaning or When you first use your cooker it may give off carrying out any maintenance work, unless an odour.

  • Page 8: Induction Care

    AGA Rangemaster Induction cookware. DO NOT use the top of the flue (the slots • If you decide to purchase an alternative...
  • Page 9 Take care NOT to scratch the surface when • Fig. 1.3 placing cookware on the glass panel. Only certain types of glass, glass-ceramic, • earthenware or other glazed containers are suitable for hotplate cooking; others may break because of the sudden change in temperature.

  • Page 10: Oven Care

    We recommend that you avoid wiping • Fig. 1.8 any surface unit areas until they have cooled and the indicator light has gone off. Sugar spills are the exception to this (see ‘Cleaning your Cooker’). After cleaning, use ArtNo.324-0001 Steam burst a dry cloth or paper towel to remove any cleaning cream residue.

  • Page 11: Hob Care

    door glass since they can scratch the DO NOT leave utensils, foodstuffs or • surface, which may result in shattering of combustible items on the hob when it the glass. is not in use (e.g. tea towels, frying pans containing oil). Make sure the shelves are pushed firmly •...

  • Page 12: Grill/Glide-Out Grill™ Care

    DO NOT use steel wool, oven cleaning Cleaning • pads or any other materials that will Isolate the electricity supply before • scratch the surface. carrying out any thorough cleaning. Allow the cooker to cool. NEVER store flammable materials in the •...

  • Page 13: Cooker Overview

    Cooker Overview ArtNo.025-0005 - Overview - 90 induction - 2 button clock & GO grill Fig. 2.1 Your 90 induction cooker (Fig. 2.1) has the following features: Fig. 2.2 5 induction cooking zones Control panel A separate grill or glide-out grill (depending on model) Main programmable fan or multifunction oven (depending on model) Tall fan oven...

  • Page 14: Pan Detector

    The very best pans have bases that are very slightly curved Fig. 2.4 up when cold (Fig. 2.3). If you hold a ruler across the bottom you will see a small gap in the middle. When they heat up the Max: 1.85 kW Max: 1.85 kW Max: 1.85 kW...

  • Page 15: Residual Heat Indicator, H

    Residual Heat Indicator, H Auomatic Heat-up Time at Power Level 100% (min:sec) After use, a cooking zone will remain hot for a while as heat 0:48 dissipates. When a cooking zone is switched off the residual heat indicator symbol [H ], will appear in the display. This 2:24 shows that the cooking zone temperature is above 60 °C and 3:50...

  • Page 16: Low Temperature Setting, L1/L2

    Low Temperature Setting, L1/L2 Maximum Operating Time Power Level This function should only be used when heating from cold 2 hours L1 and L2 6 hours Each cooking area is equipped with 2 low temperature settings: 6 hours 5 hours •...

  • Page 17: Glide-Out Grill

    Glide-out grill™ Fig. 2.9 Open the door and pull the grill pan carriage forward using the handle (Fig. 2.9). The grill has two elements that allow either the whole area of the pan to be heated or just the right-hand half. Adjust the heat to suit by turning the knob.

  • Page 18: Ovens

    Ovens Fig. 2.12 The clock must be set to the time of day before the programmable ovens will work. See the following section on ‘The Clock’ for instructions on setting the time of day. References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed from the front of the appliance.

  • Page 19: Accessories

    Accessories Fig. 2.16 Oven Shelves – Left-hand (Main) Oven Shelf guard The oven shelves (Fig. 2.16) are retained when pulled forward but can be easily removed and refitted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig.

  • Page 20: Button Clock

    3 Button clock Using the clock Fig. 3.1 You can use the clock to turn the programmable oven on and off. The clock must be set to the time of day before the oven will work. NOTE: When using the timer functions, first set the clock as ArtNo.306-0001 - 3-button clock required before setting the oven temperature.
  • Page 21 When the ‘stop time’ is reached an alarm will sound and Fig. 3.7 the oven will stop working. The word ‘AUTO’ will flash on the display (Fig. 3.6). Press any button to stop the alarm and return to manual cooking. If the alarm is not stopped, it will stop ArtNo.306-0001 - 3-button clock automatically after 7 minutes.

  • Page 22: Cooking Tips

    Cooking tips Using Your Induction Cooker General oven tips If you have not used an induction cooker before please be The wire shelves should always be pushed firmly to the back aware of the following: of the oven. • Make sure that the pans you have or buy are suitable Baking trays with food cooking on them should be placed for use on the induction hob.

  • Page 23: Cooking Table

    Cooking Table The oven control settings and cooking times given in the table below are intended to be used as a Top (T) guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven.

  • Page 24: Cleaning Your Cooker

    Cleaning your cooker Isolate the electricity supply before carrying out any Fig. 6.1 major cleaning. Then allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –...
  • Page 25 Grills Fig. 6.2 ArtNo.331-0003 Grill frame out, no pan The grill pan and trivet should be washed in hot soapy water. After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush.
  • Page 26 Glass fronted door panels Fig. 6.5 The oven door front panels can be taken off so that the glass panels can be cleaned. Move the cooker forward to gain access to the sides (see the ‘Moving the Cooker’ section under ‘Installation’).
  • Page 27 Cleaning table Cleaners listed (Table 6.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish...

  • Page 28: Troubleshooting

    Troubleshooting DocNo.050-0001 - Troubleshooting - Induction GENERIC Interference with and repairs to the hob MUST NOT The cooling fan be carried out by unqualified persons. Do not try The induction hob incorporates a cooling fan. This cooling to repair the hob as this may result in injury and fan is active when either the grill or the oven(s) are on.
  • Page 29 The oven light is not working Fig. 7.1 The bulb has probably blown. You can buy a replacement bulb (which is not covered under the guarantee) from most electrical stores. Ask for a 40 W – 230 V halogen lamp (G9) (Fig. 7.1). Before removing the existing bulb, turn off the power supply and make sure that the oven is cool.

  • Page 30: Installation

    INSTALLATION Check the appliance is electrically safe when you have finished. Installation Dear Installer You will need the following equipment to complete the cooker installation satisfactorily: Before you start your installation, please complete the details • Multimeter (for electrical checks). below, so that, if your customer has a problem relating to your installation, they will be able to contact you easily.

  • Page 31: Positioning The Cooker

    INSTALLATION Check the appliance is electrically safe when you have finished. Positioning the Cooker Fig. 8.1 ArtNo.090-0028 - 90 cooker min spacing GENERIC Fig. 8.1 and Fig. 8.2 show the minimum recommended 75 mm 75 mm distance from the cooker to nearby surfaces. 650 mm The cooker should not be placed on a base.

  • Page 32: Lowering The Two Rear Rollers

    INSTALLATION Check the appliance is electrically safe when you have finished. Lowering the Two Rear Rollers Fig. 8.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig.

  • Page 33: Electrical Connection

    INSTALLATION Check the appliance is electrically safe when you have finished. Electrical Connection Current Operated Earth Leakage Breakers The combined use of your induction cooker and other The cooker must be installed by a qualified electrician, in domestic appliances may cause nuisance tripping, so we accordance with all relevant British Standards/Codes of recommend that the cooker is protected on an individual Practice (in particular BS 7671), or with the relevant national...

  • Page 34: Final Checks

    INSTALLATION Check the appliance is electrically safe when you have finished. Final Checks Fig. 8.13 Hob Check Check each cooking zone in turn. Be sure to use pans of the ArtNo.350-0010 - Fitting the plinth 1 (Kitchener) correct size and material. Grill Check Turn on the grill control and check that the grill heats up.

  • Page 35: Circuit Diagrams

    Circuit Diagrams Earth On Terminal Block N(6) N(4) On Terminal Block INDUCTION UNIT DISPLAY L(2) L(3) w/br w/br INTERFACE On Terminal Block BOARD w/br w/br w/br The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Colour Code Description Blue...
  • Page 36 Fan Oven P095199 P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill energy regulator Cooling fan Blue Grill front switch Oven light switch Brown Grill elements Oven light...

  • Page 37: 10. Technical Data

    10. Technical Data INSTALLER: Please leave these instructions with the user. DATA BADGE LOCATION: Cooker back, serial number repeater badge below the oven door opening. COUNTRY OF DESTINATION: GB, IE. Connections Electric 230 / 400 V ~ 50 Hz 3N Dimensions Total height Min 905 mm...
  • Page 38 Longstock 90 Induction 900 HOTPLATE WIDTH 659 DEPTH INCLUDING HANDLES 887 PLINTH WIDTH...
  • Page 39 Hotplate Efficiency Data Brand Rangemaster Model Identification Longstock Size Type Induction Type of Hob Induction Number of electric zones Zone 1 - Ø cm 18.5 Heating Technology Energy Consumption (ECElectric cooking) - Wh/kg Zone 2 - Ø cm 15.5 Heating Technology Energy Consumption (ECElectric cooking) - Wh/kg Zone 3 - Ø...
  • Page 40 Oven Data Brand Rangemaster Model identification Longstock Mass Type of oven Electric Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Fanned Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle...
  • Page 41 NOTES...
  • Page 42 NOTES...
  • Page 43 • Has not been repaired by persons or organisations other than those authorised to act on behalf of AGA Rangemaster. Date of Purchase Exceptions: • Items not included under the free 1 year guarantee Installer’s Name &...
  • Page 44 Registered Office: c/o Aga Rangemaster, Meadow Lane, Long Eaton, Nottingham, NG10 2GD Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this brochure should not be regarded as...
