Summary of Contents for Rangemaster Longstock 90

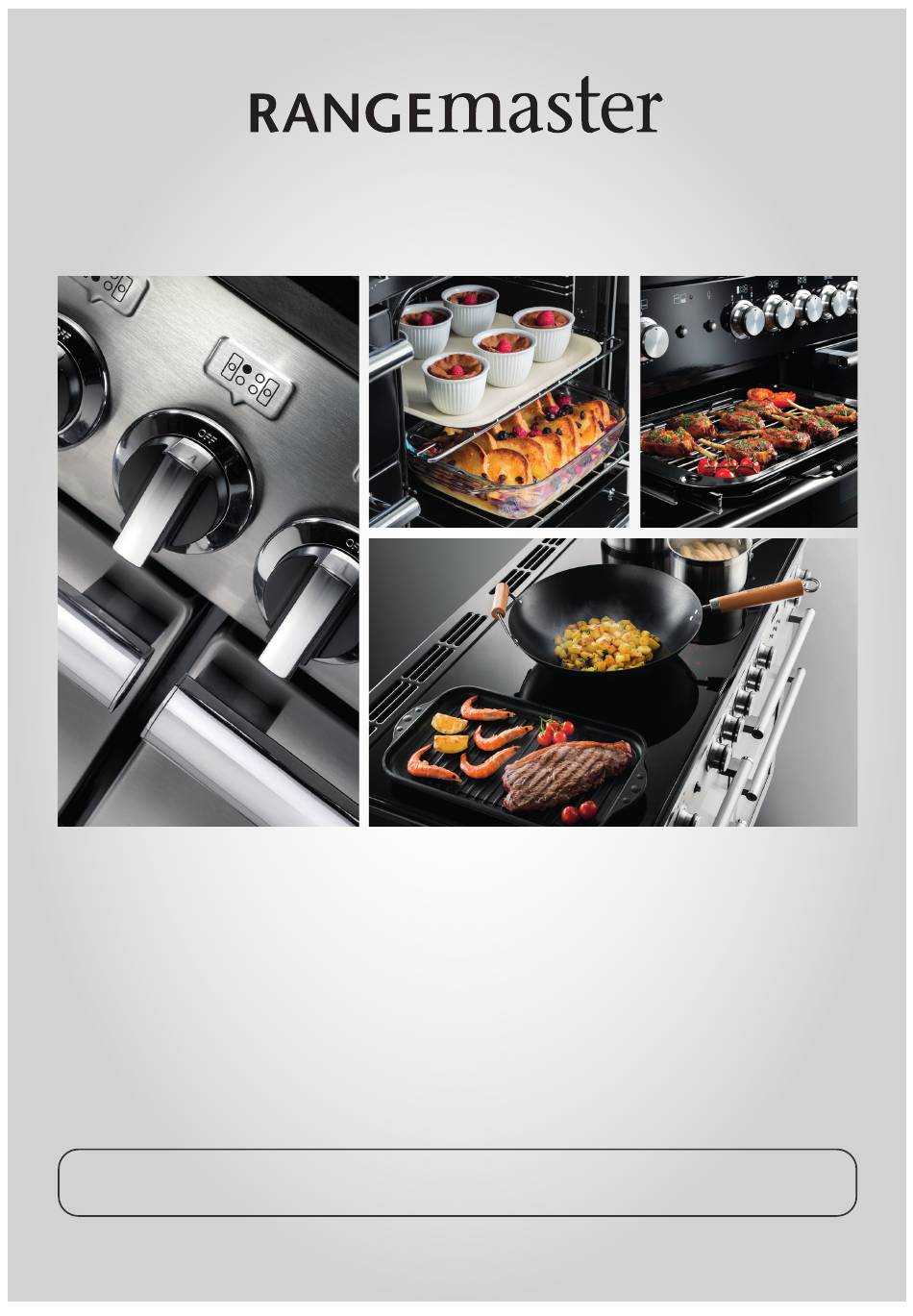

- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS Longstock 90 Dual Fuel U111241 - 01...
- Page 2 Terms & Conditions 1. This is my Rangemaster is open to residents of UK mainland only, aged 18 years & over. 2. All entries should be submitted to the advertised e-mail address, or Rangemaster UK Facebook, Instagram or Twitter page using the advertised hashtag &...
-
Page 3: Table Of Contents
Contents Before You Start... Essential Information Hotplate Burners Personal Safety The Griddle Plate Electrical Connection Safety Glide-out Grill If You Smell Gas Control Panel and Doors Peculiar Smells Ovens Cooling Fan Cleaning table Ventilation Troubleshooting Maintenance Grill/Glide-out Grill™ Care Installation Cooker Care Dear Installer Cleaning... -
Page 4: Before You Start
Before You Start... Your cooker should give you many years of accessible parts become hot during use trouble-free cooking if installed and operated and will retain heat even after you have correctly. It is important that you read this stopped cooking. Care should be taken to section before you start. - Page 5 Access to the mains terminal is gained by Fig. 1.1 removing the electrical terminal cover box on the back panel. Connect the mains cable to the correct terminals for your electrical supply type (Fig. 1.1 and Fig. 1.2). Check that the links are correctly fitted and that the terminal screws are tight.
-
Page 6: If You Smell Gas
If You Smell Gas Maintenance DO NOT turn electric switches on or off It is recommended that this appliance is • • serviced annually. DO NOT smoke • WARNING : Before replacing the bulb, • DO NOT use naked flames •... - Page 7 whenever possible to prevent fat If flammable materials are stored in the • overheating beyond the smoking point. drawer, oven(s) or grill(s) it may explode and result in fire or property damage. WARNING: Unattended cooking on a hob with fat or oil can be dangerous and Oven Care may result in fire.
-
Page 8: Grill/Glide-Out Grill™ Care
DO NOT use a timed oven that is already • Fig. 1.3 warm. Use dry oven gloves when applicable – • using damp gloves might result in steam burns when you touch a hot surface. ArtNo.324-0001 Steam burst Oven Shelves (depending on model) To fit the glide-out shelf, hook the front of the shelf onto the runners as shown (Fig. -
Page 9: Cleaning
NEVER store flammable materials in the Cleaning • drawer. This includes paper, plastic and Isolate the electricity supply before • cloth items, such as cookbooks, plastic carrying out any thorough cleaning. Allow ware and towels, as well as flammable the cooker to cool. liquids. -
Page 10: Cooker Overview
Cooker overview Fig. 2.1 The 90 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 5 hotplate burners including a wok burner Control panel A Glide-out Grill™ A main programmable fan oven. Tall fan oven Hotplate burners The drawing by each of the central knobs indicates which burner that knob controls. -
Page 11: Wok Burner
If, when you let go of the control knob, the burner goes out, Fig. 2.3 then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 12: Griddle
Griddle (optional extra) Fig. 2.11 ArtNo.110-0013 Positioning the griddle on hotplate (right) The griddle fits a single pan support, front to back (Fig. 2.13). It is designed for cooking food on directly. DO NOT use pans of any kind on it. The griddle surface is non-stick and metal cooking utensils (e.g. -
Page 13: Ovens
Ovens Fig. 2.18 The clock must be set to the time of day before the programmable ovens will work. See the following section on ‘The Clock’ for instructions on setting the time of day. References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed from the front of the appliance. -
Page 14: Accessories
Accessories Fig. 2.22 Shelf guard Oven shelves – Left-hand (Main) oven The oven shelves (Fig. 2.22) can be easily removed and refitted. Pull the shelf forward until the back of the shelf is stopped by the shelf stop bumps in the oven sides (Fig. 2.23). Front Lift up the front of the shelf so the back of the shelf will pass under the shelf stop and then pull the shelf forward... -
Page 15: Button Clock
3 button clock Setting the time Reset the minute minder The clock must be set to the time of day before the oven will work Step. 1 Note: The cook Step. 1 symbol [ ] remains visible during normal operation. ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step. - Page 16 To start and stop the oven automatically AUTO is showing, but you want to revert (main oven only) to manual cooking (main oven only) Step. 1 Press [M] button again until current Press either [+] or time is diplayed. [-] buttons ArtNo.306-0001 - 3-button clock ArtNo.306-0001 - 3-button clock Step.
-
Page 17: Cooking Tips
Cooking tips Tips on cooking with the timer General oven tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 18: Cooking Table
Cooking Table The oven control settings and cooking times given in the table below are intended to be used as a Top (T) guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 19: Cleaning Your Cooker
Cleaning your cooker Essential Information Fig. 6.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. NEVER use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. DO NOT mix different cleaning products –... -
Page 20: The Griddle Plate
The Griddle Plate Fig. 6.5 Always clean the griddle plate after use. Allow it to cool completely before removing. Immerse the griddle plate in hot soapy water. Use a soft cloth or, for stubborn stains, a nylon washing up brush. NOTE: If the griddle plate is washed in a dishwasher then some dishwasher residue may appear on the back. -
Page 21: Ovens
Glass Fronted Door Panels Fig. 6.10 The oven door front panels can be taken off so that the glass panels can be cleaned. Move the cooker forward to gain access to the sides (see the ‘Moving the Cooker’ section under ‘Installation’). -
Page 22: Cleaning Table
Cleaning table Cleaners listed are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish Recommended Cleaning Method... -
Page 23: Troubleshooting
Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? Is the clock illuminated? Cooking times may differ from your previous oven. If not, there maybe something wrong with the power supply. Check that you are using the recommended temperatures and shelf positions –... - Page 24 Oven light is not working Fig. 7.1 Fig. 7.2 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 40W - 230V halogen lamp (G9) (Fig.
-
Page 25: Installation
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Installation Dear Installer In the UK the cooker must be installed in accordance with: Before you start your installation, please complete the details below, so that, if your customer has a problem relating to •... -
Page 26: Location Of Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Location of Cooker Checking the Parts: The cooker may be installed in a kitchen/kitchen diner but 3 pan supports Griddle (Optional) NOT in a room containing a bath or shower. This appliance is designed for domestic cooking only. -
Page 27: Positioning The Cooker
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Positioning the Cooker ArtNo.090-0009 - 90 2BC cooker min spacings Fig. 8.1 Fig. 8.1 and Fig. 8.2 show the minimum recommended 75 mm 75 mm distance from the cooker to nearby surfaces. 650 mm The cooker should not be placed on a base. -
Page 28: Lowering The Two Rear Rollers
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Lowering the Two Rear Rollers Fig. 8.5 To adjust the height of the rear of the cooker, first fit a 13 mm spanner or socket wrench onto the hexagonal adjusting nut (Fig. -
Page 29: Levelling
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Levelling Fig. 8.11 You are recommended to use a spirit level on a shelf in one of Pipework Pipework the ovens to check for level. Place the cooker in its intended position taking care not to twist it within the gap between the kitchen units as damage may occur to the cooker or the units. -
Page 30: Electrical Connection
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Electrical Connection Current Operated Earth Leakage Breakers The combined use of your cooker and other domestic The cooker must be installed by a qualified electrician, in appliances may cause nuisance tripping, so we recommend accordance with all relevant British Standards/Codes of that the cooker is protected on an individual RCD (Residual... -
Page 31: Final Fitting
INSTALLATION Check the appliance is electrically safe and gas sound when you have finished. Final Fitting Fig. 8.15 Fitting the Plinth Fit the inner plinth to the bottom front of the cooker using ArtNo.350-0010 - Fitting the plinth 1 (Kitchener) the 4 screws provided (Fig. -
Page 32: Circuit Diagram
Circuit Diagram Longstock P095199 P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Component positions viewed from the front of the cooker Code Description Code Description Code Colour Grill front switch Oven fan Blue Grill energy regulator... -
Page 33: 10. Technical Data
29 mbar 230/400 V 50 Hz Propane 37 mbar See the appliance badge for test pressures. Dimensions Model Longstock 90 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 900 mm Overall depth 608 mm excluding handles, 670 mm including handles... - Page 34 Hotplate Efficiency Brand Rangemaster Model Identification Longstock Size Type Dual Fuel Type of Hob Number of gas burners Auxiliary / Small Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner) Semi Rapide / Medium Burner (EE gas burner)
- Page 35 Oven Data Brand Rangemaster Model identification Longstock Mass Type of oven Electric Number of cavities Left-hand Efficiency Fuel type Electric Cavity type Fanned Power - conventional Power - forced air convection Volume Litres Energy consumption (electricity) - conventional kWh / cycle...
- Page 36 NOTE...
- Page 37 NOTE...
- Page 38 NOTE...
- Page 39 • Has not been repaired by persons or organisations other than those authorised to act on behalf of AGA Rangemaster. Date of Purchase Exceptions: • Items not included under the free 1 year guarantee Installer’s Name &...
- Page 40 Registered Office: c/o Aga Rangemaster, Meadow Lane, Long Eaton, Nottingham, NG10 2GD Rangemaster continuously seeks improvements in specification, design and production of products and thus, alterations take place periodically. Whilst every effort is made to produce up-to-date literature, this brochure should not be regarded as...
