Summary of Contents for Martec Scorpion MSF133

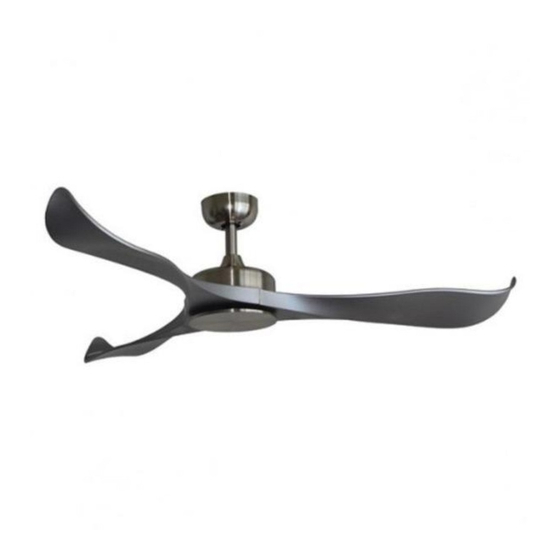

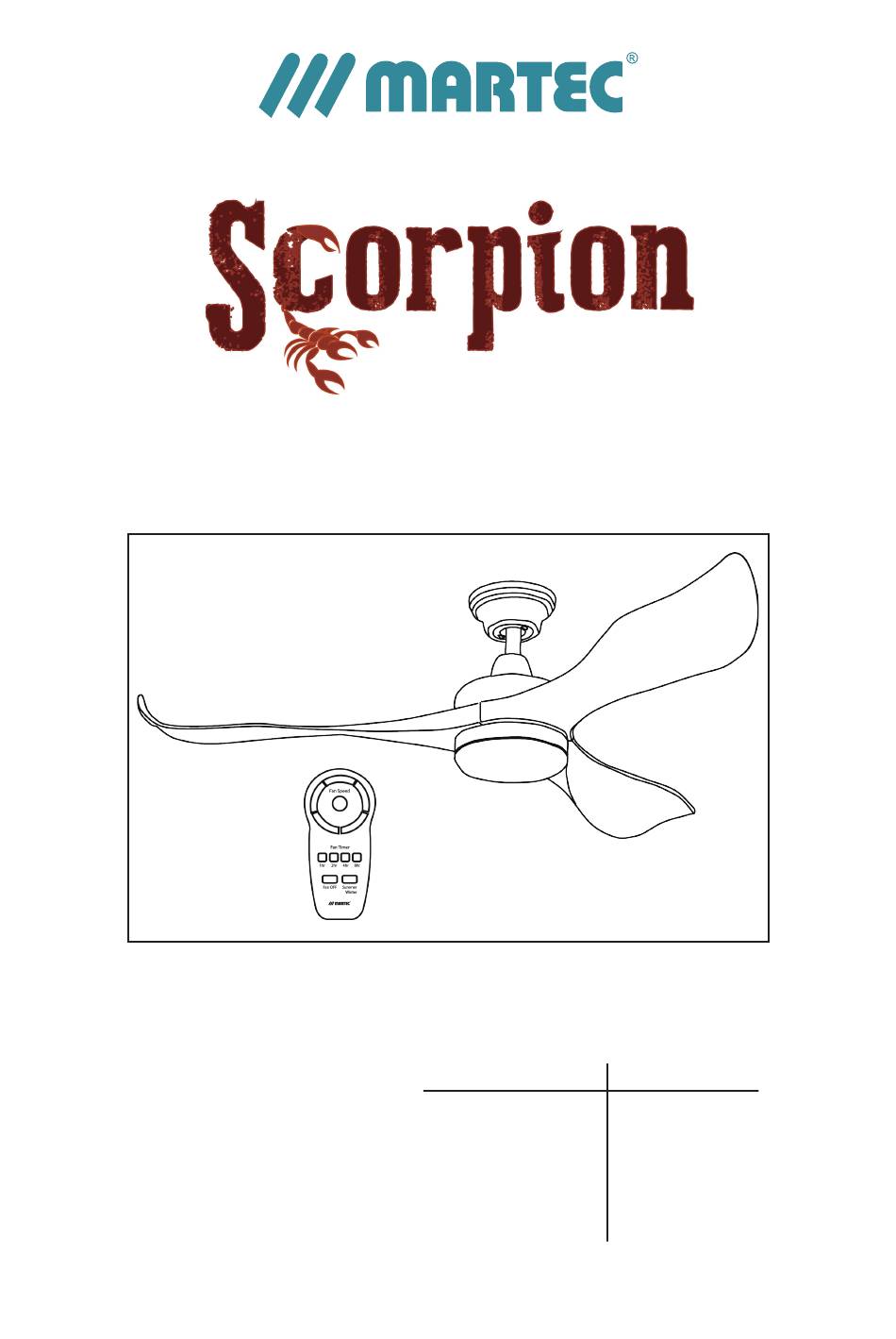

- Page 1 Elite Series Ceiling Fan Instruction Book Models: MSF133 MSF1333 Contents List: DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Blades...
- Page 2 Ltd and supplied within this package, as this will void warranty. WARNING Only approved Martec Pty Ltd wall controllers should be used for the operation of our fans. The use of unauthorised controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced if damaged.
- Page 3 Page 2 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
-
Page 4: How To Assemble
HOW TO ASSEMBLE Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with two long screws as supplied within the package. (See Fig.1.) Place fan into hanger bracket and align Ball Joint Slot with hanger bracket as illustrated. - Page 5 HOW TO REMOVE THE SHADE FOR INSTALLING LED LIGHT PLATE (Version with lights) Turn anticlockwise to remove the shade. (See Fig.5.) Fig.5 CCT (Colour changeable temperature) Please make sure the switch is off before changing the colour temperature. Simply flick the switch on the LED plate (See Fig.6.) to select the desired colour temperature (3000K, 4000K or 5000K).
- Page 6 Page 5 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
- Page 7 INSTALLATION SCHEMATIC DIAGRAM FOR RECEIVER INSTRUCTIONS AND FUNCTIONS OF TRANSMITTER LED indicator light Light ON/OFF (use to switch dim the LED light within 1 second) Speed of the fan (1 high speed – 5 low speed) Timing control of the fan Direction of the fan (reverse switch) Fan ON/OFF 12V battery should be used in Transmitter...
-
Page 8: Important Reminders
INSTALLING RECEIVER REMOTE CONTROL IMPORTANT: PAIRING BETWEEN REMOTE AND RECEIVER Turn “ON” the power supply and within 30 seconds press and hold the transmitters “FAN ON/OFF” button for 5 seconds and a “beep” will be heard this will then activate a successful pairing and all functions will work normally. - Page 9 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 10 NOTE: Stainless steel requires regular cleaning; “Tea Staining” is a common occurrence with all types of stainless steel. This is not considered a fault of the product and is not covered under warranty. Martec’s Precision 316, while made from Marine Grade 316 stainless steel, should only be used in a covered or enclosed outdoor environment as the fan is not hermetically sealed and will eventually rust internally.
- Page 11 ................................................................................. I, the Customer, hereby acknowledge that I have read and agree with the Martec Pty Ltd warranty statement and the conditions found within regarding the warranty service and its limitations. I, the Customer, acknowledge that Martec Pty Ltd reserves the right to charge me, the...
