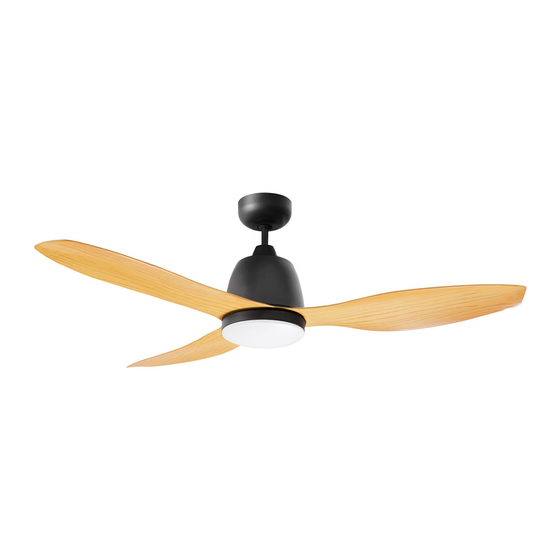

- Page 1 Elite Series Ceiling Fan Instruction Book Models: MEF133 MEF1333 Contents List: DESCRIPTION QUANTITY Motor assembly Instruction manual Screw kit Balancing kit Hanging bracket Wall control kit Blades...
-
Page 2: Important Safeguards
Ltd and supplied within this package, as this will void warranty. WARNING Only approved Martec Pty Ltd wall controllers should be used for the operation of our fans. The use of unauthorised controllers will void the warranty. DO NOT mix blades from one fan to another. All blades must be replaced if damaged. - Page 3 Without Light With Light Page 2 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
-
Page 4: How To Assemble
HOW TO ASSEMBLE Secure the hanger bracket to ceiling beam or a suitable piece of timber inserted between the ceiling beams. Martec Pty Ltd recommends the bracket to be attached with two long screws as supplied within the package. (See Fig.1.) Place fan into hanger bracket and align Ball Joint Slot with hanger bracket as illustrated. - Page 5 HOW TO INSTALL THE LIGHT KIT PLATE (Version with light) As shown in the figure below, lock the light kit plate on the light kit plate connector. Light Kit Plate Connector Light Kit Plate HOW TO INSTALL THE FACE PLATE (Version without light) As shown in the figure below, BEFORE PRESSING, the screens of the face plate should be aligned with the blade gap.
- Page 6 HOW TO REMOVE THE SHADE FOR INSTALLING LED LIGHT PLATE (Version with lights) Turn anticlockwise to remove the shade. (See Fig.5.) Fig.5 CCT (Colour changeable temperature) Please make sure the switch is off before changing the colour temperature. Simply flick the switch on the LED plate (See Fig.6.) to select the desired colour temperature (3000K, 4000K or 5000K).
- Page 7 Page 6 02 8778 7500 sales@martecltd.com.au www.martecaustralia.com.au...
- Page 8 Martec Pty Ltd service network. The Martec Pty Ltd service network is defined at our discretion, yet is limited by the boundary of the city in which you live. Travel outside of the city limits by the Martec Pty Ltd authorised service agent will incur commercial costs to be paid for by the purchaser at a rate calculated by the number of kilometres travelled beyond the city limits.
- Page 9 With the exception of the Precision Stainless Steel 316 ceiling fan, none of Martec’s Ceiling Fans are meant for outdoor use, and will either rust or encounter problems which are not covered within this warranty.
- Page 10 ................................................................................. I, the Customer, hereby acknowledge that I have read and agree with the Martec Pty Ltd warranty statement and the conditions found within regarding the warranty service and its limitations. I, the Customer, acknowledge that Martec Pty Ltd reserves the right to charge me, the...
