Kingston DC Smart Series Installation Guide
Thanks for choosing our Kingston DC Smart Series ceiling fan.
We strongly recommend that you read this manual carefully before installation.
Models Parameters (Fan Only):
MKDC124OB

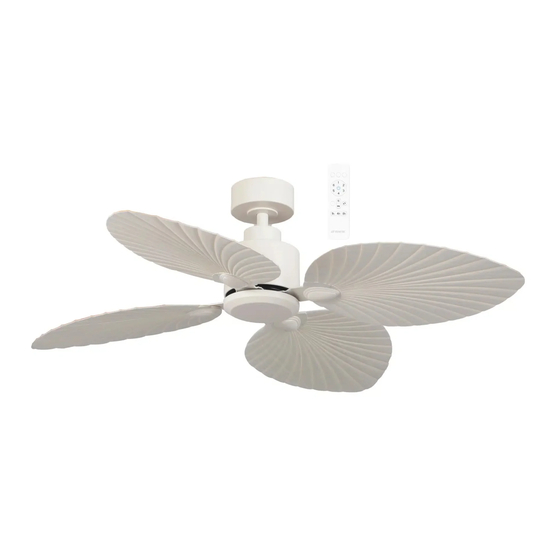

1265mm 4 Blade DC WiFi Ceiling Fan Old Bronze
MKDC124W
1265mm 4 Blade DC WiFi Ceiling Fan Matt White
Models Parameters (Fan and LED Light):
MKDC1243OB
1265mm 4 Blade DC WiFi Ceiling Fan Old Bronze with light
MKDC1243W
1265mm 4 Blade DC WiFi Ceiling Fan Matt White with light

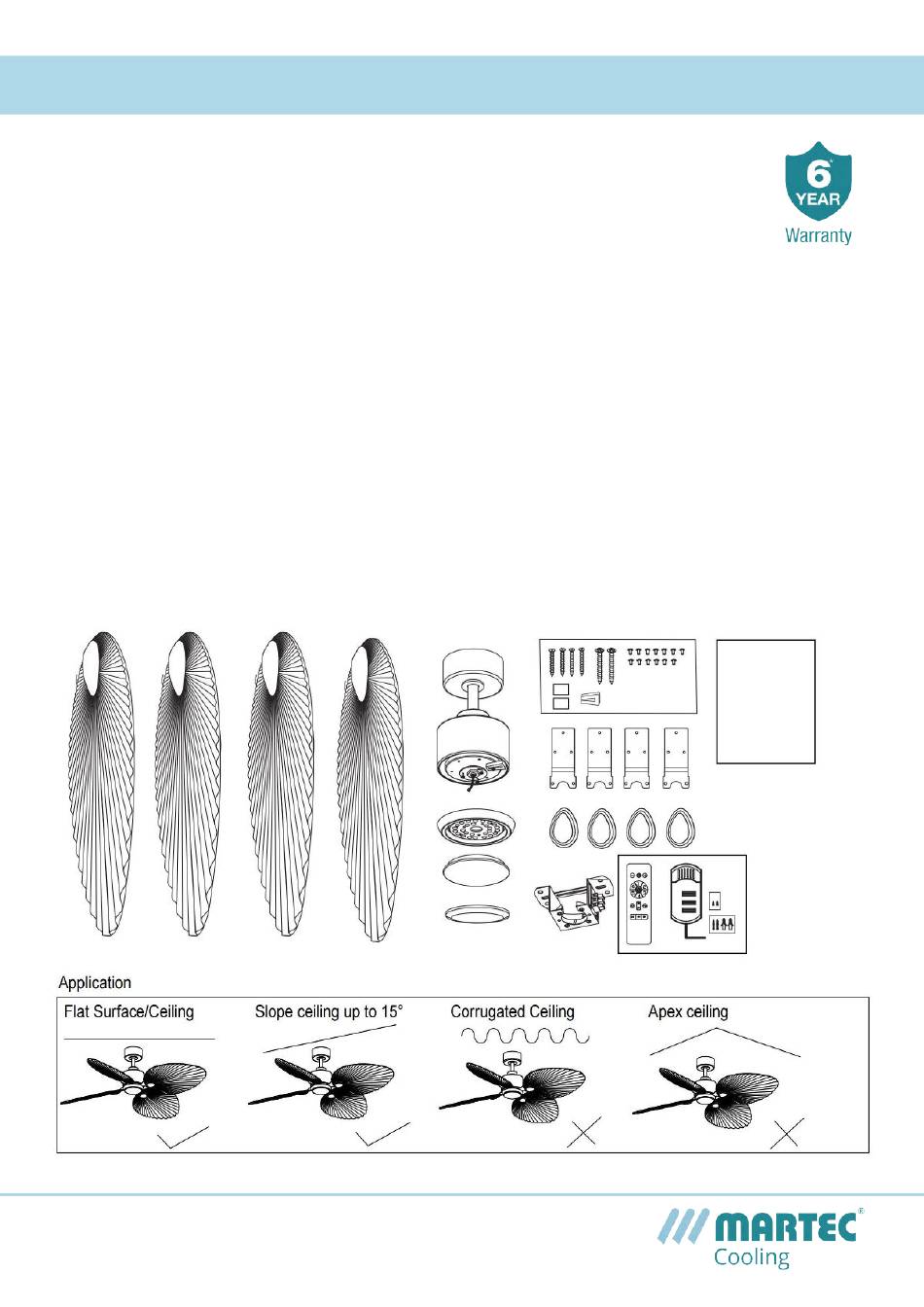

Part List:
Qty 1 x Motor assembly
Qty 1 x Mounting bracket
Qty 1 x Screw kit
Qty 4x Blades
E: sales@martecltd.com.au IP: 02 8778 7500
www.martecaustralia.com.au
Qty 1x Instruction manual
Qty 1 x Remote & Receiver
Qty 4xBlade support part
Qty 4xBlade bracket
Qty 1 x LED light kit (with light models only)
Qty 1x Acrylic lampshade(with light models only)
Qty 1x Bottom plate (no light models only)
