Quick Start
D
ESCRIPTION

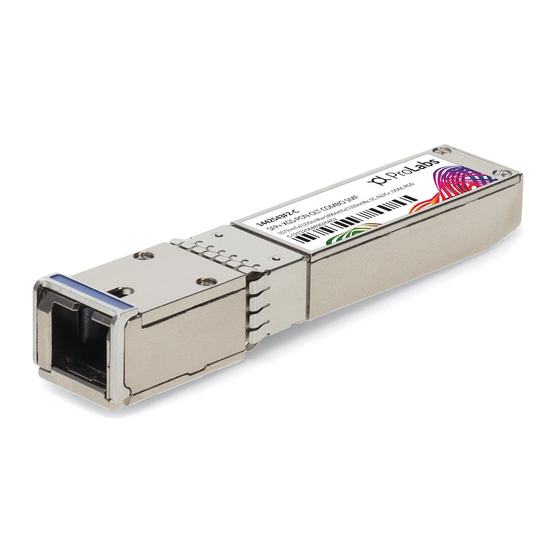

The Combo PON D2 Small Form-factor Pluggable (SFP+)
combines the 10 G XGS-PON OLT and GPON OLT optical trans-
ceiver into a single-mode fiber SFP+. The SFP+ provides a single
optical interface to a physical interface and provides an XGS-PON
and a GPON interface to the supporting system when installed
into an appropriate module or system.
Both the XGS-PON and GPON optical burst mode receivers
incorporate APD/TIA optics for maximum sensitivity. The XGS-
PON transmitter incorporates a 1577 nm EML laser assembly and
the GPON transmitter incorporates a 1490 nm DFB laser
assembly. The SFP+ is designed to support extended ranges
within the optical distribution network of up to 37 km. It is FDA 21
CFR1040.10 and IEC 60825-1 Class I laser safety compliant and
meets the EU RoHS Directive.
This SFP+ supports the following features:
■
ODN Class D2 (N2/C+) Transceiver
■
Data rates:
♦
XGS-PON 10 G down/10 G up
♦
GPON 2.5 G down/1.25 G up
■
XGS-PON Optical Receive Wavelength: 1270 nm
■
XGS-PON Optical Transmit Wavelength: 1577 nm
■
GPON Optical Receive Wavelength: 1310 nm
■
GPON Optical Transmit Wavelength: 1490 nm
■
Hot Pluggable
Applications:
■
GPON, XGS-PON, and Combined GPON/XGS-PON Access
Networks
■
Fiber to the Premises (FTTP)
■
Fiber to the Building (FTTB)
■
Fiber to the Curb (FTTC)
■
Fiber to the Distribution Point (FTTDP)
Due to compliance certification requirements, use only pluggable
optics supplied by Adtran. Adtran cannot certify system integrity
with other pluggable optics.
Adtran Pluggable Optics
Combo PON D2 SFP+
For OLT
I
NSTALLATION
Before installing the equipment, inspect the SFP+. If damage has
occurred during shipping, file a claim with the carrier, and then
contact Adtran Customer Support. For more information, refer to
the warranty.
Installation Steps
To install the SFP+ into an appropriate device, complete the
following steps:
g
NOTE
Do not remove the protective dust cover from the SFP+ until the
fiber optic cable is ready to be connected.
1. Insert the SFP+ into the SFP+ cage on the module.
2. Slide the SFP+ all the way into the SFP+ cage until there is
an audible "click".
g
NOTE
■
Orientation of the SFP+ will vary depending on the module.
■
The latch on the SFP+ is for removal only. When removing the
SFP+, rotate the latch away from the SFP+. It should easily
slide out of the cage.
3. Continue the installation and turn-up of the host module
using the instructions in the Job Aid or Quick Start provided
with the module or other system-level documentation
available online at www.adtran.com.
April 2022
61442543F2-13B
P/N: 1442543F2
