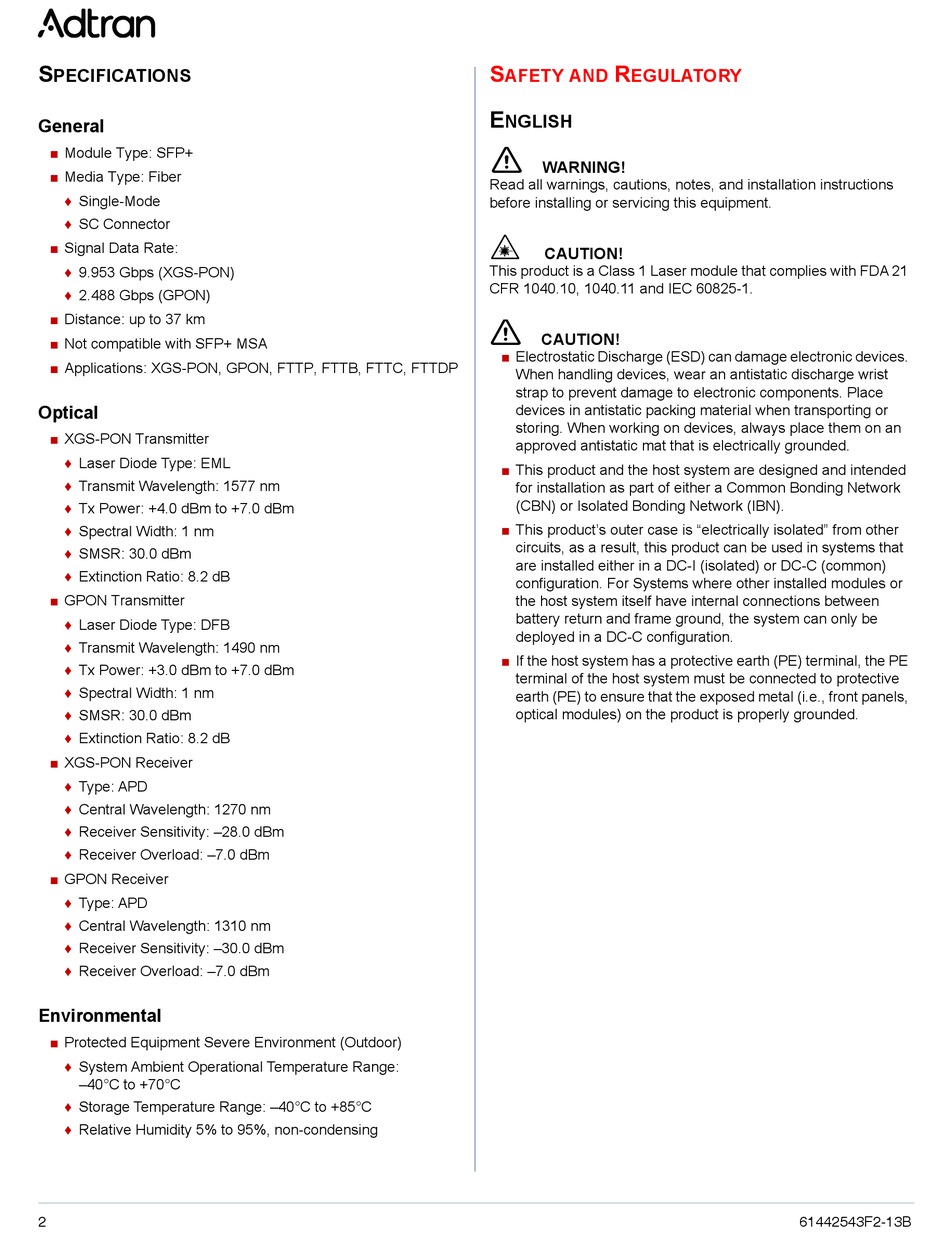

ADTRAN Combo PON D2 SFP+ Quick Start page 2

S
PECIFICATIONS
General
■ Module Type: SFP+
■ Media Type: Fiber
♦
Single-Mode
♦ SC Connector
■
Signal Data Rate:
♦ 9.953 Gbps (XGS-PON)
♦
2.488 Gbps (GPON)
■ Distance: up to 37 km
■ Not compatible with SFP+ MSA
■ Applications: XGS-PON, GPON, FTTP, FTTB, FTTC, FTTDP
Optical
■ XGS-PON Transmitter
♦
Laser Diode Type: EML
♦ Transmit Wavelength: 1577 nm
♦ Tx Power: +4.0 dBm to +7.0 dBm
♦
Spectral Width: 1 nm
♦ SMSR: 30.0 dBm
♦ Extinction Ratio: 8.2 dB
■ GPON Transmitter
♦ Laser Diode Type: DFB
♦ Transmit Wavelength: 1490 nm
♦
Tx Power: +3.0 dBm to +7.0 dBm
♦ Spectral Width: 1 nm
♦ SMSR: 30.0 dBm
♦
Extinction Ratio: 8.2 dB
■ XGS-PON Receiver
♦ Type: APD
♦
Central Wavelength: 1270 nm
♦ Receiver Sensitivity: –28.0 dBm
♦ Receiver Overload: –7.0 dBm
■ GPON Receiver
♦ Type: APD
♦ Central Wavelength: 1310 nm
♦
Receiver Sensitivity: –30.0 dBm
♦ Receiver Overload: –7.0 dBm
Environmental
■
Protected Equipment Severe Environment (Outdoor)
System Ambient Operational Temperature Range: 
♦
–40°C to +70°C
♦ Storage Temperature Range: –40°C to +85°C
♦ Relative Humidity 5% to 95%, non-condensing
2
S R
AFETY AND EGULATORY
E
NGLISH
f
WARNING!
Read all warnings, cautions, notes, and installation instructions
before installing or servicing this equipment.
C
CAUTION!
This product is a Class 1 Laser module that complies with FDA 21
CFR 1040.10, 1040.11 and IEC 60825-1.
f
CAUTION!
■ Electrostatic Discharge (ESD) can damage electronic devices.
When handling devices, wear an antistatic discharge wrist
strap to prevent damage to electronic components. Place
devices in antistatic packing material when transporting or
storing. When working on devices, always place them on an
approved antistatic mat that is electrically grounded.
■ This product and the host system are designed and intended
for installation as part of either a Common Bonding Network
(CBN) or Isolated Bonding Network (IBN).
■ This product's outer case is "electrically isolated" from other
circuits, as a result, this product can be used in systems that
are installed either in a DC-I (isolated) or DC-C (common)
configuration. For Systems where other installed modules or
the host system itself have internal connections between
battery return and frame ground, the system can only be
deployed in a DC-C configuration.
■ If the host system has a protective earth (PE) terminal, the PE
terminal of the host system must be connected to protective
earth (PE) to ensure that the exposed metal (i.e., front panels,
optical modules) on the product is properly grounded.
61442543F2-13B
