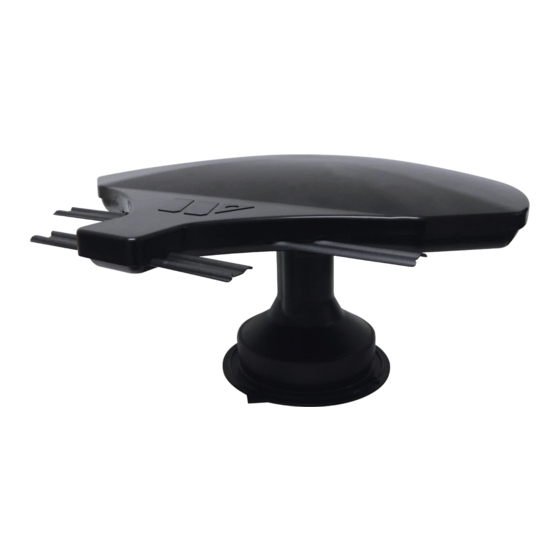

Winegard RZ-6035 Operation Manual

Amplified Local HD and Digital Broadcast TV antenna
for VHF UHF digital and HD TV channels
&
Operation Guide
Models RZ-6000 White and RZ-6035 Black

OPERATION

1. Ensure the antenna power supply is in the "ON"
position and the green indicator light is illuminated.
2. Follow the instructions from the TV manufacturer to
perform a channel scan on the TV. Make certain to
scan in Air or Antenna mode.
3. If few or no channels are found, push up on
the handle, and rotate the handle 90 degrees
counter- clockwise. Perform a second channel
scan according to instructions in step 2. Repeat as
needed until channels are found.
4. To improve the number of received channels and/
or picture quality, fine-tune between and around the
two scan points by slowly rotating the handle and
performing additional channel scans.
5. When finished using the antenna, place the antenna
in travel position by rotating the handle clockwise
as indicated by the arrow on the ceiling plate. Rotate
until the antenna hits the hard stop and will not rotate
any further. Turn off the antenna power supply.
TIP: Check out antennaweb.org to help locate or fine-tune specific channels
in your area by inputting the zip code of your current location.
TIP: Running a channel scan is NOT the same as pressing Channel UP/DOWN
on your remote.

HOW TO RUN A CHANNEL SCAN

Using the television remote, select "Menu" and then
"Settings." Then, select "Channel Setup." Select
"Antenna" or "Air," depending on your TV. Make sure
you are not on "Cable." Select "Channel Search" or
"Channel Scan." Keep in mind that steps to perform a
channel scan may vary. If the wording in your TV differs
from the options shown, refer to your TV user manual
for help.
Scan.
Perform Channel Scan
Select Menu then Channel
Search
Watch.
Move antenna and rescan to find the
most channels within range. Scan
monthly for programming updates.
2452370
Rev2 2-17
