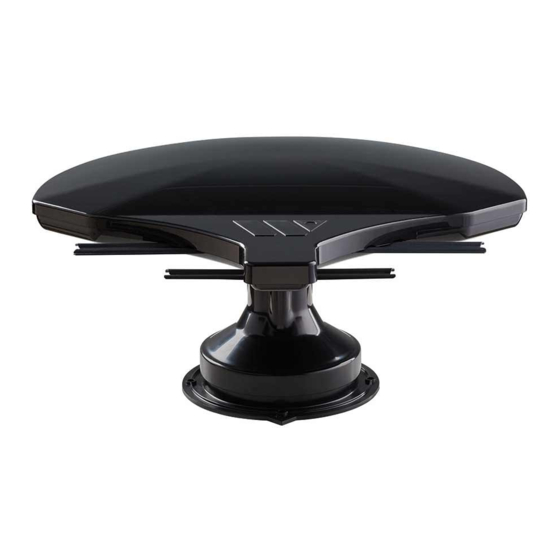

Amplified Local HD and Digital Broadcast TV Antenna
for VHF & UHF Digital and HD TV Channels

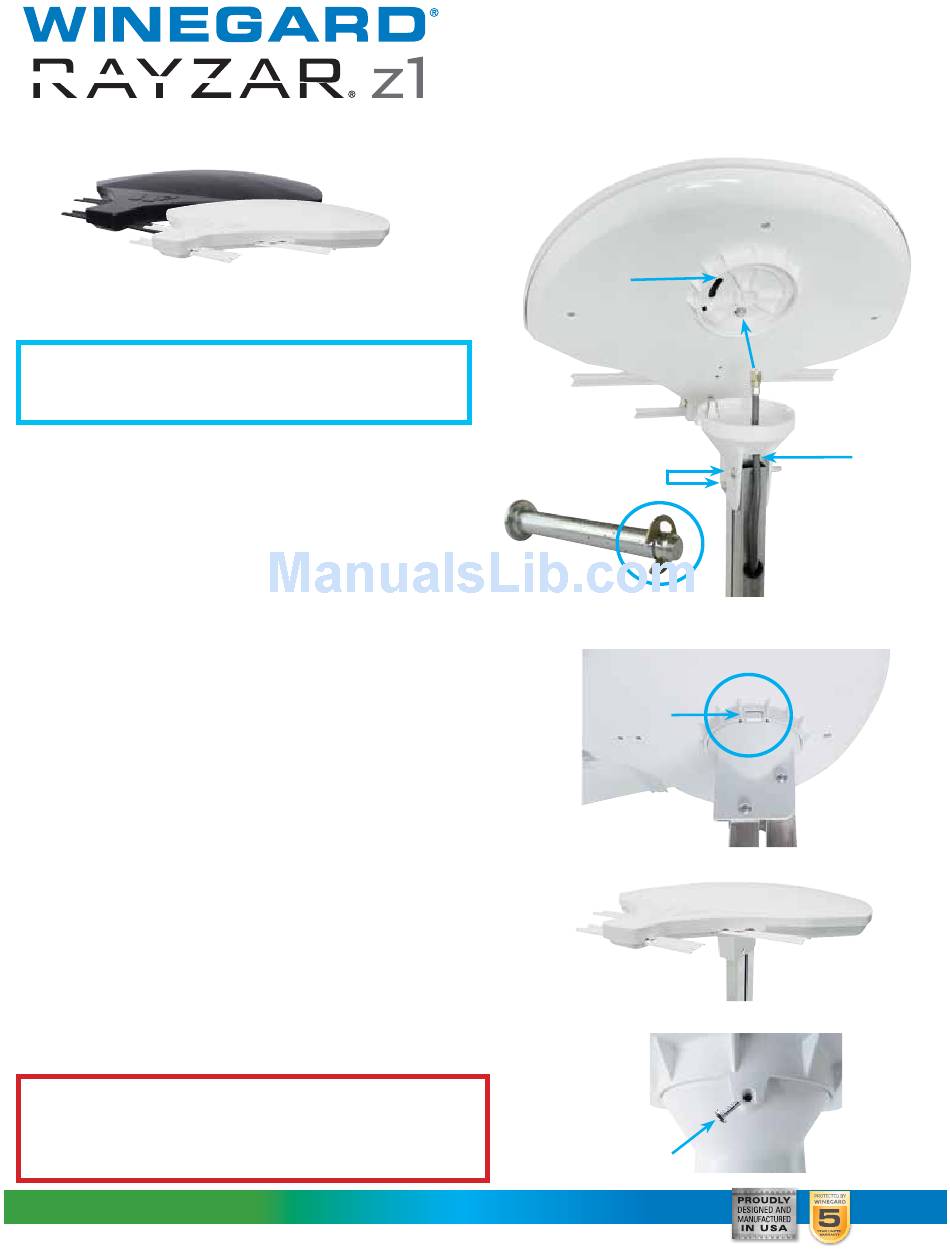

INSTALLATION ON EXISTING
CRANK-UP ANTENNA
NOTE:
Before installation, ensure antenna has enough
space to stow around existing booms. A minimum
clearance of 8" on both sides is required.
1.
Crank existing antenna into up position.
2.
Disconnect existing coax cable from antenna head,
and remove pins/e-clips that secure the existing
antenna's bracket to the elevating booms. Remove the
existing antenna head.
3.
Position the Rayzar z1 adapter so the holes on the
bracket are aligned with the holes on the booms.
Insert both pins through adapter and booms. Fasten
e-clips in place on pins. Ensure the e-clips are properly
secured into the groove on the pin.
4.
Thread the existing coaxial cable through the gap in
the adapter.
5.
Attach the coaxial cable to the Rayzar z1 antenna
head. Tighten by hand - DO NOT OVERTIGHTEN.
6.
Align slot on underside of Rayzar z1 head with post on
bracket. Gently push down on head and twist counter-
clockwise to lock head onto bracket.
7.
Ensure locking tab on bracket is aligned and snapped
into place with opening on antenna head base.
8.
Once locking tab is engaged, on the opposite side of
base, ensure screw hole and screw alignment feature
on the antenna head are lined up as pictured. Insert
screw into hole and tighten. Gently pull up on antenna
head to ensure head is firmly locked in place.
WARNING:
FAILURE TO PROPERLY SECURE ADAPTER
OR ANTENNA AS INSTRUCTED ABOVE COULD RESULT
IN THE ANTENNA BECOMING SEPERATED DURING TRAVEL
AND POTENTIALLY CAUSING INJURY OR DEATH.
Register your product at winegard.com/myantenna
Manuel disponible en français au www.winegard/support
Antenna Head
Installation Guide
Models RZ-5000 White and RZ-5035 Black
6
3
7
8
5
4
2452371
Rev4 2-17
