Ergomotion ErgoPlatform Setup Manual

ErgoPlatform
Parts*
Legs (6) * Optional headboard brackets can be
purchased by calling customer service.
Always use two people when setting up, moving
1
or flipping base.
Place bed base box in a desired location with
bottom of box facing up. Remove binding straps
and packing materials, making sure not to puncture
box with any sharp objects.
Remove the bed base from the box. Unfold the bed
2
making sure to keep the underside facing up.
Note: Legs will arrive in 6-inch leg segments. Two
3
6-inch segments can be screwed together to achieve
a total leg height of 12 inches. Each 6-inch segment
can also be taken apart to achieve leg heights of 3
inches or 9 inches.
To install the legs, thread the washer over the screw
on the leg. Next, screw the leg into the nutsert on the
frame. Do not over-tighten.
Setup Guide:

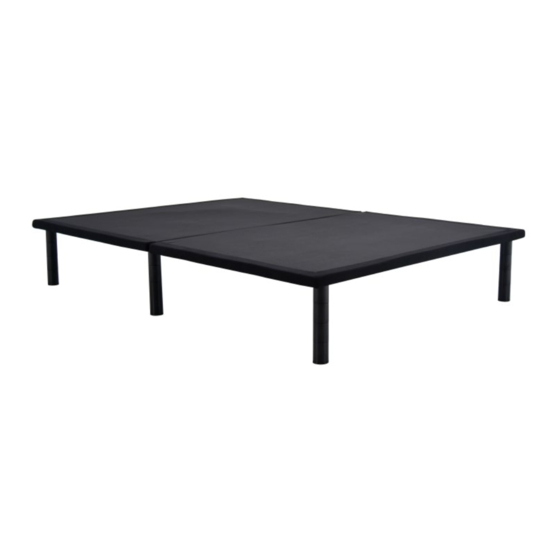

Carefully flip the base over onto its legs.
4
Important: Always use two people when setting
up, moving or flipping the base.Do not drag across
the floor. Do not rest frame on its side, excessive
pressure may damage the legs.
Setup is now complete!
T/TL/CKS/F/Q
See next page for King Setup
1
