4 Maintenance
These instructions have been approved by the TE Design, Production, and Quality Control Engineers to
provide documented maintenance and inspection procedures. Through TE test laboratories and the inspection
of production assembly, the procedures in this manual have been established to ensure the quality and
reliability of Cordless Electric Power Tool 1976330-1.
4.1 Charging the battery pack
To remove the battery pack, push the release button on the battery pack. Pull the pack out and replace with a
fully-charged pack.
CAUTION
The cavity in the tool is keyed to prevent the battery pack from being installed incorrectly. Do not attempt to defeat this keying
feature. Incorrect installation of the battery pack can damage the tool.
DANGER
Keep fingers away from the crimping area when changing the battery pack.
To charge the battery pack, make sure that the charging unit is plugged in, then insert the pack into the
charging unit as shown in Figure 10. The charger indicator becomes green when the battery pack is fully
charged. A full charge takes about 30 minutes.
Rev E

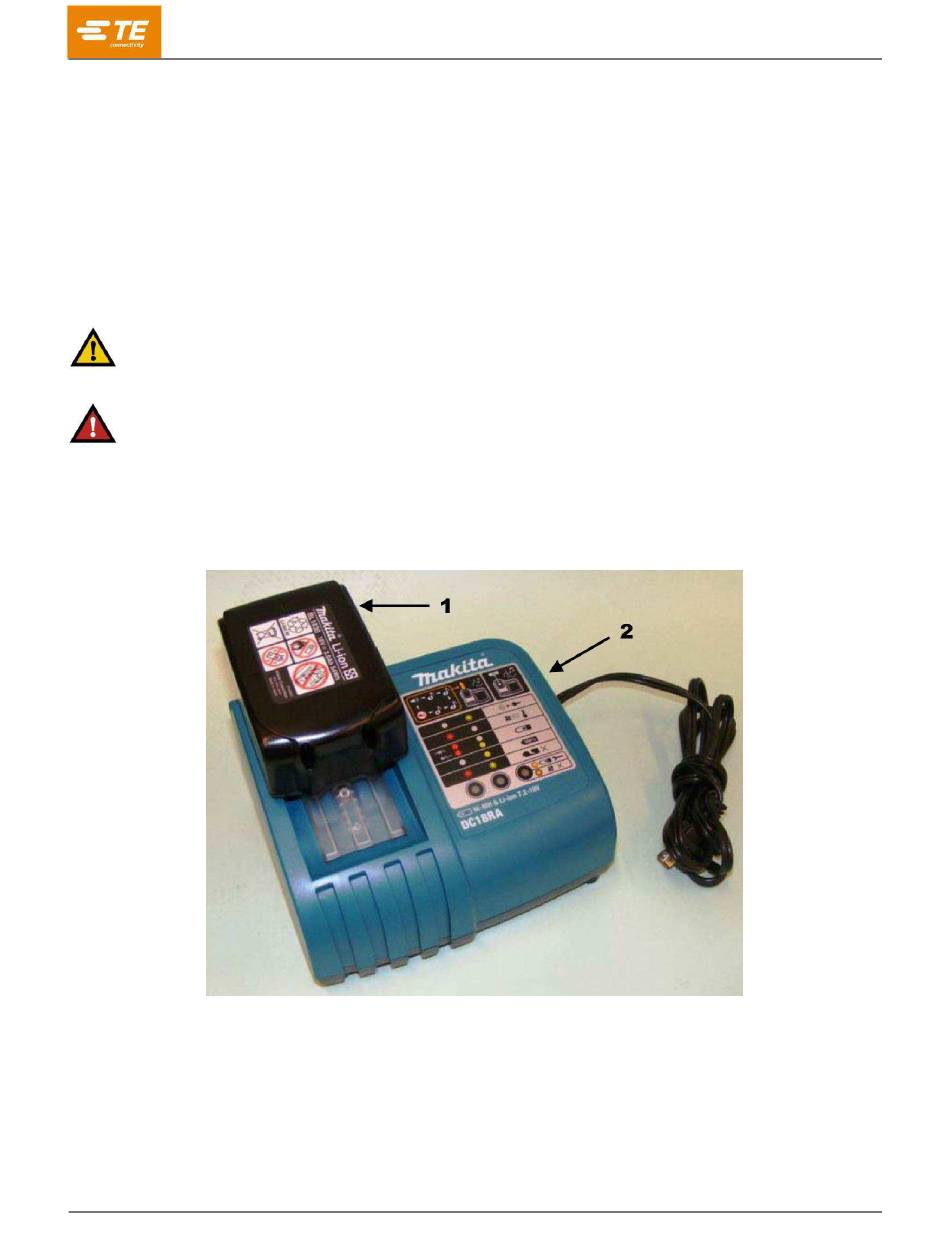

Figure 10: Charging the battery pack
Battery pack
1
Charging unit
2
409-10104
14 of 18
