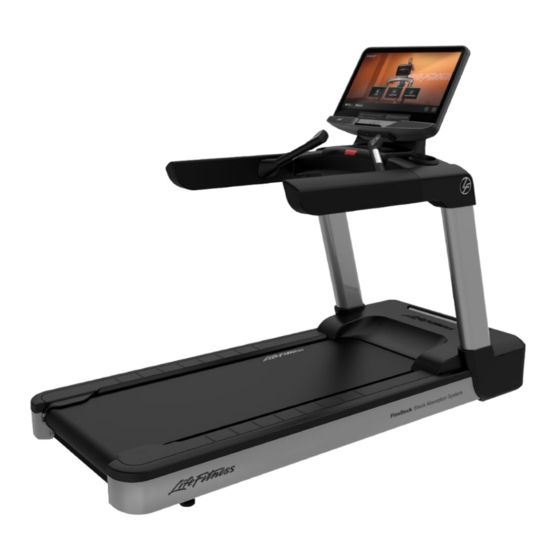

Integrity Treadmill, SE4 and SL
Console
INT-DSE4, INT-SSE4, CST-DE4, INT-DSL, CST-DSL, INTDSE, INTDST,
INTTRD, INT-TRD-B1, INT-TRD-CS, INT-TRD-CS-B1, CST-DST, CST-DE,
INTSSL, INTSSE, INTSST, PF-INT-TRD, PF-INT-TRD-02, PF-INT-TRD-11, PF-
INTSSL-ALLXM-11, INTOTF, OT-INT-TRD) Club Series+ Integrity
Treadmills
Service Manual
REV March 16, 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Life Fitness INT-DSE4
Summary of Contents for Life Fitness INT-DSE4

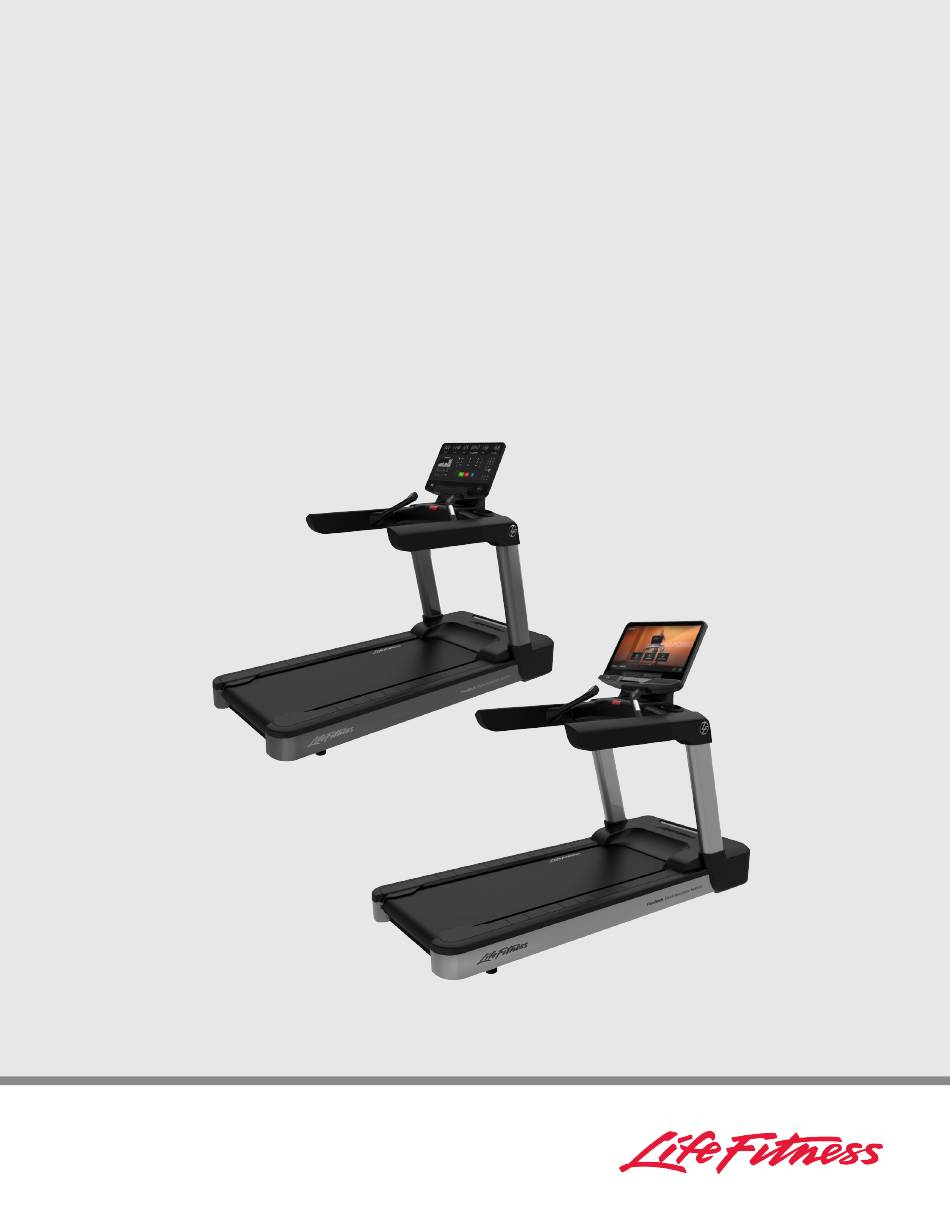

- Page 1 Integrity Treadmill, SE4 and SL Console INT-DSE4, INT-SSE4, CST-DE4, INT-DSL, CST-DSL, INTDSE, INTDST, INTTRD, INT-TRD-B1, INT-TRD-CS, INT-TRD-CS-B1, CST-DST, CST-DE, INTSSL, INTSSE, INTSST, PF-INT-TRD, PF-INT-TRD-02, PF-INT-TRD-11, PF- INTSSL-ALLXM-11, INTOTF, OT-INT-TRD) Club Series+ Integrity Treadmills Service Manual REV March 16, 2023...
- Page 3 Latin America and Caribbean* Germany, Austria, and Switzerland Hong Kong Life Fitness, LLC Life Fitness Europe GMBH Life Fitness Asia Pacific LTD 10601 W Belmont Ave Neuhofweg 9 26/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 85716 Unterschleißheim...
-
Page 4: Table Of Contents
Copyright 2023, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are subject to change. -
Page 5: Safety Instructions
• Life Fitness Family of Brands does not warrant nor guarantee that component parts used in the manufacture of products offered under the Life Fitness Family of Brands are latex-free. Users of these products must take all necessary precautions to prevent accidental contact that could lead to an adverse latex reaction. - Page 6 • Allow LCD consoles to “normalize” with respect to temperature for one hour before plugging the unit in and using. • When the product is not in use, Life Fitness recommends unplugging the product. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts. To disconnect, turn power OFF at the ON/OFF switch, then remove plug from electrical outlet.
-
Page 7: Immobilization Method - Integrity Sl
Immobilization Method - Integrity SL - Treadmill The purpose of immobilizing the treadmill is to prevent unauthorized use. The system causes immobilization of the treadmill when activated. 1. Enter Manager's Configuration: • Press the SPEED UP / DOWN arrow keys in the following sequence: UP, DOWN, UP, DOWN. •... -
Page 8: Immobilization Method - Discover Se4
Immobilization Method - Discover SE4 Console The purpose of immobilizing the unit is to prevent unauthorized use. The system causes immobilization of the unit when activated. 1. Tap the LANGUAGE icon on the ATTRACT SCREEN to access the SELECT LANGUAGE screen. (Language Icon position may vary on consoles.) 2. - Page 9 6. UNIT IMMOBILIZED BY MANAGER message appears on screen. 7. Tap the upper part of the ATTRACT SCREEN in the following sequence: Upper-Left, Upper-Right, Upper-Left, and Upper-Right to enter SYSTEM OPTIONS. 8. Tap the Immobilize Unit icon to disable. Page 7 of 36...
-
Page 10: Introduction
Life Fitness, Hammer Strength, and ICG. • http://www.lifefitness.com/parts service parts ordering for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG products along with warranty parts ordering and technician requests. • https://lfworld.lifefitness.com easy to find Knowledge Base articles with answers to frequently asked questions and product support documentation for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG. -
Page 11: Maintenance
3. Maintenance Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Striding Belt Centered Inspect Emergency Stop Magnet Clean / Inspect... -
Page 12: Approved And Compatible
Approved and Compatible Cleaners Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1. PureGreen 24 is available in a spray which is convenient for gym staff to use. -
Page 13: Maintenance And Wifi Bluetooth Led Indicator
Maintenance and WiFi Bluetooth LED Indicator - SL Console In the manager configuration option several mileage parameters can be set. 1. Press the SPEED UP / DOWN arrow keys (Treadmill) or LEVEL UP / DOWN arrow keys (Non Treadmill) in the following sequence: UP, DOWN, UP, DOWN. -
Page 14: How To's
4. How To's Knowledge Base Knowledge Base for more detailed information. Page 12 of 36... -
Page 15: Belt Adjust And Belt / Deck Test - Sl
NOTE: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does not track properly, contact Life Fitness Customer Support. Do not overtighten the tensioning bolts while making belt adjustments. Overtightening of bolts may over stretch and damage the striding belt or roller. - Page 16 Tensioning an Existing Striding Belt 1. Press GO and operate the treadmill for five minutes at 5.0 MPH (8.0 KPH). NOTE: Do not run or walk on belt! 2. Reduce the speed to 2.0 MPH (3.2 KPH). Walk on the treadmill. Tightly grip the handrails and apply force with feet on the striding belt near the motor cover against the moving belt direction.
-
Page 17: Console
Belt / Deck Test - SL Console This test allows the user to check the belt and deck conditions. This test acts as a wattage meter, providing wattage readings while the belt is exercised. WATT is the wattage (from 340 to 1200) required by the motor controller to move the belt. -
Page 18: Service Wheel
Service Wheel (optional) A service wheel lever is located at the rear end of the unit. This lever will engage a wheel and elevate the rear end of the unit. The treadmill can then be easliy moved for cleaning or servicing. WARNING: Shock and electrocution hazard. - Page 19 2. Plug the power cord into the power outlet. Page 17 of 36...
-
Page 20: Troubleshooting
Using a voltmeter, verify power at outlet. If no power exists, reset circuit breaker at panel. Line cord is damaged. Replace line cord. Contact Life Fitness Customer Support. Line cord is improperly seated in socket. Inspect power connections at wall outlet and at machine for proper contact. -
Page 21: Strap
• Incorrect console or power supply. • Line cord at treadmill • Power switch • All console connections • All lower electronics connections Contact Life Fitness Customer Support. Unit resets randomly or pauses. Probable Cause Corrective Action Power source is insufficient. - Page 22 Probable Cause Corrective Action Belt transmitter not properly set up. Setup of the belt transmitter is accomplished by initially bringing it with in 1 foot of the receiver. The receiver is in the console. After the heart rate is displayed on the console the range is extended to 3 feet.
-
Page 23: Software
6. Software Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter. Page 21 of 36... -
Page 24: Diagnostics
7. Diagnostics Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter. Page 22 of 36... -
Page 25: Error Code List
8. Error code list Error codes notify user of a problem condition and are displayed on the console. Error codes can also help to indicate the part of the unit most likely to be causing the problem. Refer to Console Service Manual This product uses multiple consoles. -
Page 26: Network Information
9. Network Information Refer to Console Service Manual This product uses multiple consoles. Refer to the specific Console Service Manual for more detailed information. List of consoles are found in the Related Products section of the Introduction chapter. Page 24 of 36... -
Page 27: Schematics
Life Fitness, Hammer Strength, and ICG. • http://www.lifefitness.com/parts service parts ordering for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG products along with warranty parts ordering and technician requests. • https://lfworld.lifefitness.com easy to find Knowledge Base articles with answers to frequently asked questions and product support documentation for Life Fitness, Cybex, SCIFIT, Hammer Strength, and ICG. -
Page 28: Led Chart
11. LED Chart MDB Connectors Integrity Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. MDB Connectors Connector Description P100 Engineering use only P101 Engineering use only P102... - Page 29 Connector P300 This connector is a six pin Megafit connector for the drive motor. Pin # Description Phase U Phase V Phase W Thermal Switch Thermal Switch Frame Ground Connector P600 This connector is a fourteen pin iGrid connector for the communication between the SIB and the MDB. Pin # Description 3.3 Line from SIB...
-
Page 30: Mdb Led's Integrity
MDB LED's Integrity Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. LED's under normal operation Color Normal Indicates Condition Green Communicates with the SIB High Voltage present Orange Flyback Voltage present... -
Page 31: Sib Connectors Integrity
SIB Connectors Integrity Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. SIB Connectors Connector Description Engineering use only Input Power Lift Switches Stride Sensor Power to Console Base Communication... - Page 32 Pin # Description Ground Connector P4 This connector is a three position grid style connector that receives the stride sensor signals. Pin # Description Ground Stride Signal 5 V to power sensor Connector P8 This connector is a ten position Minifit Jr. connector that provides power to the console, attachable TV and E-Stop circuits.
- Page 33 Pin # Description E-Stop to MDB SPI Clock SPI Transmit SPI Chip Select SPI Receive Not Used Reset MDB Power Supply Disable MDB Power Supply Ground Not Used Not Used Ground Ground Page 31 of 36...
-
Page 34: Sib Led's Integrity
SIB LED's Integrity Treadmill NOTE: Always ensure that the software is up to date before beginning troubleshooting. Update the software and restart the unit if software is an old version. Correctly Operating SIB Color Normal Indicates Condition Green Flashing Communication with the console Rapidly Orange Flashing... - Page 35 Color Normal Indicates Condition On @ 15%, The lift system is at maximum o/w off Page 33 of 36...
- Page 36 Light Emitting Diode - LED's provide display functionality and are commonly used for indicator lights. Lifepulse ™ Life Fitness' proprietary hardware and software system designed to measure user's heart rate by making electrical contact at user’s palms. Motor Drive Board...
- Page 37 Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
- Page 38 Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
