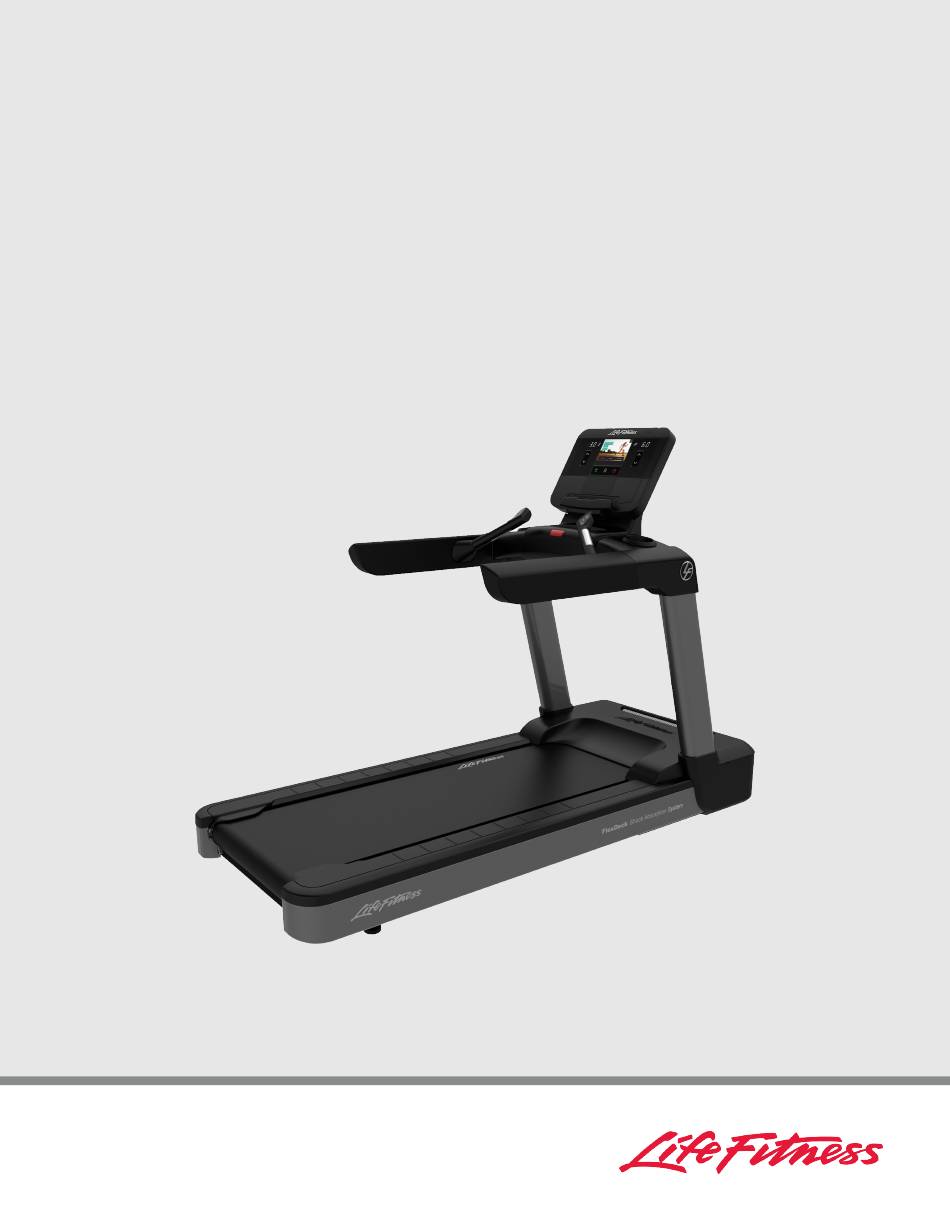

- Page 1 INTEGRITY TREADMILL (INTSC, INTSX, INTDX, INTDSE, INTDST, INTSSE, INTST, INTOTF, PF-INT-TRD, Club Series +, INT-TRD, INT-TRD-CS) Assembly Instructions 1006193-0001 REV AG...
- Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, Inc. Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 West Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
- Page 4 User and Service Documents Link https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the link above. أ علاه إل ر إبط باستخدإم إ لإ ن تر نت على إضافية معلومات تتوفر 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link. Vous trouverez plus d'informations en ligne à...
-
Page 5: Table Of Contents
2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2019, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation. -
Page 6: Getting Started
1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. CAUTION: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving belt. - Page 7 • The product should never be left unattended when plugged in. Disconnect from the electrical outlet when not in use, and before putting on or taking off parts. To disconnect, turn power OFF at the ON/OFF switch, then remove plug from electrical outlet. •...
-
Page 8: Consignes De
AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus,... - Page 9 • Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez immédiatement le service d’assistance à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness n’est pas responsable des étiquettes manquantes ou endommagées.
-
Page 10: Set-Up
Set-Up Read the entire manual before setting up the treadmill. Place the treadmill where it will be used before beginning the setup procedure. Electrical Power Requirements The treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed in the chart below. -
Page 11: How To Position And Stabilize The Safety Clearances
How to Position and Stabilize the Treadmill Follow all safety instructions. Move the treadmill to the location in which it will be used. NOTE: See How to Adjust and Tension the Striding Belt to center the striding belt. Safety Clearances The following information is supplied as regional reference data regarding safety clearances around the exterior of the treadmill. -
Page 12: Power Switch
Power Switch Located on the front panel at the base of the treadmill, the ON/OFF switch has two positions: "l" (one) for ON and "0" (zero) for OFF. Turning the Unit On To turn the treadmill on, locate the ON/OFF power switch at the front of the treadmill and turn it ON. Stride Sensor Auto-Shutoff System The Stride Sensor auto-shutoff system detects whether a user is on the belt/deck. -
Page 13: Immobilization Method - Discover
Immobilization Method - Discover Console The purpose of immobilizing the treadmill is to prevent unauthorized use. The system causes immobilization of the treadmill when activated. 1. Tap the LANGUAGE icon to access the SELECT LANGUAGE screen. 2. Tap the lower part of the screen in the following sequence: Lower-Left, Lower-Right, Lower-Left, and Lower-Right. 3. -
Page 14: Product Overview
2. Product Overview INTDX, INTDSE, INTDST, PF-INT-TRD, Club Series +, INT-TRD and INT-TRD-CS Item Description Qty. Console Speed Up/Down Arrows Cup Holder Contact Heart Rate Sensors Walking Belt Incline Up/Down Arrows Emergency Stop Magnet Emergency Stop Lanyard Page 12 of 40... - Page 15 INTSX, INTSC and INT-TRD Item Description Qty. Console Cup Holder Contact Heart Rate Sensors Walking Belt Emergency Stop Magnet Emergency Stop Lanyard Page 13 of 40...
-
Page 16: Intotf
INTOTF Item Description Qty. Console Cup Holder Walking Belt Emergency Stop Lanyard Emergency Stop Magnet Mounting and Dismounting the Treadmill Use the handrails to enhance stability when mounting or dismounting a treadmill. Never mount or dismount the treadmill while the running belt is moving. Use the STOP button on the console to end a workout and stop the running belt. -
Page 17: Using And Testing The Emergency Stop
Using and Testing the Emergency Stop System The treadmill is equipped with an Emergency Stop System. The system consists of a rectangular stop magnet (located on the upper bridge plastic) attached to a safety stop pull cord. Before starting a workout, attach the lanyard on the safety stop pull cord to an item of the user's clothing. During a workout, pull the cord to remove the magnet from the bridge. -
Page 18: Service And Technical Data
3. Service and Technical Data Preventive Maintenance Tips NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below. -
Page 19: Troubleshooting The Polar
Using a voltmeter, verify power at outlet. If no power exists, reset circuit breaker at panel. Line cord is damaged. Replace line cord. Contact Life Fitness Customer Support. Line cord is improperly seated in socket. Inspect power connections at wall outlet and at machine for proper contact. - Page 20 • Incorrect console or power supply. • Line cord at treadmill • Power switch • All console connections • All lower electronics connections Contact Life Fitness Customer Support. Unit resets randomly or pauses. Probable Cause Corrective Action Power source is insufficient.
-
Page 21: Strap
Troubleshooting the Polar ® Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin. -
Page 22: How To Adjust And Tension The Striding
NOTE: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does not track properly, contact Life Fitness Customer Support. Do not overtighten the tensioning bolts while making belt adjustments. Overtightening of bolts may over stretch and damage the striding belt or roller. -
Page 23: Service Wheel
Tensioning an Existing Striding Belt 1. Press GO and operate the treadmill for five minutes at 5.0 MPH (8.0 KPH). NOTE: Do not run or walk on belt! 2. Reduce the speed to 2.0 MPH (3.2 KPH). Walk on the treadmill. Tightly grip the handrails and apply force with feet on the striding belt near the motor cover against the moving belt direction. - Page 24 Disengage service wheel WARNING: Trip and fall hazard. To avoid injury, make sure service wheel lever is not engaged prior to use. 1. Grasp the service wheel lever and slide to the right, lift up, and slide to the left. Item Description Qty.
-
Page 25: Assembly: Intsc, Intsx, Intdx
4. Assembly: INTSC, INTSX, INTDX, INTDSE, INTDST, INTSSE, INTST, INTOTF, Club Series + Hardware and Required Tools Item Description M8 X 20 FLANGE HEX HEAD CAP SCREW M4.2 X 19 PHILLIPS PAN HEAD SCREW M6 X 16 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW (FOR INTEGRITY CONSOLE) M5 X 14 PHILLIPS PAN HEAD SCREW (FOR DISCOVER CONSOLE) -
Page 26: Secure Grounding Braid Cable To Base
Secure Grounding Braid Cable to Base Frame Item Description Qty. Grounding Braid Cable M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft. lbs.) Attach Bridge Weldment to Uprights 1. Attach bridge weldment to uprights. Item Description Bridge Weldment M8 X 20 Flange Hex Head Cap Screw 2. -
Page 27: Secure Grounding Braid Cable To
Secure Grounding Braid Cable to Uprights Item Description Qty. Grounding Braid Cable M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft. lbs.) Connect Cables INTDX & Club Series + Bases: Connect Heart Rate Cables and Keypad Cables. INTSX & INTSC Bases: Connect Heart Rate Cables. Page 25 of 40... -
Page 28: Connect Base
Connect Base Cables 1. Connect cables from left upright to the SIB. NOTE: Prior to handling electronics or cables, the installer should touch the metal frame of the unit to discharge static build up. This reduces the risk of damaging control electronics due to electrostatic discharge. Item Description Qty. -
Page 29: Attach Upper Plastics To
Attach Upper Plastics to Bridge NOTE: Align the bridge plastic to the foam arms before securing the bridge plastic to the bridge! Make sure there is a consistent gap across the two sides of the machine. Item Description Qty. Bridge Plastic, Upper M6 X 16 Phillips Pan Head Screw 4 Nm (3 ft. -
Page 30: Console
Attach Integrity X / Integrity C Console Item Description Qty. Console M5 X 14 Phillips Pan Head Screw Ground Screw (see Note) 1.9 Nm (1.4 ft. lbs.) NOTE: The Ground Screw is one of the M5 X 14 Phillips Pan Head Screws accounted for in the row above. Attach Discover Console Item Description... - Page 31 Route E-Stop Cable Route the E-stop cable through the lower bridge plastic, and attach the E-Stop cable to the upper bridge plastic. Item Description Qty. E-Stop Cable Screw Attach Lower Plastics to Bridge 1. Attach lower bridge plastics to upper bridge plastics. Item Description Bridge Plastics, Lower...
- Page 32 3. Insert cup holders. Press downward on the cup holders until the cup holders lock into position. Item Description Cup Holder Attach Rear Cover Item Description Qty. Rear Cover M4.2 X 19 Phillips Pan Head Screw Grommet 1.5 Nm (1.1 ft. lbs.) Attach End Caps Item Description...
- Page 33 Attach Side Shrouds Item Description Qty. Side Shroud, Right Side Shroud, Left M4.2 X 19 Phillips Pan Head Screw Grommet 1.5 Nm (1.1 ft.lbs.) Attach Motor Side Shrouds Snap the motor side shrouds to the base frame. Item Description Qty. Motor Side Shroud, Right Motor Side Shroud, Left Insert and tighten the screws into the motor side shrouds.
- Page 34 Attach Anti-Slip Rails Push the anti-slip rail forward to lock into place. Secure with the screw. Item Description Qty. Anti-Slip Rail, Right Anti-Slip Rail, Left M6 X 16 Phillips Pan Head Screw 4 Nm (3 ft. lbs.) Attach Front Shroud 1.
- Page 35 Attach Motor Cover 1. Snap the Tinnerman clips on the motor cover into place. Item Description Motor Cover 2. Securely tighten the two top screws of the front shroud. Item Description Screw 1.5 Nm (1.1 ft. lbs.) Install the Power Cord Follow these steps if the power cord is not installed: 1.
-
Page 36: Tools
5. Assembly: PF-INT-TRD, INT-TRD, INT-TRD-CS Hardware and Required Tools Item Description M8 X 20 FLANGE HEX HEAD CAP SCREW M4.2 X 19 PHILLIPS PAN HEAD SCREW M6 X 16 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW (FOR INTEGRITY CONSOLE) M5 X 14 PHILLIPS PAN HEAD SCREW (FOR DISCOVER CONSOLE) M5 X 16 PHILLIPS PAN HEAD SCREW M4 X 10 PHILLIPS PAN HEAD SCREW... - Page 37 Attach Discover Console Item Description Qty. Console M5 X 14 Phillips Pan Head Screw 1.9 Nm (1.4 ft. lbs.) Secure Ferrite to Console to Base Power Cable Clamp the ferrite to the console to base power cable. Item Description Qty. Ferrite Console to Base Power Cable Attach Rear Cover...
- Page 38 Lifting The Uprights 1. NOTE: Do not remove the pivot screws. Loosen the pivot screws on the left side and right side of the upright. Item Description Pivot Screw 2. NOTE: Two people are required to lift the upright into position. Lift the upright into position.
-
Page 39: Frame
Secure Grounding Braid Cable to Base Frame Item Description Qty. Grounding Braid Cable M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft. lbs.) Attach Motor Side Shrouds Snap the motor side shrouds to the base frame. Item Description Qty. - Page 40 Attach Anti-Slip Rails Push the anti-slip rail forward to lock into place. Secure with the screw. Item Description Qty. Anti-Slip Rail, Right Anti-Slip Rail, Left M6 X 16 Phillips Pan Head Screw 4 Nm (3 ft. lbs.) Attach Front Shroud 1.
- Page 41 Attach Motor Cover 1. Snap the Tinnerman clips on the motor cover into place. Item Description Motor Cover 2. Securely tighten the two top screws of the front shroud. Item Description Screw 1.5 Nm (1.1 ft. lbs.) Install the Power Cord Follow these steps if the power cord is not installed: 1.
- Page 42 6. Specifications Specifications Heavy / Commercial (INTSX, INTDX, INTSC, INTSSE, INTST, INTDSE, INTDST, PF-INT- TRD) EN ISO 20957 Class S Designed Use Home (Club Series +) EN ISO 20957 Class H Maximum User Weight 400 lbs. / 181 kg 0.5 - 14.0 MPH (0.8 - 23 KPH) in 0.1 increments (INTDX, INTSX, INTSC,INTSSE, INTST, INTDSE, INTDST, PF-INT-TRD, INT-TRD) Speed Range 0.5 - 12.0 MPH (0.8 - 19 KPH) in 0.1 increments (Club Series +, INT-TRD-CS)
