Summary of Contents for Life Fitness OST

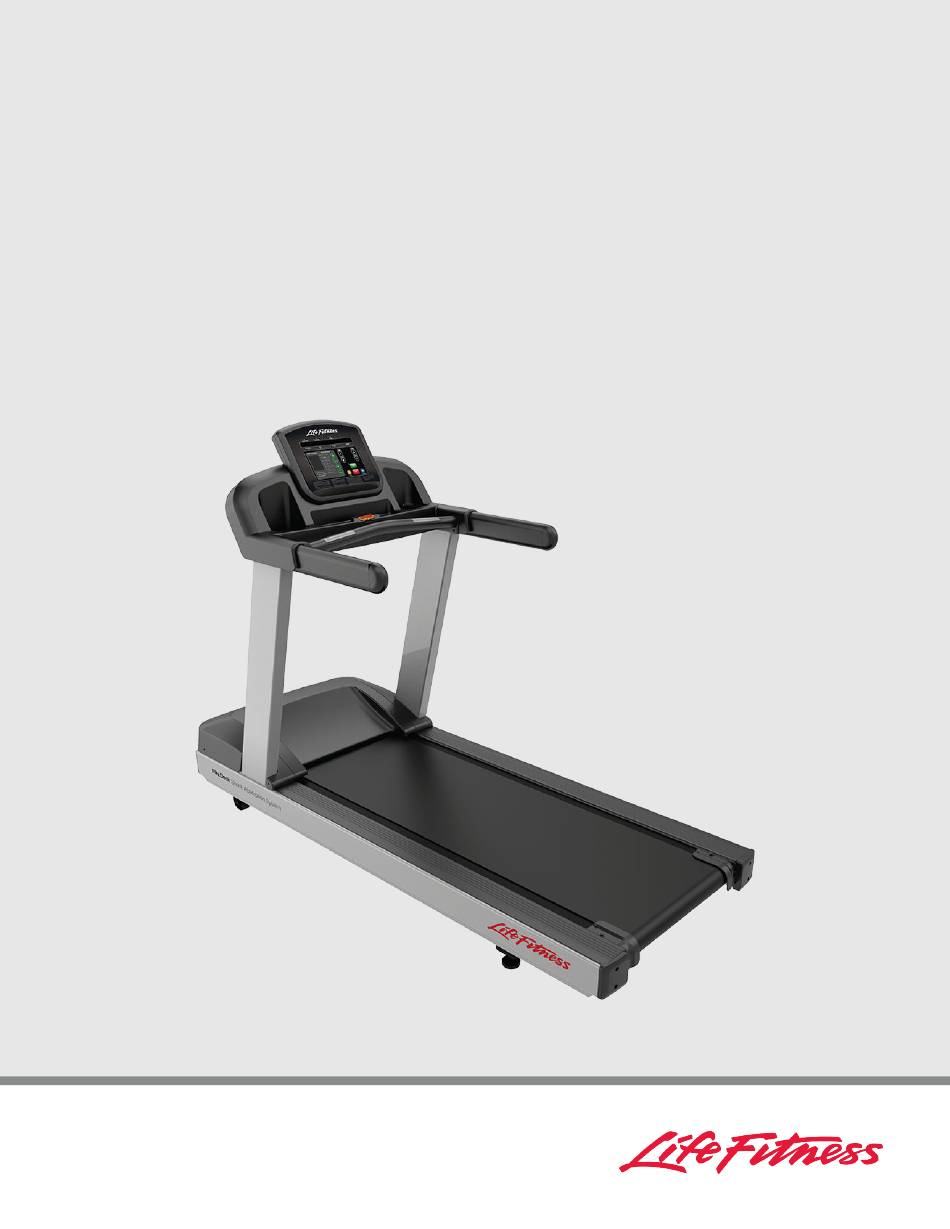

  • Page 1 Activate Treadmill OST Assembly Instructions 1018091-0001 REV AA...
  • Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD 10601 W Belmont Ave C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square Franklin Park, IL 60131 U.S.A. 08960 Sant Just Desvern Barcelona...
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.
  • Page 5: Table Of Contents

    2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2021, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation.
  • Page 6: Getting Started

    1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. CAUTION: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving belt.
  • Page 7 • Never insert objects into any opening in these products. If an object should drop inside, turn off the power, unplug the power cord from the outlet, and carefully retrieve it. If the item cannot be reached, contact Customer Support Services.
  • Page 8: Set-Up

    Set-Up Read the entire manual before setting up the treadmill. Place the treadmill where it will be used before beginning the setup procedure. Electrical Power Requirements The treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed in the chart below.
  • Page 9 How to Position and Stabilize the Treadmill Follow all safety instructions. Move the treadmill to the location in which it will be used. NOTE: See How to Adjust and Tension the Striding Belt to center the striding belt. Safety Clearances The following information is supplied as regional reference data regarding safety clearances around the exterior of the treadmill.
  • Page 10 Power Switch Located on the front panel at the base of the treadmill, the ON/OFF switch has two positions: "I" (one) for ON and "0" (zero) for OFF. Power Cord Routing WARNING: Make sure the power cord is unplugged before attempting to route it around or through the treadmill.
  • Page 11: Product Overview

    2. Product Overview Product Features Item Description Console Cup Holders Emergency Stop Lanyard Contact Heart Rate Sensors Handrails Striding Belt Mounting and Dismounting the Treadmill Use the handrails to enhance stability when mounting or dismounting a treadmill. Never mount or dismount the treadmill while the running belt is moving.
  • Page 12: Assembly

    3. Assembly Component and Hardware List Components Item Description Left Upright Right Upright Ergo™ Front Crossbar Upper Dashboard Tray Lower Dashboard Tray Console End Cap Front End Cap Rear Bridge Ergo™ Bar Backing Plate Cable Tie Hardware Item Description Bolt, 3/8 x 5” Hex Head Washer, 3/8”...
  • Page 13: Tools Required

    Tools Required • Phillips screwdriver • 9/16" Wrench (2) • 9/16" Socket 3/8" Drive • 13 mm Socket • 13 mm Wrench • 3" Extension 3/8" Drive • 3/8” Drive ratchet Remove Motor Cover 1. Remove screws securing motor cover to base assembly using a Phillips screwdriver. Item Description Motor Cover...
  • Page 14: Install Uprights

    Install Uprights 1. Place uprights on base assembly. 2. Install one bolt, washer, and lock nut to left and right upright and base assembly using a 9/16" socket and wrench. Item Description Left Upright Right Upright Bolt, 3/8 x 5” Hex Head Washer, 3/8”...
  • Page 15: Install Front Crossbar

    Install Front Crossbar 1. Route cable from front crossbar into left upright. Item Description Ergo™ Front Crossbar 2. Install bolts, washers, and lock nuts securing front crossbar to uprights using a 13mm socket and wrench. Item Description Lock Nut, M8 Washer, M8 Bolt, M8 x 20mm Hex Head Page 13 of 23...
  • Page 16: Install Bridge

    Install Bridge 1. Install a bolt, washers, and lock nut to each upright using a 13mm socket and wrench. Item Description Upright Lock Nut, M8 Washer, M8 Bolt, M8 x 20mm Hex Head NOTE: Leave a spacing of 5-12mm between washer and upright. 2.
  • Page 17: Tighten Upper Hardware

    3. Install bolts, washers, and lock nuts securing the bridge to uprights using a 13mm socket and wrench. Item Description Bridge Upright Lock Nut, M8 Washer, M8 Bolt, M8 x 20mm Hex Head Tighten Upper Hardware Tighten hardware 100%. Item Description Bolt, M8 x 20mm Hex Head Tighten Lower Hardware...
  • Page 18: Install Console Cables And Grommets

    Install Console Cables and Grommets NOTE: TV cables (Coax and power) are included in every treadmill with or without TV option. They must be routed up through left upright and stored in dashboard. 1. Route TV cables (Coax and power) up through left upright and into dashboard area. Item Description Coax Cable...
  • Page 19: Install Upper Dashboard Tray

    Install Upper Dashboard Tray 1. Install screws securing bar backing plate to front crossbar using a Phillips screwdriver. Item Description Ergo™ Bar Backing Plate Screw, #10 x 0.5” Phillips Head (black) 2. Install screws securing upper dashboard tray to front crossbar using a Phillips screwdriver. Item Description Upper Dashboard Tray...
  • Page 20: Console Connections

    Console Connections Item Description Qty. Display Connection Install Lower Dashboard Tray Install screws securing lower dashboard tray to upper dashboard tray using a Phillips screwdriver. Item Description Lower Dashboard Tray Screw, M4.2 x 19mm Phillips Head Screw, #10 x 0.5” Phillips Head (silver) Install Rear End Caps Install screws securing rear end caps to base assembly using a Phillips screwdriver.
  • Page 21: Install Motor Cover

    Install Motor Cover Install screws securing motor cover to base assembly using a Phillips screwdriver. Item Description Motor Cover Screw, M4.2 x 19mm Phillips Head Install Front End Caps Install screws securing front end caps to base assembly using a Phillips screwdriver. Item Description Front End Cap...
  • Page 22 2. Route power cord on left or right side of treadmill depending on installation / site needs. CAUTION: Make sure that there is 6.5 ft. (2 m) of clearance behind the treadmill. Contact Life Fitness Customer Support Services for an optional longer power cord if necessary.
  • Page 23: Service And Technical Data

    4. Service and Technical Data Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Clean Inspect Trays Console Mounting Bolts Inspect Hardware Inspect Frame Clean Inspect Plastic Covers Clean Inspect Lifepulse Sensors Clean / Inspect Striding Belt Centered Inspect Emergency Stop Magnet...
  • Page 24: Approved And Compatible Cleaners

    Approved and Compatible Cleaners Two preferred cleaners have been approved by reliability experts: PureGreen 24 and Gym Wipes. Both cleaners will safely and effectively remove dirt, grime and sweat from equipment. PureGreen 24 and the Antibacterial Force formula of Gym Wipes are both disinfectants that are effective against MRSA and H1N1. PureGreen 24 is available in a spray which is convenient for gym staff to use.
  • Page 25: Specifications

    5. Specifications Specifications Designed Use Heavy / Commercial, EN ISO 20957 Class S Maximum User Weight 400 lbs. / 181 kg Speed Range 0.5 - 12.0 MPH (0.8 - 19.3 KPH) in 0.1 increments Incline Range 0% - 15% Drive Train AC motor with variable speed controller Motor Type AC Induction...
