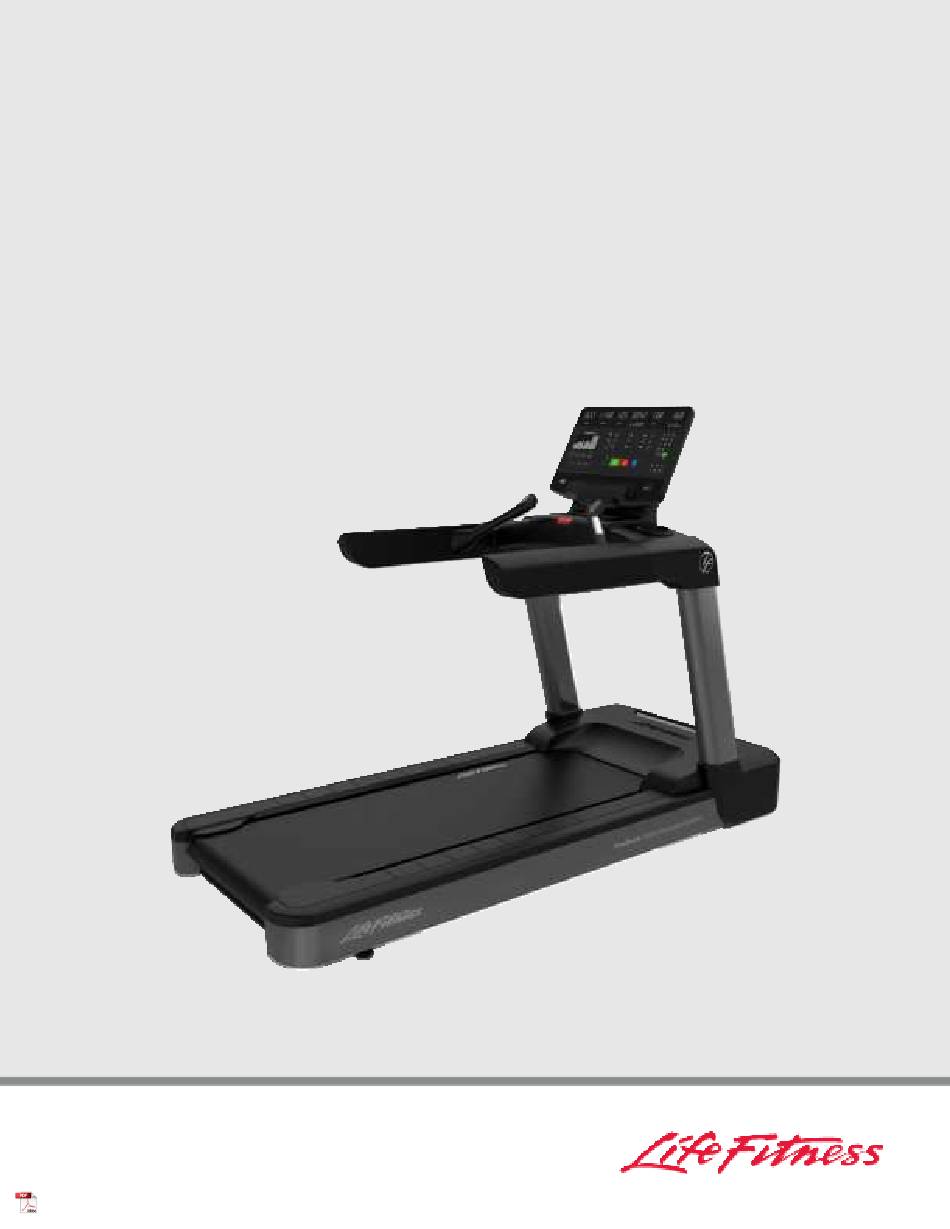

Integrity Treadmill
(INT-TRD, PF-INT-TRD-02, INT-TRD-CS, INT-TRD-B1, INT-TRD-CS-B1)
Assembly Instructions
1015934-0001 REV AA

Advertisement

Table of Contents
loading

Related Manuals for Life Fitness INT-TRD

Summary of Contents for Life Fitness INT-TRD

  • Page 1 Integrity Treadmill (INT-TRD, PF-INT-TRD-02, INT-TRD-CS, INT-TRD-B1, INT-TRD-CS-B1) Assembly Instructions 1015934-0001 REV AA...
  • Page 3 Latin America and Caribbean* Spain Hong Kong Life Fitness, LLC Life Fitness IBERIA Life Fitness Asia Pacific LTD Columbia Centre III C/Frederic Mompou 5,1º1ª 32/F, Global Trade Square 9525 Bryn Mawr Avenue 08960 Sant Just Desvern Barcelona 21 Wong Chuk Hang Road Rosemont, IL 60018 U.S.A.
  • Page 4 User and Service Documents Link https://lifefitness9512.zendesk.com/hc/en-us https://www.lftechsupport.com/web/document-library/documents Additional information is available online using the links above. ‫أ علاه‬ ‫إل ر إبط‬ ‫باستخدإم‬ ‫إ لإ ن تر نت‬ ‫على‬ ‫إضافية‬ ‫معلومات‬ ‫تتوفر‬ 点击上面的链接可在线获取更多信息。 Flere oplysninger er tilgængelige online gennem linket ovenfor. Bijkomende informatie is online beschikbaar via bovenstaande link.

  • Page 5: Table Of Contents

    2XL Corporation. PureGreen 24 is a trademark of Pure Green. © Copyright 2020, Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life Fitness, LLC and its affiliated companies and subsidiaries. Brunswick and related trademarks used under license from Brunswick Corporation.

  • Page 6: Getting Started

    1. Getting Started Safety Instructions Read all instructions before use. CAUTION: Any changes or modifications to this equipment could void the product warranty. CAUTION: Risk of injury to persons – to avoid injury, use extreme caution when stepping onto or off of a moving belt.
  • Page 7 • Never insert objects into any opening in these products. If an object should drop inside, turn off the power, unplug the power cord from the outlet, and carefully retrieve it. If the item cannot be reached, contact Customer Support Services.

  • Page 8: Consignes De

    AVERTISSEMENT : Une utilisation incorrecte ou excessive de l'appareil peut entraîner des blessures. Life Fitness Recommande VIVEMENT aux utilisateurs de passer un examen médical complet avant d'entamer un programme d'entraînement, et tout particulièrement dans les cas suivants : antécédents familiaux d'hypertension (pression sanguine trop élevée) ou de pathologies cardiaques, utilisateurs de 45 ans ou plus,...
  • Page 9 • Si certaines étiquettes d’avertissement sont manquantes ou endommagées, contactez immédiatement le service d’assistance à la clientèle. Nous vous en fournirons de nouvelles. Les étiquettes d’avertissement sont expédiées avec les appareils et doivent être installées avant utilisation de ces derniers. Life Fitness n’est pas responsable des étiquettes manquantes ou endommagées.

  • Page 10: Set-Up

    Set-Up Read the entire manual before setting up the treadmill. Place the treadmill where it will be used before beginning the setup procedure. Electrical Power Requirements The treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed in the chart below.

  • Page 11: How To Position And Stabilize The Safety Clearances

    How to Position and Stabilize the Treadmill Follow all safety instructions. Move the treadmill to the location in which it will be used. NOTE: See How to Adjust and Tension the Striding Belt to center the striding belt. Safety Clearances The following information is supplied as regional reference data regarding safety clearances around the exterior of the treadmill.

  • Page 12: Turning The Unit On

    Turning the Unit On To turn the treadmill on, locate the ON/OFF power switch at the front of the treadmill and turn it ON. Stride Sensor Auto-Shutoff System The Stride Sensor auto-shutoff system detects whether a user is on the belt/deck. If the user leaves the belt/deck during a workout, the system is triggered and the following message is displayed, User not detected on belt - press “OK”...

  • Page 13: Immobilization Method - Integrity

    Immobilization Method - Integrity SL The purpose of immobilizing the treadmill is to prevent unauthorized use. The system causes immobilization of the treadmill when activated. 1. Enter Manager's Configuration: • Press the SPEED UP / DOWN arrow keys in the following sequence: UP, DOWN, UP, DOWN. •...

  • Page 14: Product Overview

    2. Product Overview INT-TRD-CS, INT-TRD-CS-B1, INT-TRD (deluxe), INT-TRD-B1 (deluxe) Item Description Qty. Console Speed Up/Down Arrows Cup Holder Contact Heart Rate Sensors Walking Belt Incline Up/Down Arrows Emergency Stop Magnet Emergency Stop Lanyard Page 12 of 39...
  • Page 15 INT-TRD, INT-TRD-B1, PF-INT-TRD-02 Item Description Qty. Console Cup Holder Contact Heart Rate Sensors Walking Belt Emergency Stop Magnet Emergency Stop Lanyard Page 13 of 39...

  • Page 16: Mounting And Dismounting The User Position

    Mounting and Dismounting the Treadmill Use the handrails to enhance stability when mounting or dismounting a treadmill. Never mount or dismount the treadmill while the running belt is moving. Use the STOP button on the console to end a workout and stop the running belt.

  • Page 17: Service And Technical Data

    3. Service and Technical Data Preventive Maintenance Tips NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, as outlined below.

  • Page 18: Troubleshooting The Polar

    Using a voltmeter, verify power at outlet. If no power exists, reset circuit breaker at panel. Line cord is damaged. Replace line cord. Contact Life Fitness Customer Support. Line cord is improperly seated in socket. Inspect power connections at wall outlet and at machine for proper contact.

  • Page 19: Treadmill

    • Incorrect console or power supply. • Line cord at treadmill • Power switch • All console connections • All lower electronics connections Contact Life Fitness Customer Support. Unit resets randomly or pauses. Probable Cause Corrective Action Power source is insufficient.

  • Page 20: Strap

    ® Troubleshooting the Polar Heart Rate Chest Strap Heart rate reading is erratic or absent entirely Probable Cause Corrective Action Belt transmitter electrodes are not wet enough to pick up Wet the belt transmitter electrodes. accurate heart rate readings. Belt transmitter electrodes are not laying flat against the Ensure the belt transmitter electrodes are laying flat skin.

  • Page 21: How To's

    2. Grasp the service wheel lever and slide to the right and down to lock in place. Item Description Qty. Service wheel lever Frame The service wheel will lower and raise the rear feet off the floor. Item Description Qty. Service wheel Rear feet Floor...
  • Page 22 NOTE: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does not track properly, contact Life Fitness Customer Support. Do not overtighten the tensioning bolts while making belt adjustments. Overtightening of bolts may over stretch and damage the striding belt or roller.
  • Page 23 Tensioning an Existing Striding Belt 1. Press GO and operate the treadmill for five minutes at 5.0 MPH (8.0 KPH). NOTE: Do not run or walk on belt! 2. Reduce the speed to 2.0 MPH (3.2 KPH). Walk on the treadmill. Tightly grip the handrails and apply force with feet on the striding belt near the motor cover against the moving belt direction.

  • Page 24: Assembly: Pf-Int-Trd-02, Int-Trd, Int-Trd-Cs

    4. Assembly: PF-INT-TRD-02, INT-TRD, INT-TRD-CS Hardware and Required Tools Item Description M8 X 20 FLANGE HEX HEAD CAP SCREW M4.2 X 19 PHILLIPS PAN HEAD SCREW M6 X 16 PHILLIPS PAN HEAD SCREW GROMMET M5 X 16 PHILLIPS PAN HEAD SCREW...

  • Page 25: Lifting The Uprights

    Attach Rear Console Shroud Assembly Item Description Qty. Rear Cover M4.2 X 19 Phillips Pan Head Screw Grommet Console Mounting Bracket 1.5 Nm (1.1 ft. lbs.) Lifting The Uprights 1. NOTE: Do not remove the pivot screws. Loosen the pivot screws on the left side and right side of the upright. Item Description Pivot Screw...

  • Page 26: Attach Motor Side

    Secure Uprights to Base Install M8 X 20 screws and tighten the pivot screws. Item Description Qty. M8 X 20 Screw Pivot Screw 17.5 Nm (12.9 ft. lbs.) Secure Grounding Braid Cable to Base Frame Item Description Qty. Grounding Braid Cable (attached to base) M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft.

  • Page 27: Attach Anti-Slip

    Insert and tighten the screws into the motor side shrouds. Item Description Qty. M6 X 16 Screw 4 Nm (3 ft. lbs.) Attach Anti-Slip Rails Push the anti-slip rail forward to lock into place. Secure with the screw. Item Description Qty.
  • Page 28 2. Loosely secure the top two screws to the frame. Tightly secure the bottom two screws to the base frame. Item Description M4.2 X 19 Phillips Pan Head Screw 1.5 Nm (1.1 ft. lbs.) Attach Motor Cover 1. Snap the Tinnerman clips on the motor cover into place. Item Description Motor Cover...

  • Page 29: Assembly: Int-Trd-B1, Int-Trd-Cs-B1

    5. Assembly: INT-TRD-B1, INT-TRD-CS-B1 Hardware and Required Tools Item Description M8 X 20 FLANGE HEX HEAD CAP SCREW M4.2 X 19 PHILLIPS PAN HEAD SCREW M6 X 16 PHILLIPS PAN HEAD SCREW GROMMET M5 X 14 PHILLIPS PAN HEAD SCREW...

  • Page 30: Secure Grounding Braid Cable To Base

    Secure Grounding Braid Cable to Base Frame Item Description Qty. Grounding Braid Cable M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft. lbs.) Attach Bridge Weldment to Uprights 1. Attach bridge weldment to uprights. Item Description Bridge Weldment M8 X 20 Flange Hex Head Cap Screw 2.
  • Page 31 Secure Grounding Braid Cable to Uprights Item Description Qty. Grounding Braid Cable M5 X 16 Phillips Pan Head Screw 2.8 Nm (2.0 ft. lbs.) Connect Cables INT-TRD-B1 (deluxe), INT-TRD-CS-B1: Connect Heart Rate Cables and Keypad Cables. INT-TRD-B1: Connect Heart Rate Cables. Page 29 of 39...
  • Page 32 Connect Base Cables Connect cables from left upright to the SIB. NOTE: Prior to handling electronics or cables, the installer should touch the metal frame of the unit to discharge static build up. This reduces the risk of damaging control electronics due to electrostatic discharge. NOTE: Connect coax that is run through the uprights to the end of the coax that runs in front of the treadmill frame.

  • Page 33: Console

    2. Secure upper bridge plastic to the bridge weldment with seven screws. Base to Console Cable Connections - Integrity SL Item Description CSAFE Base Interface Cable (Base Switches, ESS, Lifepulse) Base Power Base Com TV (optional) Attach Integrity SL Console Item Description Qty.
  • Page 34 Attach Lower Plastics to Bridge 1. Install grommets. 2. Attach lower bridge plastics to upper bridge plastics. Item Description Grommet Bridge Plastics, Lower M6 X 16 Phillips Pan Head Screw 4 Nm (3 ft. lbs.) 3. Secure lower bridge plastics to user arms. Attach emergency stop magnet. Item Description M4.2 X 19 Phillips Pan Head Screw...
  • Page 35 4. Insert cup holders. Press downward on the cup holders until the cup holders lock into position. Item Description Cup Holder Attach Rear Console Shroud Assembly Item Description Qty. Rear Cover M4.2 X 19 Phillips Pan Head Screw Grommet Console Mounting Bracket 1.5 Nm (1.1 ft.

  • Page 36: Rails

    Attach Motor Side Shrouds Snap the motor side shrouds to the base frame. Item Description Qty. Motor Side Shroud, Right Motor Side Shroud, Left Insert and tighten the screws into the motor side shrouds. Item Description Qty. M6 X 16 Screw 4 Nm (3 ft.
  • Page 37 Attach Front Shroud 1. Insert the grommets into the base frame. Item Description Grommet 2. Loosely secure the top two screws to the frame. Tightly secure the bottom two screws to the base frame. Item Description M4.2 X 19 Phillips Pan Head Screw 1.5 Nm (1.1 ft.
  • Page 38 2. Securely tighten the two top screws of the front shroud. Item Description Screw 1.5 Nm (1.1 ft. lbs.) Page 36 of 39...
  • Page 39 Home (INT-TRD-CS, INT-TRD-CS-B1) EN ISO 20957 Class H Maximum User Weight 400 lbs. / 181 kg 0.5 - 14.0 MPH (0.8 - 23 KPH) in 0.1 increments (PF-INT-TRD-02, INT-TRD, INT-TRD- Speed Range 0.5 - 12.0 MPH (0.8 - 19 KPH) in 0.1 increments (INT-TRD-CS, INT-TRD-CS-B1)
  • Page 40 Who Pays Transportation and Insurance For Service If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness Family of Brands, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charge after the first year.
  • Page 41 Changes in Warranty Not Authorized No one is authorized to change, modify or extend the terms of this limited warranty. Effects of State Laws This warranty gives you specific legal rights, and you may have other rights which vary from state to state and country by country.
