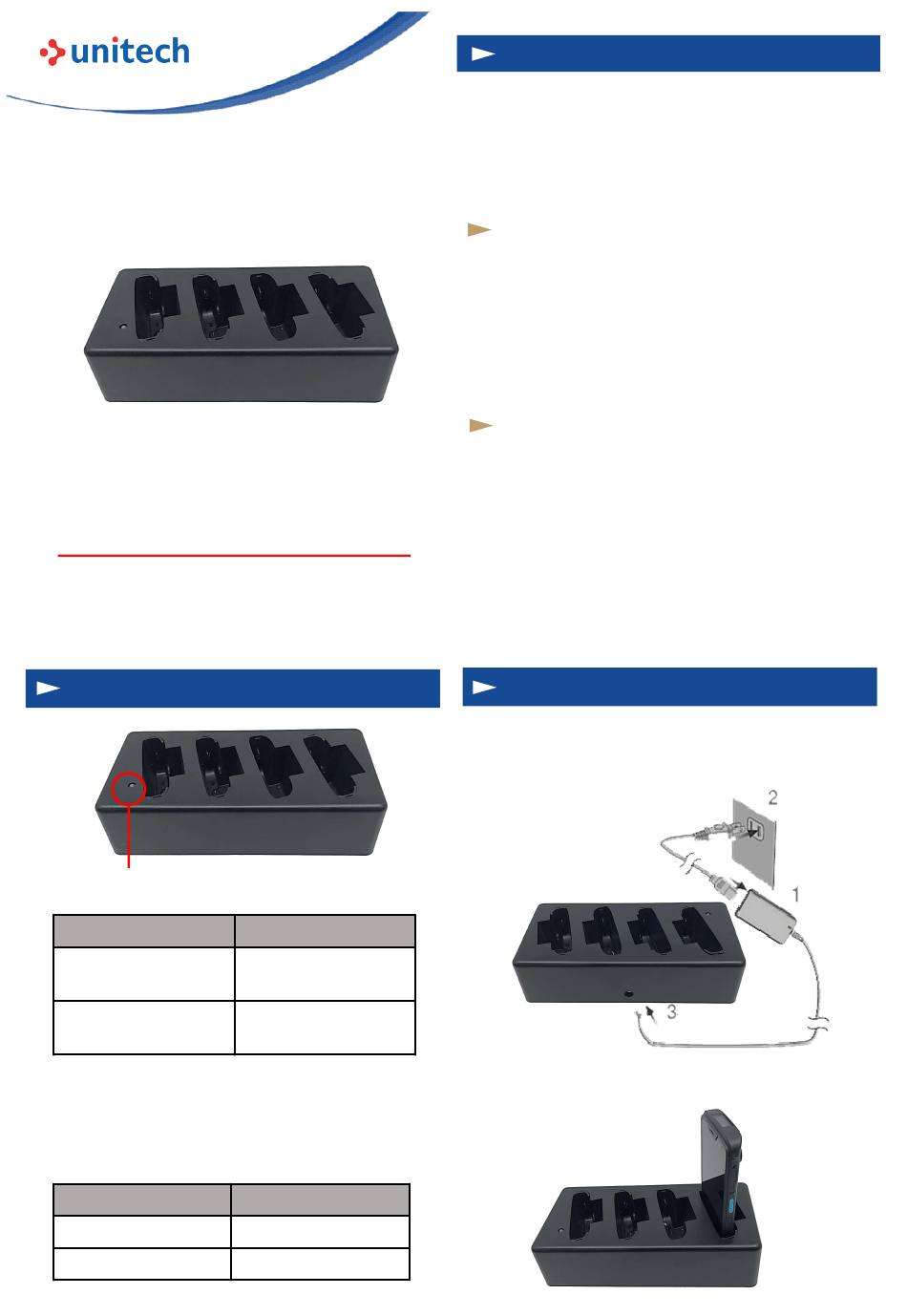

Unitech EA520 Quick Start Manual

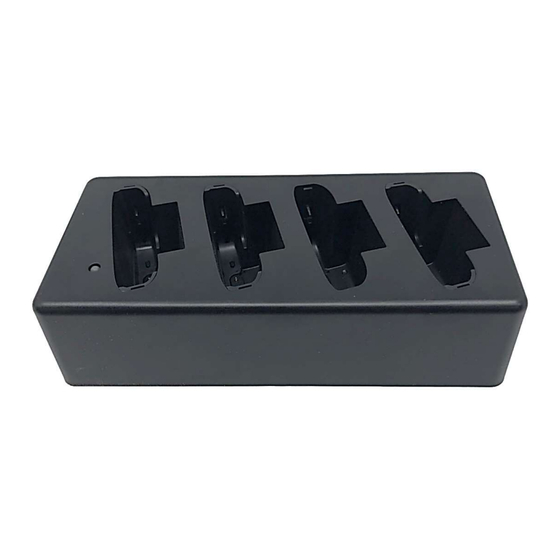

EA520 4-Slot Terminal Cradle
Quick Start Guide
LED Indicator Status
Cradle Power LED
LED Status
Solid Green Light
LED Off
Note: When EA520 is inserted in the cradle,
the LED indicator on the cradle will not be changed.
For charging status, see LED on EA520.
EA520 LED
LED Status
Solid Red Light
Solid Green Light
V1.0
Description
Power supply is
connected.
Power supply is not
connected.
Description
Charging
Charging completed.
Package
Please make sure the following contents are in the
EA520 4-Slot terminal cradle gift box.
If something is missing or damaged, please contact
your Unitech representative.
The Package Contents
• EA520 4-slot Terminal Charging Cradle
• Default detachable cover on the cradle for
EA520 without boot case*4
• 12VDC 5A power supply (#1010-900068G)
Optional Accessories
• 3 Pins Power Cord (US)
• 3 Pins Power Cord (EU)
• 3 Pins Power Cord (UK)
Charging the Battery
Plug the AC adapter cable into the power jack
on the battery charger, and then plug the other
end of the AC adapter into an electrical outlet.
Put EA520 into the cradle following the picture
below.
