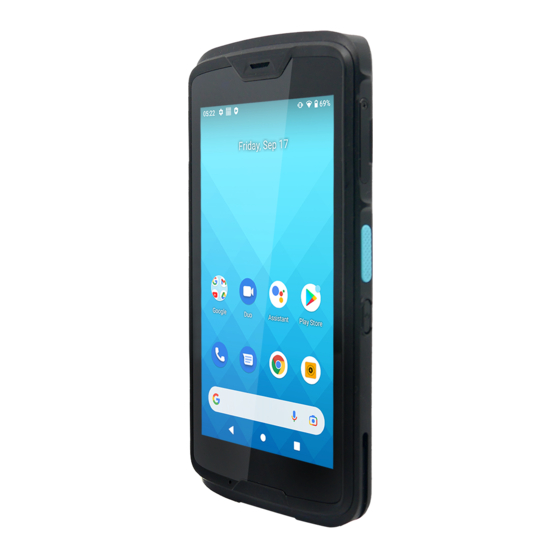

Unitech EA520 User Manual
Rugged handheld computer
Hide thumbs
Also See for EA520:
- Operating instruction (32 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Unitech EA520
Summary of Contents for Unitech EA520
- Page 1 - EA520 - User's Manual Version 1.3 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 2 V1.2 20211103 Update 1.3 V1.3 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 3: Preface
–Connect the equipment into an outlet on a circuit different from that to © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 4 Use of other accessories may not ensure compliance with FCC RF exposure guidelines. European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the RED 2014/53/EU directive.
- Page 5 ICNIRP exposure guidelines. CE Mark Warning © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 6 Waste electrical and electronic equipment (WEEE) unitech has set up a policy and process to meet the 2012/19/EU concerning electronic waste disposal. For more detailed information of the electronic waste disposal of the products you have purchased from unitech directly or via unitech’s resellers, you shall either...
- Page 7 MSS operations. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 8 Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 60825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
- Page 9 It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by unitech’s warranty policy.
- Page 10 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 11 Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.
- Page 12 To prevent possible hearing damage, do not listen at high volume levels for long periods. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 13 Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...
- Page 14 The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.
-
Page 15: Table Of Contents
2.12 Split Screen ..................42 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 16 3.3 Software Update ................... 53 3.4 StageGO....................54 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 17: Regulatory Compliance Statements
EA520 User’s Manual Chapter 1 - Overview 1.1 Package Please make sure the following contents are in the EA520 gift box. If something is missing or damaged, please contact your unitech representative. The Package Contents EA520 Terminal Battery ... -
Page 18: Product Detail
9. LED Indicator 5. Programmable Key © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 19 14. Speaker 19. Front Camera © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 20: Specifications
Support HF/NFC, Frequency 13.56Mhz, ISO14443 A/B, ISO15693, Felica(ISO/IEC18092), Mifare compliance © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 21 One speaker (90±3dB @ 10cm), One receiver, Dual noise-cancelling microphones © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 22 ES SE UK NO CH TR © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 23: Getting Started
Press down the battery and secure in place. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 24 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 25 Pull the plastic sheet and remove the battery from the top. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 26 To charge the terminal, please use the USB charging cable or the cradle. Connect the type C USB cable to the USB port on EA520 and the other end of the USB cable connect to AC power adapter into the electrical outlet on the USB plug.
- Page 27 EA520 User’s Manual 1.4.5 Turning on the terminal for the first time It is recommended to fully charge EA520 before first use. You can now start up your device to set up the languages, WLAN setting, and date and time.
- Page 28 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 29 (A) Put in two SIM Cards or (B) Put in one SIM Card and an SD Card. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 30 SD card are inserted into the slot. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 31: Chapter 2 - Installation & Operation
On the main screen, scroll up the screen to reach the APPS, and Settings and then tap USS (unitech scan service). Or from the notification bar to tap USS (unitech scan service). You now enter the unitech scan service application. - Page 32 EA520 User’s Manual 2.1.1 Settings After you enter the unitech scan service application, please tap the screen to see all the settings of USS. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
- Page 33 Save / Load Settings, and Factory Default. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 34 3.1 USS (unitech scan service) © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 35: Hf Setting
Tap Connection Preferences to enable NFC © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 36 EA520 User’s Manual Make sure that both devices are unlocked and have NFC turned on. Also make sure that the NFC antenna area of EA520 and the other phone's NFC area are close to one another. Slightly moving the phones until a connection is made.
-
Page 37: Wwan Setting
Settings and then tap Network & internet. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 38 Scroll down and tap on advanced. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 39 To choose different network type, please tap Preferred network type. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 40: Wlan Setting
To see available networks, turn WLAN ON. And tap to choose the available networks. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 41 © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 42 2. To see available networks, turn WLAN ON. And tap to choose the available networks. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 43 When Wi-Fi is connected, tap “Share” icon to show QR code. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 44: Pan Setting
Tap Connection Preferences to enable Bluetooth © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 45 USB or NFC to transfer files. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 46: Gps Setting
Tap ON/OFF for the permission to use your location information. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 47: Pc Setting
EA520 User’s Manual 2.7 PC Setting Connect EA520 to your computer with the USB type C cable. Your computer will recognize it is USB charging. Slide down from top, the system will show as follow picture, then you can tap on Android System Charging this device via USB. - Page 48 Then you can select File Transfer. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 49: Camera Setting
APPS, and tap Camera. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 50 Scene mode to access mode settings. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 51 Tap on the to start recording. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 52: Performing A Hardware Reset
Power button around 10 seconds to restart the device. Power Button © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 53: Performing Factory Data Reset
2. Tap Advanced for more options, and then tap Reset options. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 54 When you select Erase all data (factory reset), it will erase all folders. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 55: Keyremap
EA520 User’s Manual 2.11 KeyRemap The EA520’s keys can be programmed for users to be able to perform different functions or applications. Four options to use key remap functions: Volume_Up, Volume_Down, Programmable Key 1, Scanner Triger Key Left and Scanner Triger Key Right. - Page 56 (For Files setting, please refer to Files.) © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 57 2. Select Reset all settings © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 58: Split Screen
1. Tap Background APP button until you see those background apps on the screen. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 59 APPs to expand the app that you would like to keep in full screen. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 60: Network Time Protocol (Ntp) Server
Settings and then tap NTP (Network Time Protocol) Server. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... - Page 61 2. On NTP Server, please choose the system preferences to set up network time. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
-
Page 62: Chapter 3 - Introduction To Applications
Settings and then tap USS ( unitech scan service ). Or from the notification bar to tap USS ( unitech scan service ). You now enter the unitech scan service application. © 2021 unitech Electronics Co., Ltd. All rights reserved. - Page 63 Start Scan button. Scanner Trigger Key © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 64 For more options and settings, please tap © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 65 The Bookland ISBN format supports two types of barcodes, including Bookland ISBN-10 and Bookland ISBN-13. The default of EA520 is Bookland ISBN-10. If you are unable to scan the barcode, please switch to Bookland ISBN-13 following the instructions below. 1.Please tap and tap on Symbology Settings.
- Page 66 2. Tap on Bookland EAN, then tap on Bookland ISBN Format. 3, Select Bookland ISBN-13. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 67 EA520 User’s Manual 3.1.4 Picklist Mode Picklist mode enables EA520 to decode only barcodes that are aligned under the laser crosshair or LED aiming dot. For picklist mode demonstration, please click on our Youtube channel for more information : https://www.youtube.com/watch?v=QjT2E6hxD_k , Choose Scanner Settings 2.
-
Page 68: Files
1. On the main screen, scroll the screen from down to top to reach the APPS, and Files. © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 69: Software Update
Software Update. Import / Export/ Reset © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners... -
Page 70: Stagego
StageGO helps IT admins to swiftly set up a device by just a few barcode scans. Features Swift and effortless device staging for Unitech Android Mobile Devices. Device staging becomes more accessible, time-efficient, and secure. Complete device control at your fingertips. - Page 71 EA520 User’s Manual © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
- Page 72 EA520 User’s Manual Step 3. Scan QRCode: © 2021 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. All product and company names are trademarks, service marks, or registered trademarks of their respective owners...
