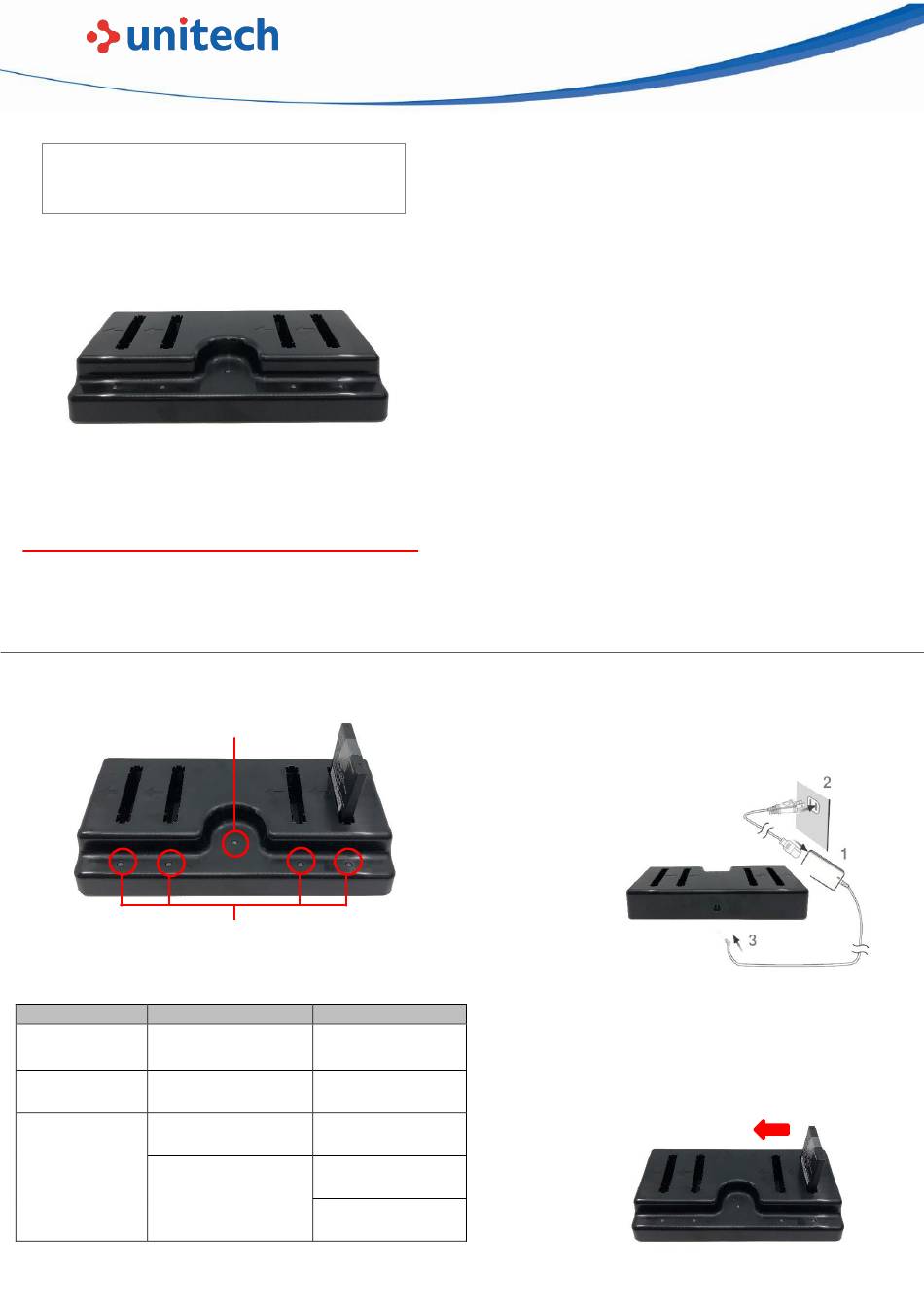

Unitech EA520 Quick Start Manual

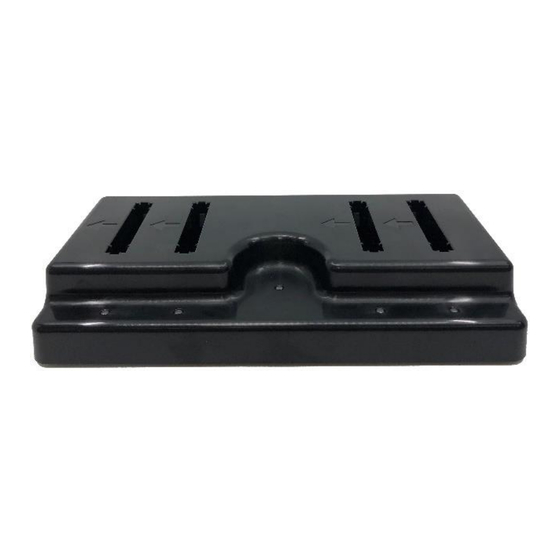

EA520 Four-Slot Battery Charger
WW

Checking LED Status

Power LED (Green)
Battery Charging Status LED (Red)
LED Status LED Type
Solid Green Light Power LED
Battery Charging
Solid Red Light
Status LED
Power LED
LED Off
Battery Charging
Status LED
Quick Start Guide
V1.1
Description
Power supply
is connected.
Battery is
being charged.
Power supply is
not connected.
Battery fully
charged.
Power on
without battery.

Package

Please make sure the following contents are in the gift
box. If something is missing or damaged, please contact
your Unitech representative.

The package contents

 EA520 Four-Slot Battery Charger Unit
(PN# 5100-900033G)
3-pin

Power Supply (12V/ 5A) without power cord

Optional Accessories

 US power cord (PN# 1010-601551G)
 EU power cord (PN# 1550-602333G)
 Cradle Hook (PN# 383291G)

Charging the Battery

Plug the AC adapter cable into the power jack on the
battery charger, and then plug the other end of the AC
adapter into an electrical outlet.
Put the battery into the charger (with model name
and battery strap facing left), and the charger will
automatically detect the presence of batteries and
begin charging.
