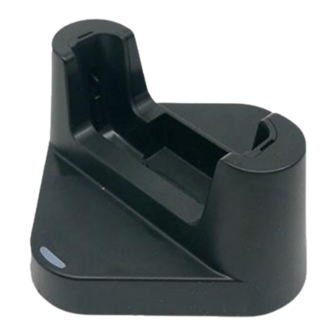

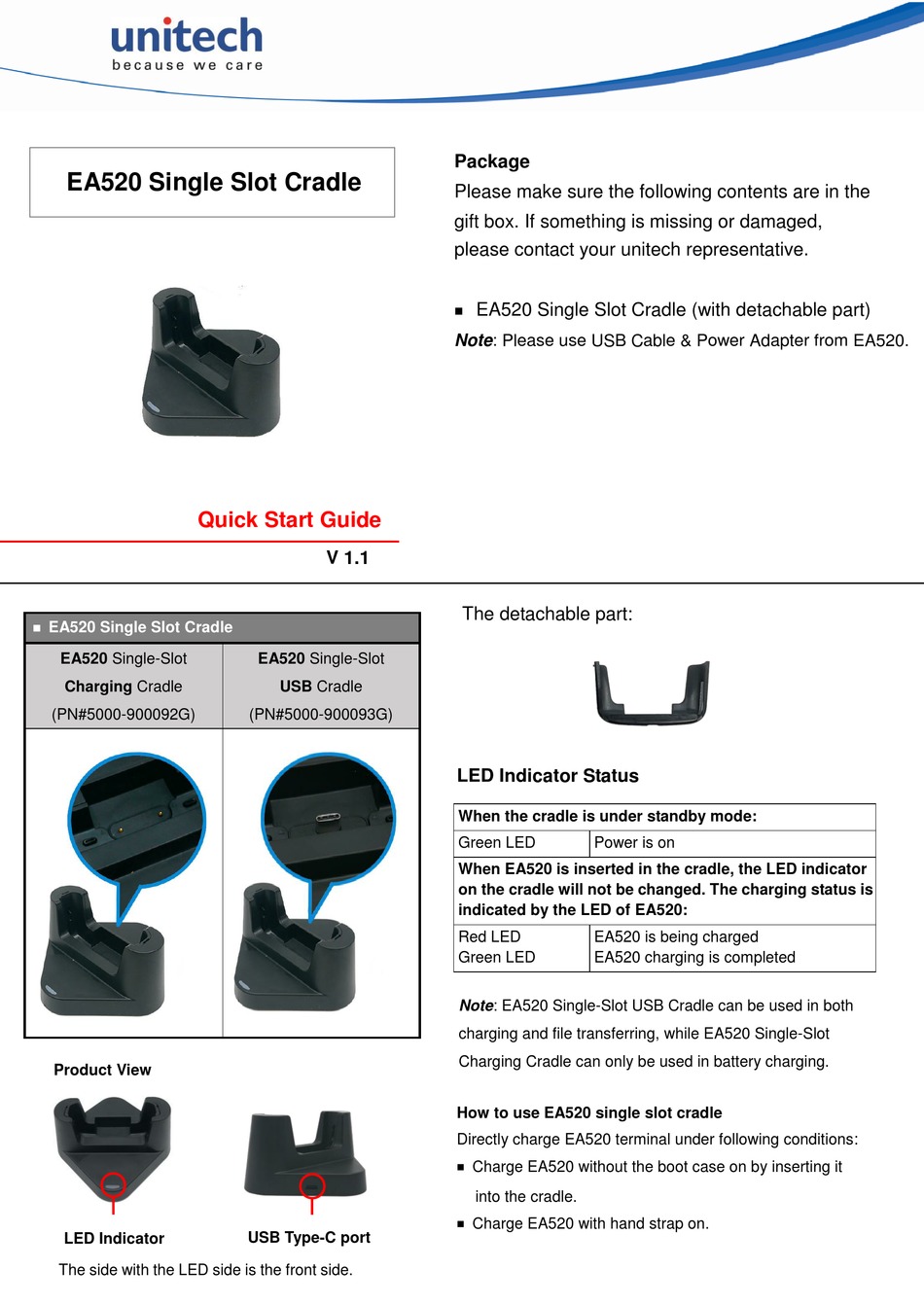

EA520 Single Slot Cradle
Quick Start Guide
￭ EA520 Single Slot Cradle
EA520 Single-Slot
Charging Cradle
(PN#5000-900092G)
Product View
LED Indicator
The side with the LED side is the front side.
V 1.1
EA520 Single-Slot
USB Cradle
(PN#5000-900093G)
USB Type-C port
Package
Please make sure the following contents are in the
gift box. If something is missing or damaged,
please contact your unitech representative.
EA520 Single Slot Cradle (with detachable part)

Note: Please use USB Cable & Power Adapter from EA520.

The detachable part:
LED Indicator Status
When the cradle is under standby mode:
Green LED Power is on
When EA520 is inserted in the cradle, the LED indicator
on the cradle will not be changed. The charging status is
indicated by the LED of EA520:
Red LED EA520 is being charged
Green LED EA520 charging is completed
Note: EA520 Single-Slot USB Cradle can be used in both
charging and file transferring, while EA520 Single-Slot
Charging Cradle can only be used in battery charging.
How to use EA520 single slot cradle
Directly charge EA520 terminal under following conditions:
￭ Charge EA520 without the boot case on by inserting it
into the cradle.
￭ Charge EA520 with hand strap on.
