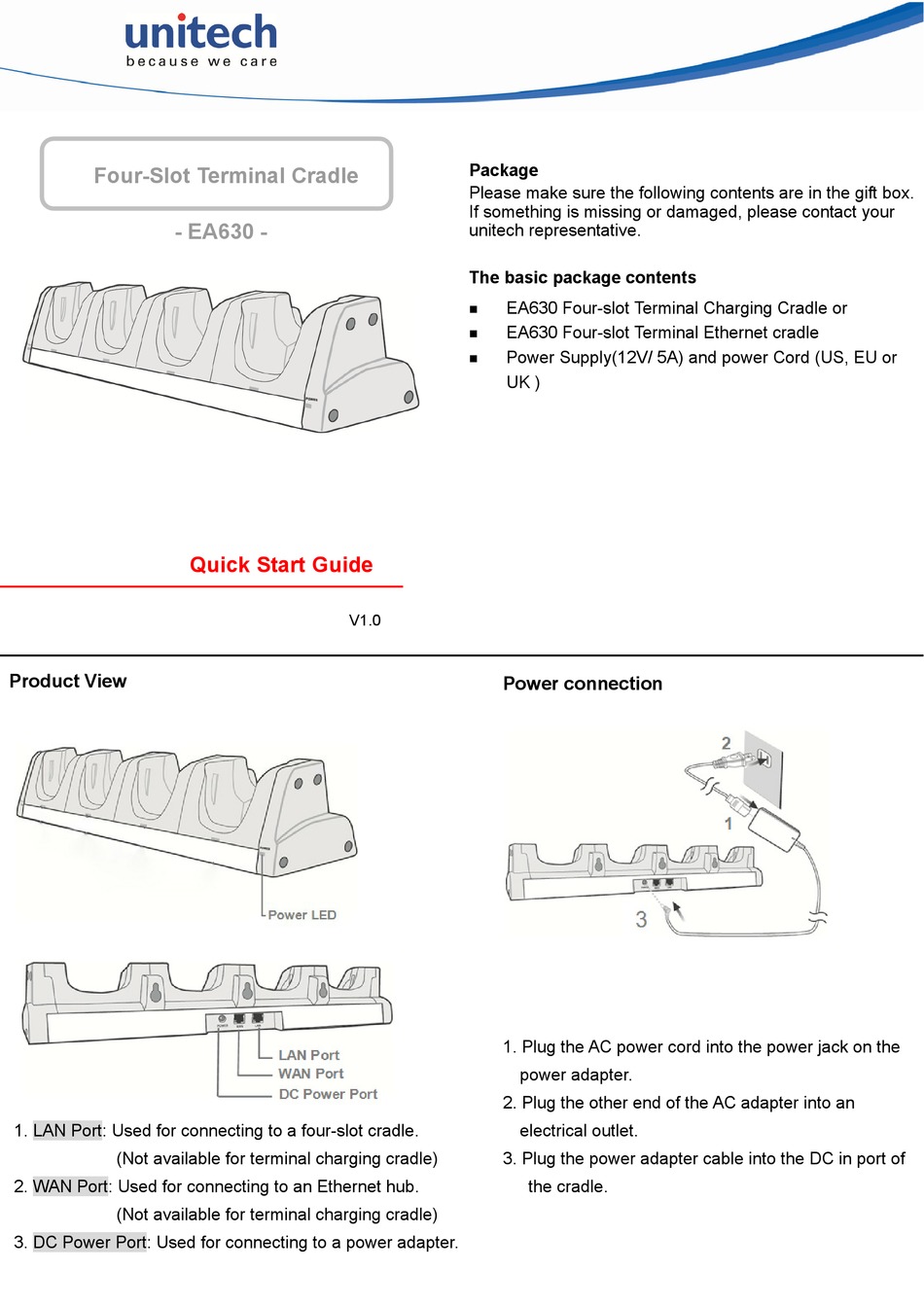

Unitech EA630 Series Quick Start Manual

Four-Slot Terminal Cradle
- EA630 -
Product View
Product View
1. LAN Port: Used for connecting to a four-slot cradle.
(Not available for terminal charging cradle)
2. WAN Port: Used for connecting to an Ethernet hub.
(Not available for terminal charging cradle)
3. DC Power Port: Used for connecting to a power adapter.
Quick Start Guide
V1.0
Package
Please make sure the following contents are in the gift box.
If something is missing or damaged, please contact your
unitech representative.
The basic package contents
EA630 Four-slot Terminal Charging Cradle or

EA630 Four-slot Terminal Ethernet cradle

Power Supply(12V/ 5A) and power Cord (US, EU or

UK )
Power connection
1. Plug the AC power cord into the power jack on the
power adapter.
2. Plug the other end of the AC adapter into an
electrical outlet.
3. Plug the power adapter cable into the DC in port of
the cradle.
