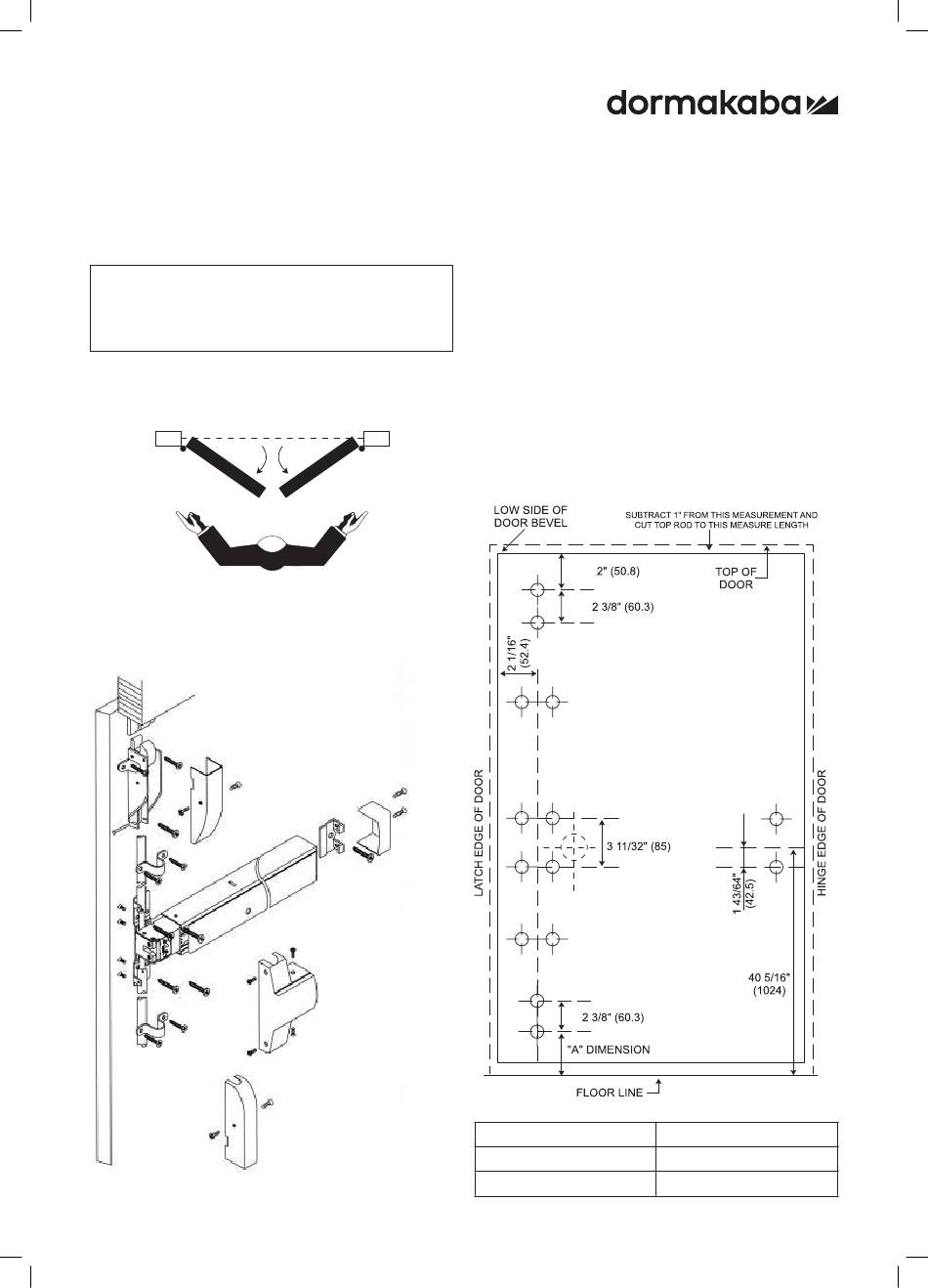

ED2227 Exit Device
Installation Instruction - Vertical Rod Rim
Before Installing
Check to be sure the exit device is the proper hand for
your door.
How to determine hand of door
Push Side
Left Hand
Reverse Door
Push Side
1
01
Mark Center Lines
Mark Center Lines on INSIDE of door. Establish the horizontal
center line of the device by drawing a line across the door
*40-5/16* (1024) above floor line.
Establish the top and bottom rod backset center line by drawing
a vertical line from the top to bottom of the door measuring
from the LOW SIDE of the DOOR BEVEL.
*Regularly furnished unless otherwise ordered.
Right Hand
Inside of LHRB is illustrated
Reverse Door
"A" Dimension
1 3/4" (44.4)
1 3/16" (30.2)
Installation
Surface Strike
Flush Strike
