Commercial Electric 60205161 Use And Care Manual

Item # 1008593134/ 1008555081/ 1008593144
Model # 60205161/ 60206161/ 60207161

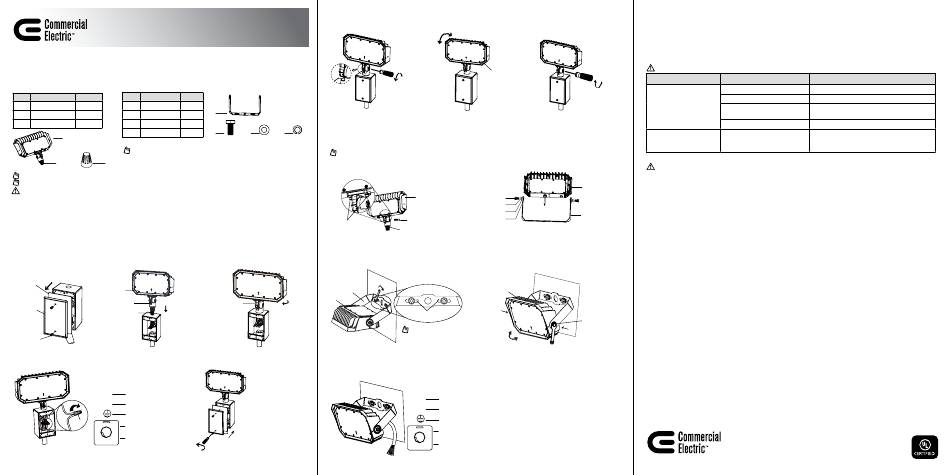

Use and Care GUIde
5In., 7In., 9In. Led FLOOd LIGHT
aDDiTiOnal ParTs aVaila blE TO PurCHasE

PaCKagE COnTEnTs

Part Description Quantity Part Description Quantity
A Fixture Body 1 AA Yoke Bracket 1
B Kunckle Bracket 1 BB Hex Bolts 2
C Wire nut 5 CC Flat Washers 4
DD Spring Washers 2
A
nOTe: The hardware kit for yoke mounting is sold as a separate
accessory. Visit www.HomeDepot.com for more information and to purchase.
B C
nOTe: Separate parts not shown to actual size.
nOTe: Keep your receipt and these instructions for proof of purchase.
WarnInG: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the
fuse or turn off the circuit breaker before removing an existing light fixture or installing the new one.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.

insTallaTiOn

Select a suitable location that can support the weight of the fixture. Determine the method for mounting the fixture before
drilling, based on the type of installation location.

KUNCKLE MOUNTINg

sTEP 1. sTEP 2.
Water-proof
gasket
A
B
Cover of
J-box
Wires
Screw
1. Use screw key to open the J-box. 2. Put the wires of lamp into the J-box.
sTEP 4. sTEP 5.
L Black
N White
green
C
Purple (DIM+)
DC (+)
Pink (DIM-)
DC (-)
0-10V Dimming
4. Use wire-nuts (C) to connect the wires of lamp and J-box.
5. Lock the J-box with screw key.
KUNCKLE MOUNTINg (CONTINUED)
sTEP 6.
Hex-key
Enlarged
detail
AA
6. Use hex-key to screw off the hex-
screw in knuckle bracket (B1).
BB CC DD

YOKE MOUNTINg

nOTe: The hardware kit for yoke mounting is sold as a separate accessory. Visit www.HomeDepot.com for more
information and to purchase.
sTEP 1.
Upper bracket
screws
1. Loosen screws to remove slip-fitter bracket (B).
sTEP 3.
sTEP 3.
AA
A
B
3. Screw up the knuckle bracket (B) into
3. Fasten the bracket (AA) to the wall with the generic
J-box.
fastener (not included).
sTEP 5.
5. Connect wires.
sTEP 7 sTEP 8.
A
7. Adjust the lamp (A) into suitable angle. 8. Use hex-key to screw up the hex-
crew. Installation completed.
sTEP 2.
BB
A
CC
DD
CC
Lower bracket
screws
B 2. Insert the hex bolts (BB) into the flat washer (CC), spring
washer (DD), bracket (AA) hole and flat washer (CC) successively,
then install the bolts kit in the screw holes on both sides of the
fixture body (A) but not fasten.
sTEP 4.
A
Φ 0.47in (12mm)
nOTe: The diameter of
fastener is not be greater than
Φ 0.47in (12mm).
4. Rotate the fixture (A) to the proper angle and fasten the hex
bolts (BB) on both sides of the fixture body (A).
L Black
N White
green
Purple (DIM+)
DC (+)
Pink (DIM-)
DC (-)
0-10V Dimming

CarE anD ClEaning

CaUTIOn: Before attempting to clean the tube and luminaire/light fixture, disconnect the power to the fixture by turning the
breaker off or removing the fuse from the fuse box. Clean with a soft, dry cloth. Do not use cleaners with chemicals, solvents, or
harsh abrasives. Do not use liquid cleaner on the LEDs, LED driver, or wiring.

TrOublEsHOOTing

Minor problems often can be fixed without the help of an electrician.
WarnInG: Before doing any work on the fixture, disconnect power to the light fixture.
Problem Possible Cause
The fixture will not light. The power is off.
The circuit breaker is off.
There is a bad connection.
There is a defective switch.
The fuse blows or the circuit The wires are crossed or the power
breaker trips when the light is wire is grounding out.
turned on.
WarnInG: Carefully read and understand the information given in this manual before beginning the assembly and installation.
Failure to do so could lead to electric shock, fire, or other injuries which could be hazardous or even fatal. • Ensure the electricity
to the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker. • To reduce the possibility of
serious injury, always take the proper precautions and unplug the fixture before moving or cleaning.
A
nOTICe: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
AA
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna, increase the separation between the equipment and the receiver, connect the equipment into an
outlet on a circuit different from that to which the receiver is connected, and consult the dealer or an experienced radio/TV. Changes or
modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

WarranTY

WHaT is COVErED
The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of five (5) years from
date of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service.
If this product is found to be defective, the manufacturer's only obligation, and your exclusive remedy, is the repair or replacement
of the product at the manufacturer's discretion, provided that the product has not been damaged through misuse, abuse, accident,
modifications, alterations, neglect, or mishandling.
WHaT is nOT COVErED
This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in anyway not in
accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result
of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or
BB
workmanship. This warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as
this is considered normal wear and tear.
The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a
particular purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not
be liable for any consequential or incidental loss or damage, including but not limited to any labor / expense costs involved in the
replacement or repair of said product.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HomeDepot.com.
Questions, problems, missing parts? Before returning to the store,
solution
Ensure the power supply is on.
Ensure the circuit breaker is in the on position.
Check to ensure proper wire connections are made.
Contact a qualified electrician.
Contact a qualified electrician.
Check the wire connections.
Contact a qualified electrician or call customer
service 1-877-527-0313.
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313 | HOMEDEPOT.COM
Retain this manual for future use.
