Model No. FSXD30-MS-4K-BZ
FSXD30-MS-4K-WH
USE AND CARE GUIDE

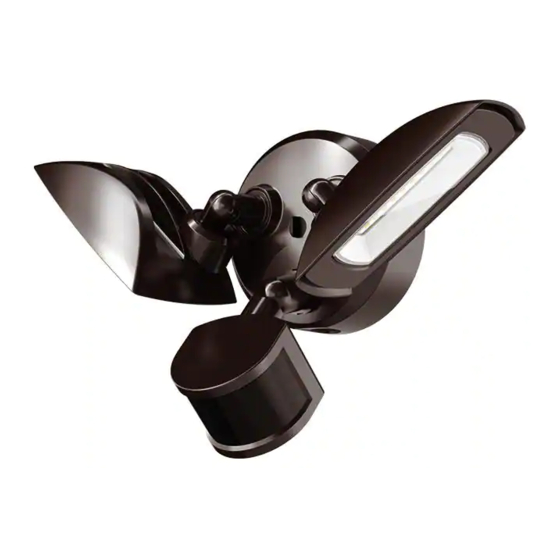

FUSION X DUO LED TWIN HEAD
FLOOD LIGHT
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commercial Electric FSXD30-MS-4K-BZ
Summary of Contents for Commercial Electric FSXD30-MS-4K-BZ
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents......2 Hardware Included......4 Safety Information......2 Installation........5 Pre-Installation......3 Operation ........8 Planning Installation......3 Care & Cleaning......10 Specifications........3 Troubleshooting......10 Tools Required........3 Warranty.......... 11 Package Contents......4 SAFETY INFORMATION IMPORTANT THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR... -
Page 3: Pre-Installation
PRE INSTALLATION PLANNING INSTALLATION Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture. SPECIFICATIONS 3000 Lumens Lumens (Light Output) -
Page 4: Package Contents
PRE INSTALLATION CONTINUED PACKAGE CONTENTS Part Description Quantity Light fixture Control sensor Mounting plate set screw (pre-installed) Mounting plate with gasket (pre-installed) Hanger wire for hands-free installation (pre-installed) Mounting screw cover plug HARDWARE KIT NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 5: Installation
INSTALLATION FOR BEST RESULTS ☐ Install light 8-15 feet above the ground. ☐ Do not mount fixture close to reflective surfaces such as windows, white walls, white surfaces and water. ☐ Do NOT wire to dimming switch. ☐ When mounting fixture, make sure the control sensor orientation is at the bottom Wall Mount Eave Mount... - Page 6 INSTALLATION CONTINUED INSTALL THE MOUNTING PLATE ☐ Align the holes on the mounting plate bracket (D) with the holes of the junction box. Use two #8 screws (AA) to attach the mounting plate bracket (D) to the junction box (fig 8). MAKE THE ELECTRICAL CONNECTIONS ☐...
- Page 7 INSTALLATION CONTINUED MOUNT THE LIGHT CAULK AROUND THE FIXTURE LIGHT FIXTURE ☐ Once wiring is complete, align the ☐ Caulk around the light fixture (A) and mounting screw hole in the center of the surface with silicone sealant (not fixture with the mounting screw hole in included).
-
Page 8: Operation
OPERATION CONTROL SENSOR OPERATING INSTRUCTIONS The control sensor on this product will turn on the light fixture when it detects motion. The motion sensing can be disabled for Dusk-to-Dawn operation using the built-in photosensor that automatically turns the light fixture on during night and off during daytime. - Page 9 OPERATION CONTINUED ☐ Aiming control sensor for best performance The 180-degree coverage of the motion sensor is measured side to side. Therefore, the sensor will better detect motion across the field of view (side-to-side), rather than motion coming straight at the sensor (in-and-out).
-
Page 10: Care & Cleaning
CARE AND CLEANING ☐ appearance, clean the light fixture with clear water and a soft, damp cloth only. ☐ Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints, solvents, or any other chemicals on this light fixture. They could cause a premature deterioration of the finish and may void the warranty. -
Page 11: Warranty
5-Year Limited Warranty This is a limited warranty offered by Commercial Electric for a period of five years from the date of purchase to its customers. Commercial Electric warrants to customers that the products will be free from defects in material and workmanship. The obligation of Commercial Electric under... - Page 13 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-844-584-3776 HOMEDEPOT.COM Retain this manual for future use.
