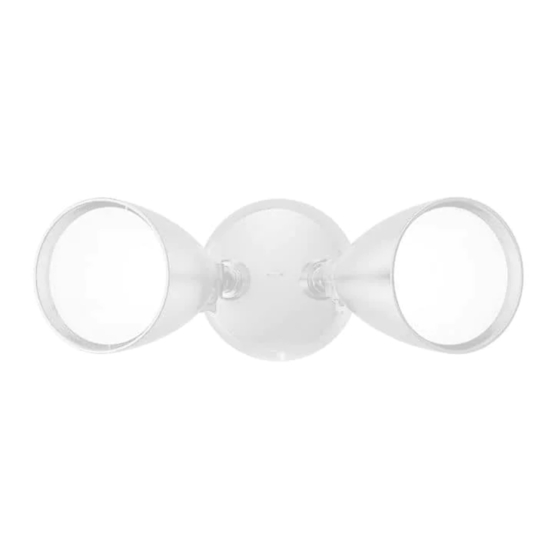

Tpar2 twin head flood light

Advertisement

Quick Links

Model No. TPAR2-PC-4K-BZ
TPAR2-PC-4K-WH
USE AND CARE GUIDE
TPAR2 TWIN HEAD
FLOOD LIGHT
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-844-584-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TPAR2-PC-4K-BZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commercial Electric TPAR2-PC-4K-BZ

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents......2 Hardware Included......4 Safety Information......2 Installation........5 Pre-Installation......3 Operation........9 Planning Installation......3 Care & Cleaning......10 Specifications........3 Troubleshooting......10 Warranty.......... 11 Tools Required........3 Package Contents........ 4 SAFETY INFORMATION IMPORTANT THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR WITH THE...
  • Page 3: Pre-Installation

    PRE INSTALLATION PLANNING INSTALLATION Before installing the light fixture, ensure that all parts are present. Compare parts with the Hardware Included and Package Contents sections. If any part is missing or damaged, do not attempt to assemble, install, or operate this light fixture. SPECIFICATIONS Lumens (Light Output) 1500 Lumens...
  • Page 4: Package Contents

    PRE INSTALLATION CONTINUED PACKAGE CONTENTS Part Description Quantity Light fixture Mounting plate tightening screw (pre-installed) Mounting plate bracket (pre-installed) Hanger wire for hands-free installation (pre-installed) HARDWARE KIT NOTE: Hardware not shown to actual size. Part Description Quantity #8-32 x 3/4" Philips head screw Wire nut Mounting plate with ground wire 10-24 x 5/4 Philips head screw...
  • Page 5: Installation

    INSTALLATION FOR BEST RESULTS Install light 8-15 feet above the ground. Do NOT wire to dimming switch. When mounting to a wall, make sure the fixture is 7 in. away from eave and 13 inches away from inside corner of the exterior wall (fig 2).
  • Page 6 INSTALLATION CONTINUED INSTALL THE HANG FIXTURE FROM MOUNTING MOUNTING PLATE PLATE TO THE BRACKET JUNCTION BOX For hands free mounting, place the hanger Align the slots on the mounting plate wire hook into the slot of the mounting plate bracket (C) with the holes of the junction bracket (C) to support the fixture while box.
  • Page 7 INSTALLATION CONTINUED MAKE THE ELECTRICAL CONNECTIONS If necessary, strip 3/8" of insulation from junction box and lighting fixture wires (fig 10). Connect wires by twisting the exposed wires together and using the wire nuts (BB). Ensure no loose wires. Connect lighting fixture black wire to junction box black wire (line), lighting fixture white wire to junction box white wire (common), the junction box ground...
  • Page 8 INSTALLATION CONTINUED MOUNT THE LIGHT CAULK AROUND THE FIXTURE LIGHT FIXTURE Once wiring is complete, align the Caulk around the back face of the light fixture mounting screw hole in the light shown in (fig 12) with silicone sealant fixture with the mounting screw hole (not included).
  • Page 9: Operation

    OPERATION DUSK TO DAWN MODE AUTOMATIC NIGHTTIME ON DUSK-TO-DAWN OPERATION Light fixture (A) includes integral photocell for dusk-to-dawn operation which DAYTIME OFF enables the light fixture to automatically turn ON when dark outside and turn OFF when the sun rises, thus saving you energy. Ensure the switch powering the light fixture is turned to the ON position and leave it ON at all times to ensure...
  • Page 10: Care & Cleaning

    CARE AND CLEANING appearance, clean the light fixture with clear water and a soft, damp cloth only. Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints, solvents, or any other chemicals on this light fixture. They could cause a premature deterioration of the finish and may void the warranty.
  • Page 11: Warranty

    YEAR LIMITED WARRANTY This is a limited warranty offered by Commercial Electric for a period of five years from the date of purchase to its customers. Commercial Electric warrants to customers that the products will be free from defects in material and workmanship. The obligation of...
  • Page 13 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-844-584-3776 HOMEDEPOT.COM Retain this manual for future use.
