Item #1003 939 900
Model #PWRF50-PC-4K-BZ
USE AND CARE GUIDE

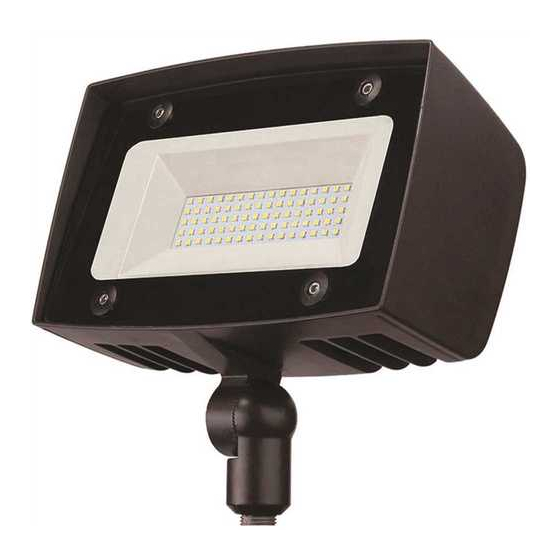

POWERFLOOD HIGH OUTPUT LED
ARCHITECTURAL FLOOD LIGHT
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
9 a.m. - 5 p.m., EST, Monday - Friday
1-844-548-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commercial Electric PWRF50-PC-4K-BZ
Summary of Contents for Commercial Electric PWRF50-PC-4K-BZ
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
-
Page 2: Table Of Contents
Table of Contents Safety Information .............2 Installation ..............5 Warranty..............2 Care and Cleaning .............8 Pre-Installation ............3 Troubleshooting ............8 Preparing for Installation ..........5 Safety Information IMPORTANT WARNING: Before installation or servicing, turn the power OFF at the circuit breaker or fuse. Place tape over THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE the circuit breaker switch and verify power is OFF at the WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND... -
Page 3: Pre-Installation
Warranty (continued) LIMITATION OF LIABILITY In no event shall the manufacturer be liable for indirect, consequential, incidental or special damages, or lost profits. The manufacturer is not liable for any claims or damage arising out of or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of the manufacturer products, or supply of any replacement parts that exceed the purchase price of the manufacturer products giving rise to a claim. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Photocell (light sensor) screw-on clear cap Wire nut PACKAGE CONTENTS B, E Part Description Quantity Light fixture Photocell lens 1/2 in. Swivel NPS threaded knuckle mount Knuckle mount lock nut Photocell (light sensor) screw-on black cap NOTE: The junction box cover plate is not provided in the box.
-
Page 5: Preparing For Installation
Preparing for Installation □ The fixture must be mounted using the Swivel Knuckle into a domed cover plate (not provided) on a junction box or via a landscape post (sold separately). □ When installing two fixtures on one switch, make sure the switch is rated for at least a 1A inductive load. - Page 6 Installation (continued) Making the electrical connections □ If necessary, strip 3/8 in. of insulation from the junction box or fixture (A) wires. □ Thread the wire through the domed cover plate 3/8 in. of the junction box (not provided) or landscape post (not provided).
- Page 7 Installation (continued) Securing the fixture and adjusting orientation □ Secure the fixture to the junction box or landscape post by inserting the threaded swivel knuckle mount (C) into the cover plate or landscape post. □ Place the knuckle mount lock nut (D) on the inside of the domed cover plate and tighten the fixture to the plate.
-
Page 8: Care And Cleaning
Operation (continued) Option 2: Switch controlled Switch controlled operation enables the light fixture to turn ON and OFF by flipping a switch that controls the electricity to the outlet powering the fixture. The light fixture will not turn ON and OFF automatically, but is manually controlled. - Page 9 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 9 a.m. - 5 p.m., EST, Monday-Friday 1-844-548-3776 HOMEDEPOT.COM Retain this manual for future use.
