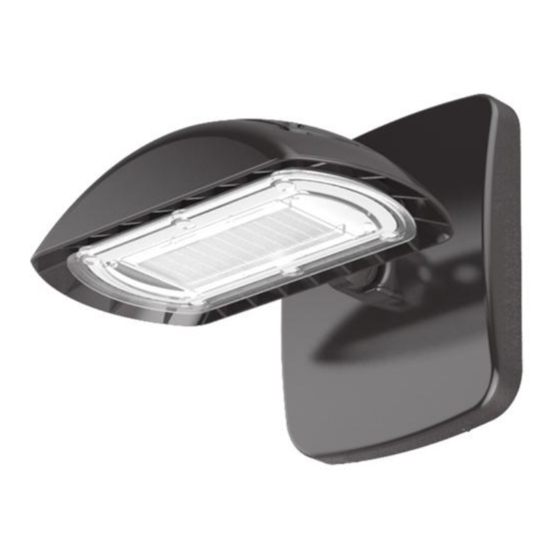

Commercial Electric FUSION FSN 15-4K-BZ Use And Care Manual

Commercial Electric FUSION FSN 15-4K-BZ Use And Care Manual

Led wallpack/flood light kit

Advertisement

Item #1003 939 902
1003 939 898
Model #FSN15-4K-BZ
FSN28-4K-BZ
USE AND CARE GUIDE
FUSION LED WALLPACK/FLOOD LIGHT KIT
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
9 a.m. - 5 p.m., EST, Monday - Friday
1-844-548-3776
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED
flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our
full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUSION FSN 15-4K-BZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commercial Electric FUSION FSN 15-4K-BZ

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED flood light. We strive to continually create quality products designed to enhance your home. Visit us online to see our...
  • Page 2: Table Of Contents

    Table of Contents Safety Information .............2 Installation ..............5 Warranty..............2 Operation..............10 Pre-Installation ............3 Care and Cleaning ...........10 Preparing for Installation ..........5 Troubleshooting ............10 Safety Information IMPORTANT WARNING: Risk of fire. Keep the light fixtures at least 3 in. (76 mm) from combustible materials. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE NATIONAL ELECTRICAL CODE AND CAUTION: Burn hazard.
  • Page 3: Pre-Installation

    Warranty (continued) LIMITATION OF LIABILITY In no event shall the manufacturer be liable for indirect, consequential, incidental or special damages, or lost profits. The manufacturer is not liable for any claims or damage arising out of or connected with the manufacture, sale, delivery, use, maintenance and repair or modification of the manufacturer products, or supply of any replacement parts that exceed the purchase price of the manufacturer products giving rise to a claim.
  • Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity #8-32 x 3/4 in. Philips mounting bracket screw Wire nut Allen key Butterfly nut for wall mount plate Lock washer Sealing gasket PACKAGE CONTENTS Part Description Quantity Light fixture 1/2 in.
  • Page 5: Preparing For Installation

    Preparing for Installation □ Install the light 8-20 ft. above the ground for wall applications or on the ground for flood application. □ The fixture can be mounted in multiple ways: □ Wall/Eave Mount: Using the wall/eave mounting base plate (C) and the universal junction box mounting plate (D) over a junction box.
  • Page 6 Installation (continued) Installing the wall/eave mounting base plate (OPTIONAL) Wall/Eave Mounting Base Plate Set Up On Standard junction boxes NOTE: The fixture comes with the knuckle stem and the (Fig. 1) wall/eave mounting base plate (C) is in the box. □...
  • Page 7 Installation (continued) Removing the Mounting Plate from Wall Base and Fixing it on the Wall/Eave (ONLY APPLICABLE FOR WALL/EAVE MOUNT IF USING THE BASE PLATE) Wall/Eave Mount using the Junction Box Mounting Plate □ Remove the universal junction box mounting plate (D) from the back of the fixture by loosening the bolts (E) using the allen key (CC).
  • Page 8 Installation (continued) 4A/B Making the electrical 3/8 in. connections □ If necessary, strip 3/8 in. of insulation from the junction box or fixture (A) wires. Wiring Instructions □ Connect the fixture black wire to the supply black wire ((+) line), and fixture white wire to the supply white wire ((-) common) by twisting the exposed wires together and using the wire Wall Mount...
  • Page 9 Installation (continued) Caulking around the light fixture □ Caulk around the mounting plate (D) and surface with silicone sealant (not included). □ If applicable, plug all unused holes and seal threads with silicone. Wall Mount Swivel Knuckle Flood Mount 7A/B Adjusting the light head and testing □...
  • Page 10: Operation

    Operation SWITCH CONTROLLED Switch-controlled manual operation allows the light fixture to turn ON and OFF by flipping a standard light switch. □ Once the fixture is installed, turn the power back on from the circuit breaker and switch. □ Flip the switch ON and OFF to ensure light functions properly.
  • Page 11 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 9 a.m. - 5 p.m., EST, Monday-Friday 1-844-548-3776 HOMEDEPOT.COM Retain this manual for future use.
