Quick setup guide
TDR sensor for continuous level and
interface measurement of liquids

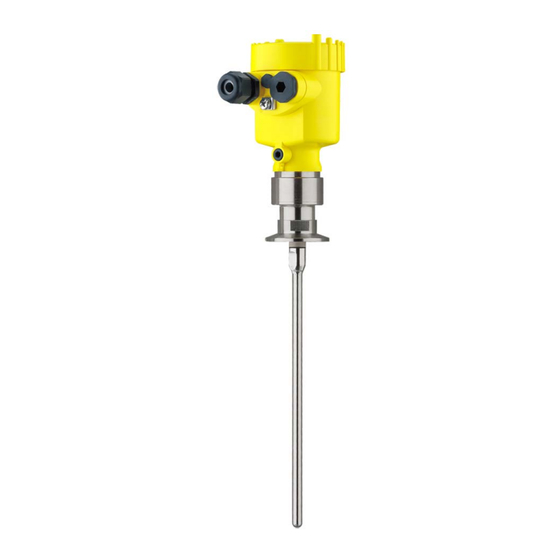

VEGAFLEX 83
Two-wire 4 ... 20 mA/HART SIL
Polished rod probe
With SIL qualification
Document ID: 47603

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAFLEX 83 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vega VEGAFLEX 83

Summary of Contents for Vega VEGAFLEX 83

  • Page 1 Quick setup guide TDR sensor for continuous level and interface measurement of liquids VEGAFLEX 83 Two-wire 4 … 20 mA/HART SIL Polished rod probe With SIL qualification Document ID: 47603...

  • Page 2: Table Of Contents

    Operating Instructions Manual as well as the Safety Manual that comes with instruments with SIL qualification. These manuals are available on our homepage. Operating instructions VEGAFLEX 83 - Two-wire 4 … 20 mA/ HART - Polished rod probe - With SIL qualification: Document- ID 44225 Editing status of the quick setup guide: 2023-05-23...

  • Page 3: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGAFLEX 83 is a sensor for continuous level measurement. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 4: Sil Qualification According To Iec 61508

    DIN EN ISO 14001. Please help us fulfil this obligation by observing the environmental instructions in this manual: • Chapter " Packaging, transport and storage" • Chapter " Disposal" VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 5: Product Description

    Alternatively, you can access the data via your smartphone: • Download the VEGA Tools app from the " Apple App Store" or the " Google Play Store" VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 6 2 Product description • Scan the QR-code on the type label of the device or • Enter the serial number manually in the app VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 7: Mounting

    Keep in mind that measurement all the way down to the tip of the probe may not be pos- sible. The exact value of the min. distance (lower blocking distance) is stated in chapter " Technical data" of the operating instructions. VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 8 The guided microwave principle requires a metallic surface on the process fitting. Therefore, in plastic vessels, etc., use an instru- ment version with flange (from DN 50) or place a metal sheet (ø > 200 mm/8 in) beneath the process fitting when screwing it in. Make sure that the plate has direct contact with the process fitting. When mounting rod or cable probes in vessels without metal walls, e.g. in plastic vessels, the measured value can be influenced by strong electromagnetic fields (emitted interference according to EN 61326: class A). In this case, use a probe with coaxial version. Fig. 3: Mounting in non-metallic vessel Flange Metal sheet Nozzle If possible, avoid nozzles. Mount the sensor flush with the vessel top. If this is not possible, use short nozzles with small diameter. VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 9 DN25 ... DN150 ≤ 150 mm ( 5.91") > DN150 ... DN200 ≤ 100 mm ( 3.94") Fig. 4: Mounting socket When welding the nozzle, make sure that the nozzle is flush with the vessel top. Fig. 5: Nozzle must be installed flush Unfavourable mounting 2 Nozzle flush - optimum mounting VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 10: Connecting To Power Supply

    7. Check the hold of the wires in the terminals by lightly pulling on them 8. Connect the shielding to the internal ground terminal, connect the external ground terminal to potential equalisation VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 11: Wiring Plan, Single Chamber Housing

    Display 6 7 8 Fig. 8: Connection compartment - double chamber housing Voltage supply, signal output For display and adjustment module or interface adapter For external display and adjustment unit Ground terminal for connection of the cable screening VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 12: Set Up With The Display And Adjustment Module

    The display and adjustment module is powered by the sensor, an ad- ditional connection is not necessary. Fig. 9: Installing the display and adjustment module in the electronics compart- ment of the single chamber housing VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 13: Parameter Adjustment

    5. A " False signal suppression" detects, marks and saves the false signals so that they are no longer taken into account for level measurement. We generally recommend a false signal suppres- sion. VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 14 1. In the menu " Additional settings", menu item " Damping" you can adjust the requested damping of the output signal. 2. Select the parameter of the current output and the output charac- teristics in the menu item " Current output". VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 15: Setup With Smartphone/Tablet (Bluetooth)

    The menu item " PIN" is only displayed if in the menu " Setup", " Lock/ Unlock adjustment" the adjustment is released. 2. Change sensor PIN Note: Bluetooth access can only be established if the current sensor PIN differs from the default setting " 0000". It is possible both when the VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...

  • Page 16: Connecting

    Bluetooth-capable instru- ments in the area. PC/Notebook Start PACTware and the VEGA project assistant. Select the device search via Bluetooth and start the search function. The device auto- matically searches for Bluetooth-capable devices in the vicinity.

  • Page 17: Supplement

    Ʋ for 9.6 V < U < 14 V ≤ 0.7 V (16 … 400 Hz) Ʋ for 18 V < U < 36 V ≤ 1 V (16 … 400 Hz) Load resistor Ʋ Calculation )/0.022 A Ʋ Example - with U = 24 V DC (24 V - 9.6 V)/0.022 A = 655 Ω VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 18 Notes VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 19 Notes VEGAFLEX 83 • Two-wire 4 … 20 mA/HART SIL...
  • Page 20 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2023 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
