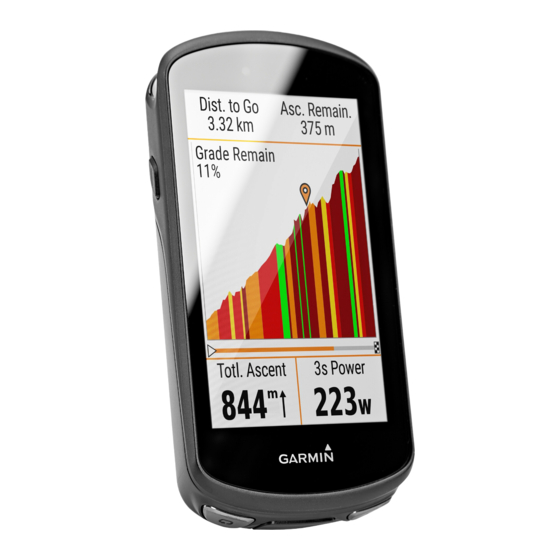

User Manual of Product 1: Garmin Edge 1030 Plus, GPS Cycling/Bike Computer, On-Device Workout Suggestions, ClimbPro Pacing Guidance and More User Manual of Product 2: Garmin 010-02376-00 Varia RTL515, Cycling Rearview Radar with Tail Light, Visual and Audible Alerts for Vehicles Up to 153...
Strava™ Segments......10 Getting Your Training Load Using the Strava Segment Explore Estimate......... 19 Widget..........10 Training Load Focus......20 Following a Segment From Garmin About Training Effect......20 Connect..........10 Recovery Time........21 Enabling Segments......10 Viewing Your Recovery Time..21 Racing a Segment......
Page 5
Wi‑Fi Settings........37 Course..........28 Creating a Course from a Recent Wireless Sensors......37 Ride............ 29 Following a Course From Garmin Putting On the Heart Rate Monitor..38 Connect..........29 Setting Your Heart Rate Zones..39 Tips for Riding a Course....29 About Heart Rate Zones....
Page 6
Changing the Device Language..56 Deleting Data Totals......46 Time Zones........56 Garmin Connect........46 Setting Up Extended Display Mode..56 Sending Your Ride to Garmin Exiting Extended Display Mode..56 Connect..........47 Device Information......57 Data Recording........47 Data Management........ 47 Product Updates........
Page 7
Appendix........64 Data Fields..........64 VO2 Max. Standard Ratings....68 FTP Ratings........... 69 Heart Rate Zone Calculations....69 Wheel Size and Circumference.... 70 Table of Contents...
Hold to turn the device on and off and lock the touchscreen. Select to mark a new lap. Select to start and stop the activity timer. Charge using an Edge external battery pack accessory. Electrical contacts NOTE: Go to buy.garmin.com to purchase optional accessories. Introduction...
Home Screen Overview The home screen gives you quick access to all the features of the Edge device. Select to go for a ride. Use the arrows to change your activity profile. Navigation Select to mark a location, search for locations, and create or navigate a course. Training Select to access your segments, workouts, and other training options.
3 Select an option to add your device to your Garmin Connect account: • If this is the first device you have paired with the Garmin Connect app, follow the on-screen instructions. • If you have already paired another device with the Garmin Connect app, from the menu, select Garmin Devices >...
Charging the Device NOTICE To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.
Installing the Standard Mount For the best GPS reception, position the bike mount so the front of the device is oriented toward the sky. You can install the bike mount on the stem or the handlebars. 1 Select a secure location to mount the device where it does not interfere with the safe operation of your bike. 2 Place the rubber disk on the back of the bike mount.
• If the handlebar diameter is 31.8 mm, use the thinner pad. 4 Place the handlebar connector around the rubber pad. 5 Replace and tighten the screw. NOTE: Garmin ® recommends tightening the screw so the mount is secure, with a maximum torque specification of 7 lbf-in.
NOTE: Garmin recommends tightening the screw so the mount arm is secure, with a maximum torque specification of 20 lbf-in. (2.26 N-m). You should check the tightness of the screw periodically.
The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position. TIP: For more information about GPS, go to www.garmin.com/aboutGPS. 1 Go outdoors to an open area.
8 Select to stop the activity timer. TIP: Before you save this ride and share it on your Garmin Connect account, you can change the ride type. Accurate ride type data is important for creating bike friendly courses. 9 Select Save Ride.
You can download Strava segments to your Edge 1030 Plus device. Follow Strava segments to compare your performance with your past rides, friends, and pros who have ridden the same segment. To sign up for a Strava membership, go to the segments widget in your Garmin Connect account. For more information, go to www.strava.com.
You can upload your activity data to your Garmin Connect account to view your segment position. NOTE: If your Garmin Connect account and Strava account are linked, your activity is automatically sent to your Strava account so you can review the segment position.
You can create custom workouts that include goals for each workout step and for varied distances, times, and calories. You can create workouts using Garmin Connect, and transfer them to your device. You can also create and save a workout directly on your device.
Following a Workout From Garmin Connect Before you can download a workout from Garmin Connect, you must have a Garmin Connect account (Garmin Connect, page 46). 1 Select an option: • Open the Garmin Connect app. • Go to connect.garmin.com. 2 Select Training > Workouts.
Training Plans You can set up a training plan in your Garmin Connect account and send the training plan workouts to your device. All scheduled workouts sent to the device appear in the training calendar. Using Garmin Connect Training Plans...
Starting an Interval Workout 1 Select Training > Intervals > Do Workout. 2 Select to start the activity timer. 3 When your interval workout has a warm up, select to begin the first interval. 4 Follow the on-screen instructions. When you complete all of the intervals, a message appears. Training Indoors The device includes an indoor activity profile where GPS is turned off.
FTP. For a more accurate rating, you can conduct a guided test. HRV stress test: The HRV (heart rate variability) stress test requires a Garmin chest heart rate monitor. The device records your heart rate variability while standing still for 3 minutes. It provides your overall stress level.
VO2 max. estimates are provided and supported by Firstbeat. You can use your Garmin device paired with a compatible heart rate monitor and power meter to display your cycling VO2 max. estimate.
Getting Your VO2 Max. Estimate Before you can view your VO2 max. estimate, you must put on the heart rate monitor, install the power meter, and pair them with your device (Pairing Your Wireless Sensors, page 42). If your device was packaged with a heart rate monitor, the device and sensor are already paired.
VO2 max. decline while exposed to high altitudes. Your Edge 1030 Plus device provides acclimation notifications and corrections to your VO2 max. estimate and training status when the temperature is above 22ºC (72ºF) and when the altitude is above 800 m (2625 ft.).
(Training Load Focus, page 20). Each feedback phrase, for example, "Highly Impacting VO2 Max." has a corresponding description in your Garmin Connect activity details. Aerobic Training Effect uses your heart rate to measure how the accumulated intensity of an exercise affects your aerobic fitness and indicates if the workout had a maintaining or improving effect on your fitness level.
Recovery Time You can use your Garmin device with wrist-based heart rate or a compatible chest heart rate monitor to display how much time remains before you are fully recovered and ready for the next hard workout. NOTE: The recovery time recommendation uses your VO2 max. estimate and may seem inaccurate at first. The device requires you to complete a few activities to learn about your performance.
Getting Your FTP Estimate The device uses your user profile information from the initial setup to estimate your functional threshold power (FTP). For a more accurate FTP value, you can conduct an FTP test using a paired power meter and heart rate monitor (Conducting an FTP Test, page 22).
Knowing your stress score can help you decide if your body is ready for a tough workout or yoga. TIP: Garmin recommends that you measure your stress score at approximately the same time and under the same conditions every day.
Select an option: • From your Edge device, select My Stats > Training Status > > Pause Training Status. • From your Garmin Connect settings, select Performance Stats > Training Status > > Pause Training Status. TIP: You should sync your device with your Garmin Connect account.
Navigation Navigation features and settings also apply to navigating courses (Courses, page 27) and segments (Segments, page 10). • Locations and finding places (Locations, page 25) • Planning a course (Courses, page 27) • Route settings (Route Settings, page 32) • Map settings (Map Settings, page 31) Locations You can record and store locations in the device.
Navigating to a Location 1 Select Navigation. 2 Select an option: • Select MTB Trail Navigation to navigate to a bike trail network. • Select Browse Map to navigate to a location on the map. • Select Search to navigate to a point of interest, city, address, intersection, or known coordinates. TIP: You can select to narrow your search area.
6 Select Courses You can send a course from your Garmin Connect account to your device. After it is saved to your device, you can navigate the course on your device. You can also create a custom course on your device.
Planning and Riding a Course You can create and ride a custom course. A course is a sequence of waypoints or locations that leads you to your final destination. 1 Select Navigation > Courses > Course Creator > Add First Location. 2 Select an option: •...
3 Select > Save Ride as Course. 4 Enter a name for the course, and select Following a Course From Garmin Connect Before you can download a course from Garmin Connect, you must have a Garmin Connect account (Garmin Connect, page 46).
Displaying a Course on the Map For each course saved to your device, you can customize how it appears on the map. For example, you can set your commute course to always display on the map in yellow. You can have an alternate course display in green.
Rerouting a Course You can choose how the device recalculates the route when you go off course. When you go off course, select an option: • To pause navigation until you get back on course, select Pause Navigation. • To choose from rerouting suggestions, select Re-route. NOTE: The first rerouting option is the shortest route back to the course and starts automatically after 10 seconds.
Select > Activity Profiles, select a profile, and select Navigation > Routing. Popularity Routing: Calculates routes based on the most popular rides from Garmin Connect. Routing Mode: Sets the transportation method to optimize your route. Calculation Method: Sets the method used to calculate your route.
Before you can enable incident detection on your device, you must set up emergency contact information in the Garmin Connect app. Your paired smartphone must be equipped with a data plan and be in an area of network coverage where data is available. Your emergency contacts must be able to receive text messages (standard text messaging rates may apply).
The Garmin Connect app does not contact emergency services on your behalf. When your Edge device with GPS enabled is connected to the Garmin Connect app, you can send an automated text message with your name and GPS location to your emergency contacts.
Recipients can view your live data on a Garmin Connect tracking page. Starting a GroupTrack Session Before you can start a GroupTrack session, you must have a smartphone with the Garmin Connect app paired to your device (Pairing Your Smartphone, page 3).
If the device detects motion, it sounds an alarm and sends an alert to your connected smartphone. Playing Audio Prompts on Your Smartphone Before you can set up audio prompts, you must have a smartphone with the Garmin Connect app paired to your Edge device.
Software updates: Your device downloads and installs the latest software update automatically when a Wi‑Fi connection is available. Workouts and training plans: You can browse for and select workouts and training plans on the Garmin Connect site. The next time your device has a Wi‑Fi connection, the files are wirelessly sent to your device.
1 Snap the heart rate monitor module onto the strap. The Garmin logos on the module and the strap should be right-side up. 2 Wet the electrodes and the contact patches on the back of the strap to create a strong connection between your chest and the transmitter.
Setting Your Heart Rate Zones The device uses your user profile information from the initial setup to determine your heart rate zones. You can manually adjust the heart rate zones according to your fitness goals (Fitness Goals, page 39). For the most accurate calorie data during your activity, you should set your maximum heart rate, resting heart rate, and heart rate zones.
NOTE: If you do not have this sensor, you can skip this task. TIP: Garmin recommends you secure your bike on a stand while installing the sensor. 1 Place and hold the speed sensor on top of the wheel hub.
Installing the Cadence Sensor NOTE: If you do not have this sensor, you can skip this task. TIP: Garmin recommends you secure your bike on a stand while installing the sensor. 1 Select the band size that fits your crank arm securely.
The values for the zones are default values and may not match your personal abilities. You can manually adjust your zones on the device or using Garmin Connect. If you know your functional threshold power (FTP) value, you can enter it and allow the software to calculate your power zones automatically.
(Adding a Data Screen, page 51). NOTE: The two data fields at the bottom of the screen can be customized. You can send the ride to the Garmin Connect app to view additional cycling dynamics data (Sending Your Ride to Garmin Connect, page 47).
You can customize the optional data fields (Adding a Data Screen, page 51). The Edge 1030 Plus device displays current adjustment values when the sensor is in adjustment mode. Using an eBike Before you can use a compatible eBike, such as a Shimano STEPS eBike, you must pair it with your device ™...
NOTE: History is not recorded while the timer is stopped or paused. When the device memory is full, a message appears. The device does not automatically delete or overwrite your history. Upload your history to Garmin Connect periodically to keep track of all your ride data. Viewing Your Ride 1 Select History >...
Record the events of your active lifestyle including runs, walks, rides, swims, hikes, triathlons, and more. You can create your free Garmin Connect account when you pair your device with your phone using the Garmin Connect app, or you can go to connect.garmin.com.
Sending Your Ride to Garmin Connect • Sync your Edge device with the Garmin Connect app on your smartphone. • Use the USB cable that came with your Edge device to send ride data to your Garmin Connect account on your computer.
Connect IQ Downloadable Features You can add Connect IQ features to your device from Garmin and other providers using the Connect IQ app. Data Fields: Allow you to download new data fields that present sensor, activity, and history data in new ways.
Downloading Connect IQ Features Using Your Computer 1 Connect the device to your computer using a USB cable. 2 Go to apps.garmin.com, and sign in. 3 Select a Connect IQ feature, and download it. 4 Follow the on-screen instructions. Profiles The Edge has several ways for you to customize the device, including profiles.
Updating Your Activity Profile You can customize ten activity profiles. You can customize your settings and data fields for a particular activity or trip. 1 Select > Activity Profiles. 2 Select an option: • Select a profile. • Select Create New to add or copy a profile. 3 If necessary, edit the name and color for the profile.
Adding a Data Screen 1 Select > Activity Profiles. 2 Select a profile. 3 Select Data Screens > Add New > Data Screen. 4 Select a category, and select one or more data fields. 5 Select 6 Select an option. •...
Setting Range Alerts If you have an optional heart rate monitor, cadence sensor, or power meter, you can set up range alerts. A range alert notifies you when the device measurement is above or below a specified range of values. For example, you can set the device to alert you when your cadence is below 40 RPM and over 90 RPM.
Auto Lap Marking Laps by Position You can use the Auto Lap feature to mark the lap at a specific position automatically. This feature is helpful for comparing your performance over different parts of a ride (for example, a long climb or training sprints). During courses, you can use the By Position option to trigger laps at all of the lap positions saved in the course.
Using Auto Pause You can use the Auto Pause feature to pause the timer automatically when you stop moving or when your speed drops below a specified value. This feature is helpful if your ride includes stop lights or other places where you need to slow down or stop.
Pair Smartphone: Connects your device with a compatible Bluetooth enabled smartphone. This setting allows you to use Bluetooth connected features, including LiveTrack and activity uploads to Garmin Connect. Smart Notifications: Allows you to enable phone notifications from your compatible smartphone.
Setting Up Extended Display Mode You can use your Edge 1030 Plus device as an extended display to view data screens from a compatible Garmin multisport watch. For example, you can pair a compatible Forerunner device to display its data screens on your Edge device during a triathlon.
From 0º to 45ºC (from 32º to 113ºF) Wireless frequency 2.4 GHz @ 15.35 dBm nominal Water rating IEC 60529 IPX7 The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Device Information...
After cleaning, allow the device to dry completely. The device withstands pressure equivalent to a depth of 10 m. For more information, go to www.garmin.com/waterrating. The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Device Information...
A build up of sweat and salt on the strap can decrease the ability of the heart rate monitor to report accurate data. • Go to www.garmin.com/HRMcare for detailed washing instructions. • Rinse the strap after every use. • Machine wash the strap after every seven uses.
Replacing the Speed Sensor Battery The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions. 1 Locate the circular battery cover on the front of the sensor. 2 Twist the cover counter-clockwise until the cover is loose enough to remove. 3 Remove the cover and the battery 4 Wait 30 seconds.
Replacing the Cadence Sensor Battery The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions. 1 Locate the circular battery cover on the back of the sensor. 2 Twist the cover counter-clockwise until the marker points to unlocked and the cover is loose enough to remove.
• Remove your device from the Garmin Connect app and the Bluetooth settings on your smartphone to retry the pairing process. • If you bought a new smartphone, remove your device from the Garmin Connect app on the smartphone you intend to stop using.
NOTE: Use Ethylene Propylene Diene Monomer (EPDM) replacement bands only. Go to http://buy.garmin.com, or contact your Garmin dealer. Getting More Information • Go to support.garmin.com for additional manuals, articles, and software updates. • Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts. Troubleshooting...
Appendix Data Fields Some data fields require optional accessories to display data. %FTP: The current power output as a percentage of functional threshold power. %Heart Rate Reserve: The percentage of heart rate reserve (maximum heart rate minus resting heart rate). %Max Heart Rate: The percentage of maximum heart rate.
Page 72
Cadence Bars: A bar graph showing your current, average, and maximum cycling cadence values for the current activity. Cadence Graph: A line graph showing your cycling cadence values for the current activity. Calories: The amount of total calories burned. Calories to Go: During a workout, the remaining calories when you are using a calorie target. Course Pt.
Page 73
Heart Rate to Go: During a workout, the amount you are above or below the heart rate target. Heart Rate Zone: The current range of your heart rate (1 to 5). The default zones are based on your user profile and maximum heart rate (220 minus your age).
Page 74
Odometer: A running tally of distance traveled for all trips. This total does not clear when resetting the trip data. Pedal Smoothness: The measurement of how evenly a rider is applying force to the pedals throughout each pedal stroke. Performance Condition: The performance condition score is a real-time assessment of your ability to perform. Platform Center Offset: The platform center offset.
VAM: The average ascent velocity for the current activity. Watts/kg: The amount of power output in watts per kilogram. Workout Comparison: A graph comparing your current effort to the workout target. Workout Step: During a workout, the current step out of the total number of steps. VO2 Max.
FTP Ratings These tables include classifications for functional threshold power (FTP) estimates by gender. Males Watts per Kilogram (W/kg) Superior 5.05 and greater Excellent From 3.93 to 5.04 Good From 2.79 to 3.92 Fair From 2.23 to 2.78 Untrained Less than 2.23 Females Watts per Kilogram (W/kg) Superior...
Wheel Size and Circumference Your speed sensor automatically detects your wheel size. If necessary, you can manually enter your wheel circumference in the speed sensor settings. The tire size is marked on both sides of the tire. This is not a comprehensive list. You can also measure the circumference of your wheel or use one of the calculators available on the internet.
Page 84
Turning Off the Varia RDU Device and Radar Device ....4 Other Compatible Devices ..........4 Pairing the Radar Device with a Compatible Edge Device ..4 Pairing the Radar Device with a Compatible Garmin Watch ..5 Device Information............5 Charging the Device ..............5 Device Care ................
• If you are using the Varia RDU, pair the devices (The Varia RTL515/RTL516 and Your Radar Display Unit, page • If you are using another Garmin device, pair the devices (Other Compatible Devices, page Tips for Installing the Device...
• Select Network Options > Test Lights to verify that each • You can view radar device battery details. light in your network is set up correctly (Testing the Light You can download the Varia app from the app store on your Network, page smartphone.
Edge Device This task is for the Edge 1030, 830, 530, and 130 devices. If your device is not listed, go to buy.garmin.com. Place the bike mount on the bike stem. Bring the Edge device within range (3 m) of the sensor.
You can charge the device by plugging the USB cable into a bike light status icons appear solid. Garmin approved AC adapter with a standard wall outlet or a USB port on your computer. Charging a fully depleted battery Pairing the Radar Device with a Compatible...
Varia RTL515/RTL516 Specifications /express). Battery type Rechargeable, built-in lithium-ion battery This provides easy access to these services for Garmin devices: RTL515 battery life Up to 6 hr. in solid mode • Software updates Up to 8 hr. in peloton mode •...
The status LED turns red while updating the • Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement software parts. • Check the USB cable, connectors, and ports for damage. • Turn both devices off, and turn them back on.
