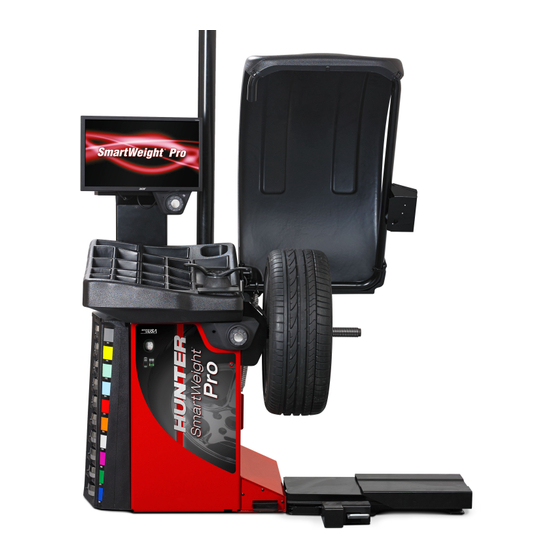

SmartWeight
Pro Operations
Manual
Form 7641-T, 11-22 | Supersedes 7641-T, 09-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartWeight Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter SmartWeight Pro

Summary of Contents for Hunter SmartWeight Pro

  • Page 1 ® SmartWeight Pro Operations Manual Form 7641-T, 11-22 | Supersedes 7641-T, 09-21...

  • Page 2: Table Of Contents

    4.2. Remove Wheel From Balancer ......................9 4.3. Centering Check ..........................9 4.4. Print Summary ........................... 9 4.5. Hunter Help Video Player ........................9 5. Maintenance and Calibration ........................10 5.1. Auto Calibration ..........................10 5.2. Cleaning the Console ........................10 5.3.

  • Page 3: Owner Information Form

    _____ _____ Installation & Training Acknowledgement: I, the undersigned, do hereby acknowledge that my Hunter Engineering Wheel Balancer has been installed & is operational. I also acknowledge that the above technicians have been trained to my satisfaction in those areas of safety & operation as indicated above.

  • Page 4: Getting Started

    This manual assumes the technician has already been trained in basic balancing procedures. 2.1. Corporate Information Hunter Engineering Company Address: 11250 Hunter Drive, Bridgeton, MO 63044 USA Phone: 314-731-3020 Web: www.hunter.com 2.2. For Your Safety 2.2.1.
  • Page 5 ® SmartWeight Pro Operations Manual To reduce the risk of electrical shock, do not use on wet surfaces or expose to rain. Verify the appropriate electrical supply circuit is the same voltage and amperage ratings as marked on the equipment before operating.
  • Page 6 ® SmartWeight Pro Operations Manual 2.2.6. Balancer Power Source Precaution The is intended to operate from a power source that will apply 230VAC +10% / -15%, 1 phase, 10 amp 50/60 Hz power. The power cable includes NEMA 20 amp plug, L6-20P, between the supply con- ductors of the power cord.
  • Page 7 “OFF,” press the “O” side of the ON/OFF switch. 2.2.10. Equipment Specifications Only a Hunter Factory-Authorized Representative should perform installation. This equipment contains no operator serv- iceable parts. All maintenance and repairs must be referred to a qualified Hunter Service Representative. Table 1. Equipment Specifications Electrical...

  • Page 8: Smartweight ® Pro Main Screen

    ® SmartWeight Pro Operations Manual ® 3. SmartWeight Pro Main Screen 1. Clip Weight Plane 6. SmartWeight® Menu Button 2. Tape Weight Plane 7. Imbalance & Couple Force Display 3. Context Sensitive Menu 8. SmartWeight Savings Total 4. Wheel Assembly Display 9.

  • Page 9: Operation

    4.4. Print Summary From the main balance screen, select “Print” → “Vehicle Summary”. The Vehicle Summary screen will be displayed. 4.5. Hunter Help Video Player On main balancer screen, touch Help → Launch Video Player button. Select balancer topic from video menu.

  • Page 10: Maintenance And Calibration

    ® SmartWeight Pro Operations Manual 5. Maintenance and Calibration 5.1. Auto Calibration The balancer utilizes automatic calibration procedure. Once the balancer is calibrated at installation time, no further operator input is required. 5.2. Cleaning the Console To maintain a brand new appearance of the display, clean with soft cloth regularly. Please remove stubborn stains with soft cleaner rather than strong cleaners such as diluting agent, benzene or corrosive cleaner as they may damage the display.

  • Page 11: Warranty Information

    (6) months. In case of any warranty claim, it will be necessary to contact your local authorized Hunter Service Representative. To have an item considered for warranty, it must be returned to Hunter Engineering Company for inspection and evaluation. This must be done on a freight prepaid basis.
  • Page 12 Develop the skills and Knowledge to excel hunter.com/training Hunter Engineering Company leads Based on Hunter’s know-how and All Hunter Training classes are led the under-vehicle service equipment industry-leading technology, Hunter by ASE-certified instructors and all industry & accepts the responsibility...
