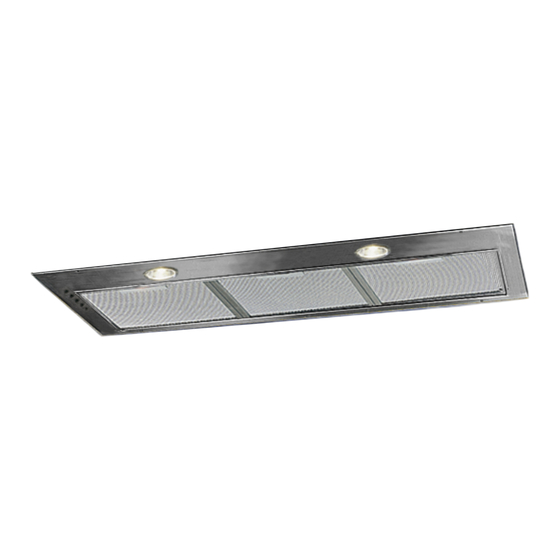

  • Page 1 CAN75.2SS Canopy hood...
  • Page 2 User Manual for your Baumatic CAN75.2SS 75 cm Canopy Hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

  • Page 3: Table Of Contents

    Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood Using your Baumatic cooker hood 9 - 10 Before first use To use your cooker hood 9 - 10 Cleaning your Baumatic cooker hood Maintenance 11 –...

  • Page 4: Environmental Note

    Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.
  • Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood been disconnected...

  • Page 8: Specifications Of Your Cooker Hood

    2 x CFM1 Carbon filters for air recirculation mode DK5 1 Metre length Ducting Kit 125 mm Ø DK10 3 Metre length Ducting Kit 125 mm Ø with flat channelling included All of the optional extras are available from the Baumatic Spares Department.

  • Page 9: Using Your Baumatic Cooker Hood

    Using your Baumatic cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.

  • Page 10: Cleaning Your Baumatic Cooker Hood

    IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE...

  • Page 11: Maintenance

    The grease filter o Your cooker hood includes grease filters which help to absorb grease particles to protect your kitchen & furniture from greasy residues. o These metallic filters may become flammable if it becomes saturated with this greasy residue. o To prevent this fire hazard, the filters should be cleaned regularly.

  • Page 12: Changing A Light Bulb

    o Refit the grease filters once they have dried. o IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood. Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 13: Fitting The Carbon Filters

    o Use a screwdriver to remove the glass cover that sits over the bulb. Unclip the light bulb that needs to be replaced and insert a new G4 20W (max) bulb. Then replace the glass cover. o IMPORTANT: Defective bulbs should be replaced immediately. o If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance.

  • Page 14: Installation

    2) Press the carbon filter against one end of the motor. 3) Turn the carbon filter through a 90° angle, until you feel it click into place. o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor.

  • Page 15: Electrical Connection

    Electrical connection YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION. o If not supplied the power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp. o The cooker hood’s power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

  • Page 16: Before Beginning Installation

    Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.

  • Page 17: Installing Your Cooker Hood

    Installing your cooker hood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. PLEASE TURN PAGE UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES. o We recommend that at two people install this hood. o Your cooker hood should only be fitted into the underside of a kitchen unit.
  • Page 18 IMPORTANT: If you are going to connect your cooker hood to external ducting, then you must complete the steps listed in the “Connecting to external ducting” section before carrying on with the rest of the installation (this information can be found on page 19). 3) Make a hole in the inside of the kitchen unit for the electrical cable to feed through.

  • Page 19: Connecting To External Ducting

    The discharge outlet should have a cross section of at least 150 cm² (please note that the ducting hose is not supplied with the appliance but one can be obtained from the Baumatic Spares Department). o The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend.

  • Page 20: Extraction Mode Or Recirculation Mode

    check that the appliance is operating correctly by selecting each speed and switching the light bulbs on and off. Extraction mode or recirculation mode? IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE.

  • Page 21: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the power supply and whether you have selected any of the fan speeds.
  • Page 22 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 23: Contact Details

    United Kingdom Czech Republic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Průmyslová zóna Sever 696 6 Bennet Road, 460 11 Liberec 11 Reading, Berkshire Czech Republic RG2 0QX United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900...
