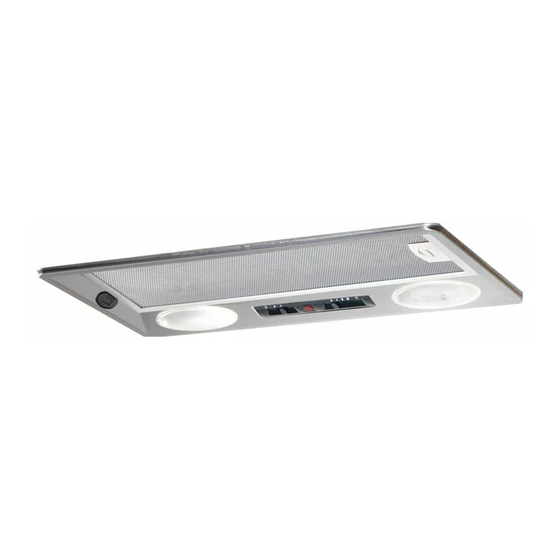

Baumatic CAN52.2ME Instruction Manual

Canopy cooker hood
Hide thumbs

Advertisement

Quick Links

Download this manual
CAN52.2ME
Canopy cooker hood

Advertisement

loading
Need help?

Need help?

Do you have a question about the CAN52.2ME and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic CAN52.2ME

Summary of Contents for Baumatic CAN52.2ME

  • Page 1 CAN52.2ME Canopy cooker hood...
  • Page 2 User Manual for your Baumatic CAN52.2ME Canopy cooker hood NOTE This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

  • Page 3: Table Of Contents

    Contents 1. Contents 2. Environmental note 3. Alternative Methods Of Extraction 4. Installation - Ducted Out 5. Installation – Recirculating 6. Operating Your Extractor 7. Care & Cleaning 8. Electrical Connections 9. Not Working Properly? 10. Contact details This appliance complies with all relevant legal safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.

  • Page 4: Environmental Note

    Environmental note The packaging materials that Baumatic uses are environmentally friendly and can be recycled. Please discard all packaging material with due regard for the environment.

  • Page 5: Alternative Methods Of Extraction

    (Suitable 125 mm diameter ducting kits may be purchased from the Baumatic Spares Department). Ducting your extractor means that your appliance does not require a charcoal filter. (Fig. 1).
  • Page 6 1. Extraction Via Ducting (cont.) Before you think about fixing, it's as well to give careful consideration to the power connection. It is vital that the supply cable should be well shielded from your grill, hob or oven. If it isn't, heat from any one of these sources may damage the cable insulation and give rise to a fire risk.
  • Page 7 When there is no easy access to an outside wall, the extractor can easily be adapted to clean air, polluted by cooking smells, by the use of a charcoal filter. This can be purchased from the Baumatic Spares Department under reference CFM1. Remember that the appliance cannot be used in re-circulation mode without the use of a charcoal filter.

  • Page 8: Operating Your Extractor

    Operating Your Extractor The light can be switched on or off regardless of fan / motor operation to illuminate the cooking area. The extractor fan has three speed settings for light, medium or heavy extraction of cooking vapours. The different levels of extraction are numbered I, II & III and can also be recognised by the changes in noise level of the extractor fan when operating.

  • Page 9: Electrical Connections

    Electrical Connections IMPORTANT: ENSURE THAT THE ELECTRICITY SUPPLY IS SWITCHED OFF BEFORE CONNECTING. Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet with at least 3mm contact separation, and preferably with a pilot lamp. (The fuse must have a 3 amp fuse rating).

  • Page 10: Not Working Properly

    Baumatic Service Department. IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Technical Department on telephone number (0118) 933 6933. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
  • Page 11 Czech Republic Baumatic CR spol s.r.o. Amperova 495 46215, Librec United Kingdom Czech Republic Baumatic Ltd., Baumatic Buildings, +420 800 185 263 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Slovak Republic Baumatic Slovakia, s.r.o. Sales Telephone Skultetyho 1...
